8820SFM2-02 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 8820SFM2-02

8820SFM2-02: DescriptionMonitor TEE DC Block, 500MHz Min, 2500MHz Max, 0.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size89KB，2 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric View All

8820SFM2-02 Overview

Monitor TEE DC Block, 500MHz Min, 2500MHz Max, 0.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE

8820SFM2-02 Parametric

Parameter Name	Attribute value
Maker	Cobham Semiconductor Solutions
Reach Compliance Code	unknown
Other features	SMA-F; SMA-M
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	100 V
Maximum insertion loss	0.5 dB
JESD-609 code	e4
Maximum operating frequency	2500 MHz
Minimum operating frequency	500 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	MONITOR TEE DC BLOCK
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.4

Preview

Download Datasheet

View All

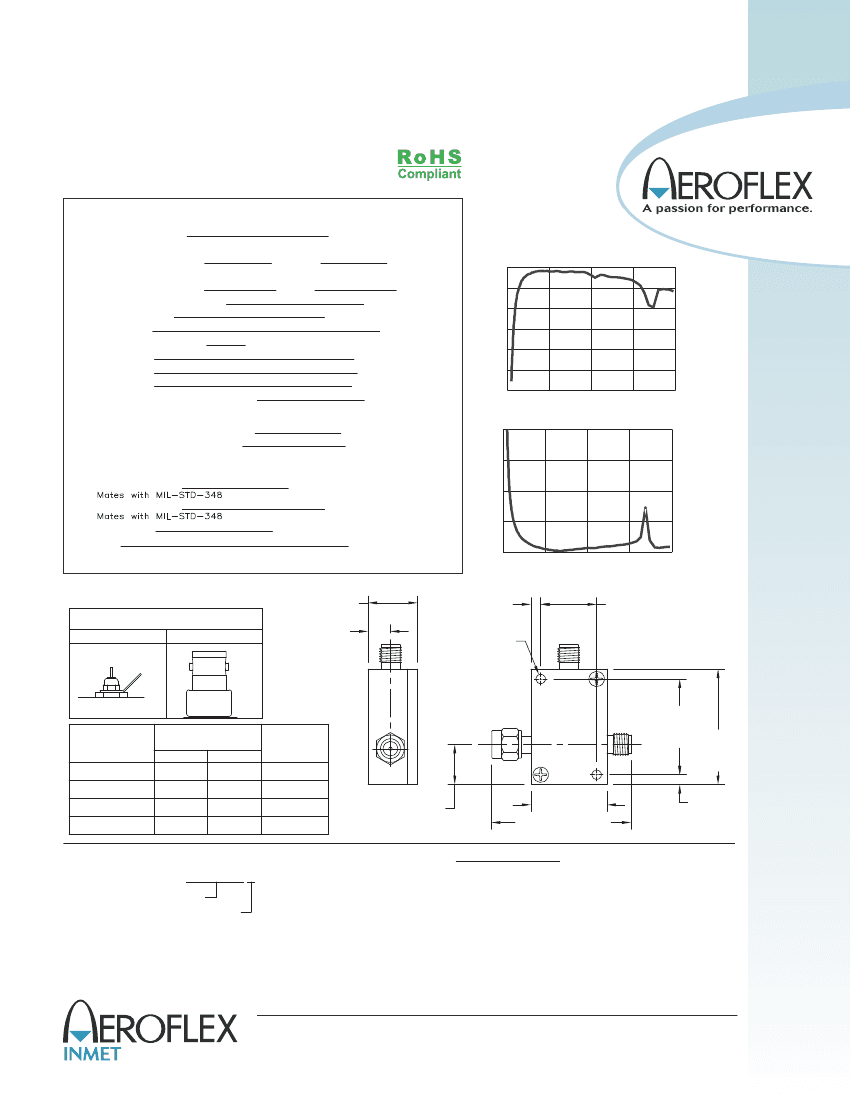

BIAS TEES

SMA, 500 MHz - 2.5 GHz, 100 Volts / 7 AMPS

SPECIFICATIONS:

Models: 8820SMFX-02, 8820SFFX-02, 8820SMMX-02, 8820SFMX-02

Electrical:

Frequency Range

500 MHz - 2.5 GHz

Insertion Loss

Maximum

Typical

0.50 dB

500 MHz - 2.5 GHz

0.25 dB

VSWR

Typical

Maximum

1.25:1

1.40:1

500 MHz - 2.5 GHz

Isolation (RF to Bias Port)

> 20dB Typ.

3dB Bandwidth

100 MHz - 3.7 GHz

Impedance

50 Ohms

Bias-Path Resistance

0.008 Ohms Typ., 0.01 Ohms Max.

DC Voltage

100 VDC Max.

7 Amps Max.

DC Current

RF Power

50 Watts Max.

Current Rating vs Temperature

See Graph

Typical performance from

100 MHZ - 3.7 GHz

INSERTION LOSS vs. FREQUENCY

-0.5

Insertion Loss (dB)

-1

-1.5

-2

-2.5

-3

Frequency (GHz)

Environmental

Operating Temperature Range

Storage Temperature Range

-55°C to +105°C

-60°C to +90°C

VSWR vs. FREQUENCY

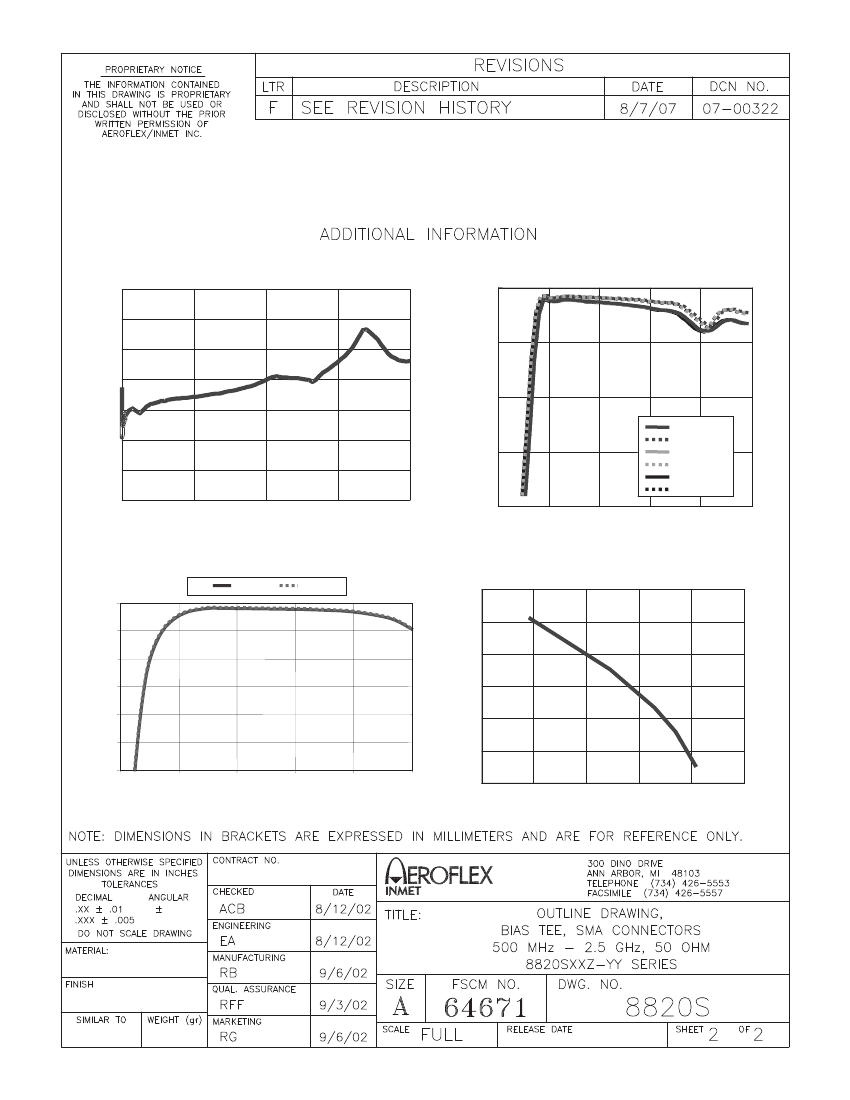

Mechanical:

VSWR

SMA Connectors

BNC Connectors

Conductors

Body

Passivated Stainless Steel

Nickel Plated Brass

Gold Plated Beryllium Copper

Aluminum with

Chemical Conversion Coating

Frequency (GHz)

DC Input Connector Options

Solder Post, X=1

BNC Female, X=3

.55 [13.97]

Max.

.250 [6.35]

.110 [2.79]

2X Ø.106±.006

[Ø2.69±0.15]

THRU

.625 [15.87]

DC Input

(SMA Female Conn.)

Option X = 2

AC + DC

Port

Connector

Overall

Model

Configuration Port

Length

Numbers

AC + DC

Max.

Male

Female 1.77 [44.96]

8820SMFX-YY

AC Port

1.070

[27.18]

1.29

[32.77]

8820SFFX-YY

8820SMMX-YY

8820SFMX-YY

Female

Male

Female

Female 1.67 [42.42]

Male 1.92 [48.77]

Male

1.77 [44.96]

.45 [11.43]

.85 [21.59]

Overall Length

Ordering Examples:

Model Number:

8820SFF2-02

500 MHz - 2.5 GHz, SMA Fem/Fem

SMA Female DC Connector Type

Model Number:

8820SMF1-02

500 MHz - 2.5 GHz, SMA Male/Fem

Solder Post DC Connector Type

.110

[2.79]

HOW TO ORDER:

Model Number:

8820SZZX-02

Base Number

DC Connector Type

1 = Solder Post

2 = SMA Female Conn.

3 = BNC Female Conn.

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design, specifications are subject to change without notice. Contact factory for technical

specifications before purchasing and/or use.

8820S: REV F

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com
