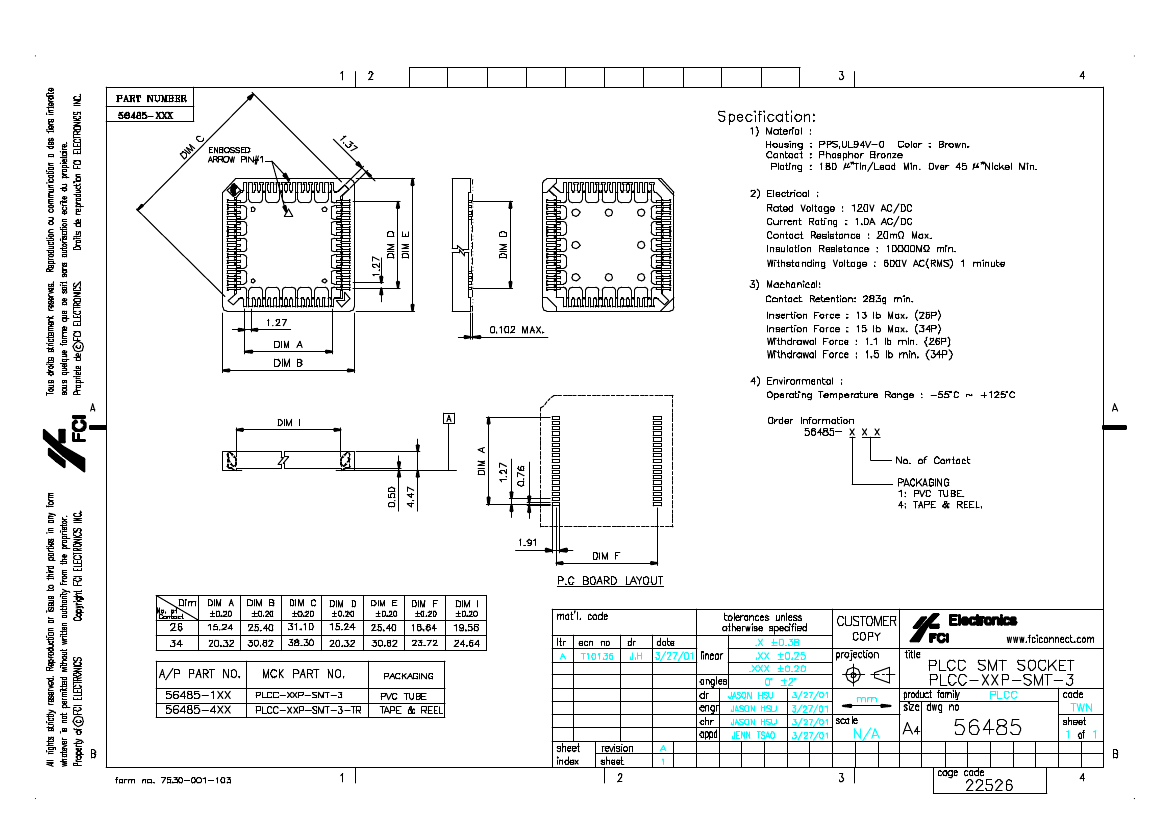

Preview

56485-434: DescriptionIC Socket, PLCC34, 34 Contact(s); CategoryThe connector socket; File Size95KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

56485-434 Overview

IC Socket, PLCC34, 34 Contact(s)

56485-434 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	94V-0, SURFACE MOUNT SOCKET
body width	1.213 inch
subject depth	0.176 inch
body length	1.213 inch
Contact to complete cooperation	TIN LEAD (180) OVER NICKEL
Contact completed and terminated	TIN LEAD (180) OVER NICKEL
Contact material	P-CUSN
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PLCC34
Dielectric withstand voltage	840VAC V
Shell material	POLYPHENYLENE SULFIDE
Insulation resistance	10000000000 Ω
JESD-609 code	e0
Manufacturer's serial number	56485
Installation method	STRAIGHT
Number of contacts	34
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

Preview

Download Datasheet

View All

56485-434 Related Products

	56485-434	56485-426	56485-134	56485-126
Description	IC Socket, PLCC34, 34 Contact(s)	IC Socket, PLCC26, 26 Contact(s)	IC Socket, PLCC34, 34 Contact(s)	IC Socket, PLCC26, 26 Contact(s)
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	94V-0, SURFACE MOUNT SOCKET	94V-0, SURFACE MOUNT SOCKET	94V-0, SURFACE MOUNT SOCKET	94V-0, SURFACE MOUNT SOCKET
body width	1.213 inch	1 inch	1.213 inch	1 inch
subject depth	0.176 inch	0.176 inch	0.176 inch	0.176 inch
body length	1.213 inch	1 inch	1.213 inch	1 inch
Contact to complete cooperation	TIN LEAD (180) OVER NICKEL	TIN LEAD (180) OVER NICKEL	TIN LEAD (180) OVER NICKEL	TIN LEAD (180) OVER NICKEL
Contact completed and terminated	TIN LEAD (180) OVER NICKEL	TIN LEAD (180) OVER NICKEL	TIN LEAD (180) OVER NICKEL	TIN LEAD (180) OVER NICKEL
Contact material	P-CUSN	P-CUSN	P-CUSN	P-CUSN
current rating	1 A	1 A	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PLCC34	PLCC26	PLCC34	PLCC26
Dielectric withstand voltage	840VAC V	840VAC V	840VAC V	840VAC V
Shell material	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
JESD-609 code	e0	e0	e0	e0
Manufacturer's serial number	56485	56485	56485	56485
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	34	26	34	26
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Base Number Matches	-	1	1	1
