Features
●
●
●
●
●
●
●
●
●
●
Single Output up to 25A
Dual Outputs Total Power up to 100W
Input/Output 1.6kVDC Isolation
Adjustable Output Voltage
Under-Voltage Lockout
No Minimum Load
Industry Standard Footprint
Fixed Operating Frequency
Halt Tested
Compact 61.0 x 57.91 x 12.7mm Package
High Efficiency to 90%
INNOLINE
DC/DC-Converter
RP100-
S_DI
Series
100 Watt
Isolated
Single
&
Dual Output
Selection Guide
Part
Number
Input
Voltage
(VDC)
36 – 75
36 – 75
36 – 75
36 – 75
36 – 75
Input
Voltage
(VDC)
36 – 75
36 – 75
Output
Voltage
(VDC)
1.8
2.5
3.3
5
15
Output
Voltage
V1 / V2
(VDC)
5 / 3.3
5 / 2.5
3.3 / 2.5
Output
Current
(A)
25
25
25
20
6.66
Output
Current
I1 / I2
(A)
20 / 25
20 / 25
25 / 25
Line
Load
Regulation Regulation
(mV)
(mV)
4
5
7
10
30
Line
Regulation
V1 / V2
(mV)
25 / 16.5
25 / 12.5
16.5 / 12.5
6
8
10
15
45
Input Efficiency
(9)
Current
(8)
(A)
%
1157
1608
2022
2480
2507
86
87
90
90
90
Single Output
RP100-481.8S
RP100-482.5S
RP100-483.3S
RP100-4805S
RP100-4815S
Part
Number
Dual Output
RP100-483.305DI
RP100-482.505DI
Load
Input Efficiency
Regulation Current
(8) (9)
V1 / V2
(mV)
(A)
%
25 / 16.5
25 / 12.5
16.5 / 12.5
2.39
2.45
2.44
87
85
85
RP100-482.53.3DI 36 – 75
Notes:
1. Maximum output deviation is 10% inclusive of remote sense. If remote sense is not being used,
the +Vsense should be connected to its corresponding +Vout and likewise the -Vsense should be connected
to its corresponding -Vout.
2. Single: Measured with a 1µF M/C and a 10µF T/C.
Dual: For each outputs.
3. An external filter capacitor is required for normal operation.
The capacitor should be capable of handing 1A ripple current for 48V models.
RECOM suggest: Nippon chemi-con KMF series, 220µF/100V, ESR 90m
Ω
.
4. Single: The negative / positive logic and length are optional ( see table ).
The pin voltage is referenced to negative input.
Dual: The ON/OFF control function. There are positive logic ( standard ) and negative logic ( option ).
The pin voltage is referenced to negative input.
To order negative logic ON/OFF control add the suffix-N. ( Ex:RP100-483.305I/N )
5. BELLCORE TR-NWT-000332. Case I: 50% Stress, Temperature at 40°C.
( Ground fixed and controlled environment )
6. Heat sink is optional and P/N: 7G-0021, 7G-0022, 7G-0023, 7G-0024.
7. The RP100 meets level A and level B conducted emissions only with external components connected before
the input pin to the converter.
8. Maximum value at nominal input voltage and full load.
9. Typical value at nominal input voltage and full load.
The dual efficiency test condition:
RP100-483.305DI @ 5V/12A and 3.3V/12A
RP100-482.505DI @ 5V/12A and 2.5V/16A
RP100-482.53.3DI @ 3.3V/18A and 2.5V/16A
10. BASEPLATE GROUNDING: Base-plate should be grounded at one of four screw bolts prior to operation.
11. The converter is provided by basic insulation.
12. “N” for Negative remote ON/OFF.
N
13. “P” for Positive remote ON/OFF.
P
www.recom-international.com
July-2006
195
INNOLINE
DC/DC-Converter
Specifications (refer to the standard application circuit, Ta: 25°C)
Input Voltage Range
Over-Voltage Lockout Start-up Voltage
Over-Voltage Lockout Shuntdown Voltage
Unde-Voltage Lockout Start-up Voltage
Unde-Voltage Lockout Shuntdown Voltage
Input Filter (Note 3)
Input voltage variation
Input Surge Voltage 100ms max
Start up time
Input Reflected-Ripple Current
(5Hz to 20Hz, 12µH Source inpedance)
Remote ON/OFF (Note 4)
Single (Positive logic)
Single (Negative logic)
Dual (Positive logic)
Dual (Negative logic)
Continuous Output Power
Output Voltage Accuracy (full load and nominal Vin)
Output Voltage Adjustment (Note 1)
Minimum Load
Line Regulation
Load Regulation
low line to high line at full load
Single 0% to 100%full load
Dual 0% to 100% full load
Dual for each Outputs
36-75VDC
Dual
Dual
Single
Dual
Single
Dual
dv/dt
Single
RP100-S_DI
Series
48V nom.
76.5V typ.
78.5V typ.
34V typ.
35V typ.
32V typ.
33V typ.
L-C type
5V/ms max
(Complies with ETS300 132 part4.4)
100VDC
25ms typ.
20mAp-p
Nominal Vin and constant resistive load Single
Single
ON=Open or 3.0V < Vr < 15V,
OFF=Short or 0V < Vr < 1.2V,
ON=Short or 0V < Vr < 1.2V,
OFF=Open or 3.0V < Vr < 15V,
ON=Open or 3.0V < Vr < +Vin,
OFF=Short or Vr < 1.2V,
ON=Short or 3.0V < Vr < +Vin,
OFF=Open or Vr < 1.2V.
Single
Dual
Single
Dual
I
IN
=50µA max.
I
IN
=1mA max.
I
IN
=1mA max.
I
IN
=50µA max.
100W max.
±1.5%
±1.0%
+10%, -20%
±10%
0%
See table
See table
10% of Vout
100mVp-p
±0.02%/ºC
200µs
115% ~ 130% of Vout
3.0V
3.9V
6.2V
110% ~ 140% of Iout Rated
Hiccup, Automatic recovery
up to 90%
Continued next page
Remote Sense (Note 1)
Ripple and Noise 20MHz bandwidth (Note 2)
Temperature Coefficient
Transient Response Recovery Time (25% load step change)
Over Voltage Protection threshold (Hiccup)
Single & Dual
2.5V
3.3V
5V
Over Current Protection threshold
Short Circuit Protection
Efficiency (at nominal input voltage, full load)
196
July-2006
www.recom-international.com
INNOLINE
DC/DC-Converter
Specifications (refer to the standard application circuit, Ta: 25°C)
Isolation Voltage
Input to Output
Input to Case
Output to Case
Single
Dual
Single
Dual
RP100-S_DI
Series
1600VDC min.
1000VDC min.
1000VDC min.
10 MΩ min.
10 GΩ min.
2500pF max.
1500pF max.
300KHz typ.
Single
Dual for Base-plate
-40ºC to +100ºC
110°C
105°C
-55°C to +125°C
95%
MIL-STD-810D
10 ~ 55Hz 2G, 3minutes period, 30minutes analog
EN55022 (Note 7)
EN55022 (Note 7)
EN55022
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
Dual
X, Y and Z
Level A
Level B
Level A
Perf. Criteria2
Perf. Criteria2
Perf. Criteria2
Perf. Criteria2
Perf. Criteria2
Non-conductive black plastic
Aluminum base-plate
Dual
Single
Dual
Single
Dual
Silicon (UL94-V0)
55g
105g
3
2000 x 10 hours
3
1004 x 10 hours
Isolation Resistance
Isolation Capacitance
Operating Frequency
Operating Base-plate Temperature Range ( Note 6 )
Over Temperature Protection
Storage Temperature Range
Humidity max., Non-condensing
Thermal Shock
Vibration
Conducted Emissions
Radiated Emisssions
ESD
Radiated Immunity
Fast Transient
Surge
Conducted Immunity
Case Material
Base material
Potting material
Weight
MTBF ( Note 6 )
www.recom-international.com
July-2006
197
INNOLINE
Characteristics
DC/DC-Converter
RP100-S_DI
Series

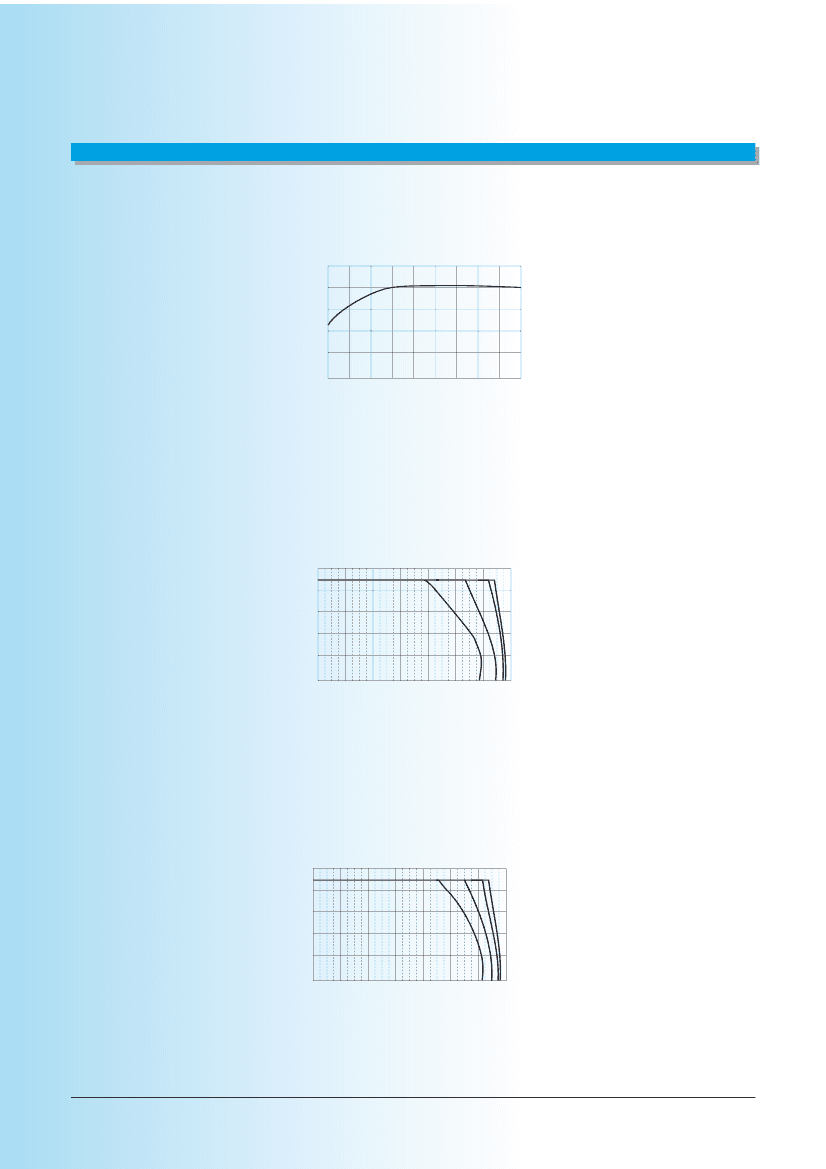

Efficiency vs Output Load
100
90
80
Efficiency (%)
70
60
50
10
20
30
40
50
60
70
80 90 100
Output Power (%) Ta=25°C
48V Input Without Heatsink
110
90
70
1.) LFM590
2.) LFM400
3.) LFM200
4.) LFM20
Output Power (%)
50
30
10
-40
-20
0
20
40
60
1
2
34
80
100
Ambient Temperature (°C)
48V Input With Heatsink (7G-0022)
110
90
70
1.) LFM590
2.) LFM400
3.) LFM200
4.) LFM20
Output Power (%)
50
30
10
-40
-20
0
20
40
60
1
2
34
80
100
Ambient Temperature (°C)
198
July-2006
www.recom-international.com
INNOLINE
DC/DC-Converter

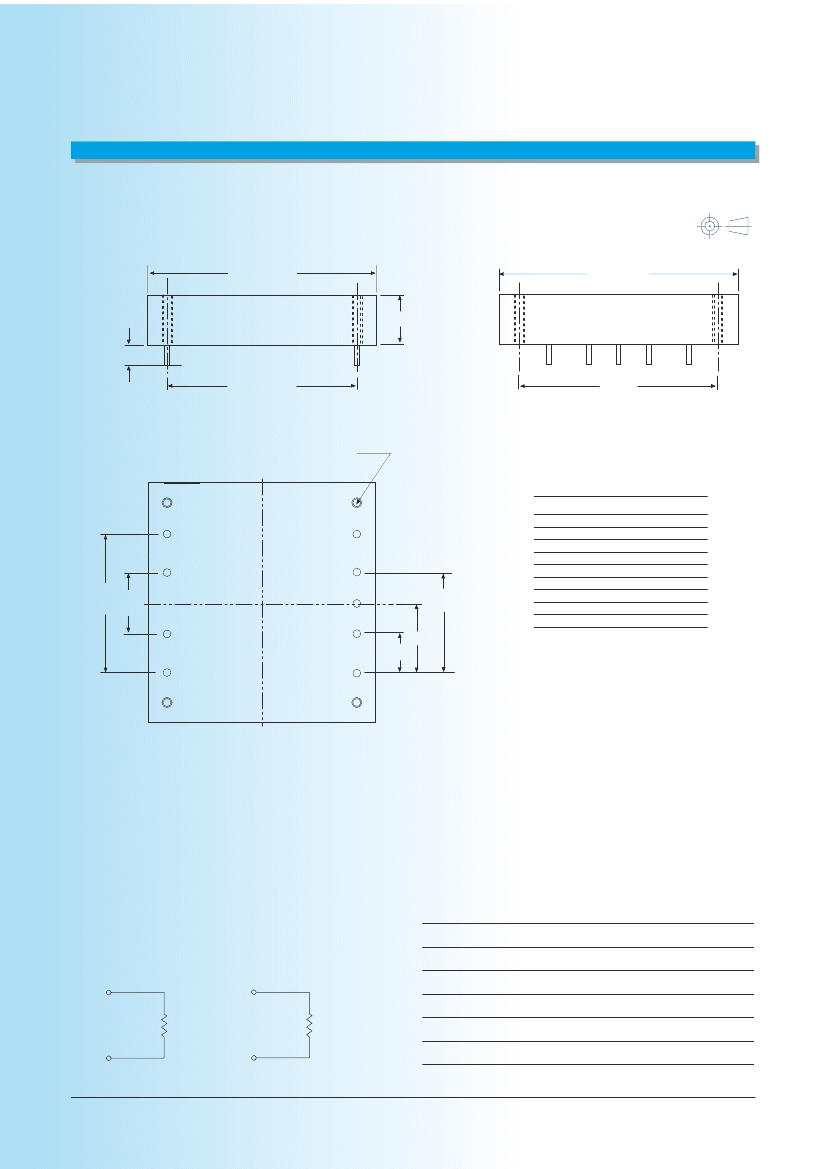

Package Style and Pinning (mm)
RP100-S_DI
Series
3rd angle
projection
Single Output
57.91
60.96
12.70
5.08
48.26
Side View
50.80
4xM3 x 0.5 ( Note 10)
Pin Connections
Pin #
Function
1
–Vin
2
Case
3
Remote ON/OFF
4
+Vin
5
–Vout
6
–Vsense
7
Trim
8
+Vsense
9
+Vout
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
Pin pitch tolerance 0.35mm
Pin Ø
1.016 mm
1.016 mm
1.016 mm
1.016 mm
2.032 mm
1.016 mm
1.016 mm
1.016 mm
2.032 mm
1
2
35.56
15.24
3
4
5
6
7
8
9
17.78
10.16
25.40
Bottom View
External Output Trimming
Output can be externally trimmed by using the method
shown below.
Product Options Table
Option
Negative remote ON/OFF logic, 0.20” pin length (standard)
Negative remote ON/OFF logic, 0.145” pin length
Negative remote ON/OFF logic, 0.11” pin length
L
K
P
S
M
Suffix
7
Trim Up
R
U
6
Trim Down
R
D
Positive remote ON/OFF logic, 0.20” pin length
Positive remote ON/OFF logic, 0.145” pin length
Positive remote ON/OFF logic, 0.11” pin length
8
7
Example: RP100-483.3S/P
www.recom-international.com
July-2006
199
