17DE Series
Crimp Type
RoHS Compliant
FEATURE
●
Connector for crimp-wiring equipped with crimp-type press-contacts (compatible with AWG 22 to 30)
●
Number of contacts : 9, 15, 25 and 37
●
Ni-plated metal shell surface; beat-process to plug-connector shell
●
Connection of cable and plug can be shielded by a metalize-finished hood, improving resistance against
EMI.
Ｊ
17DE
SPECIFICATION
Voltage Rating
Current Rating
Dielectric Withstanding Voltage
Insulation Resistance
Contact Resistance
Wire Accommodation
Temperature
300V AC (r.m.s.)
3A/Contact
1,000V AC (r.m.s.) for 1 minute
1,000MΩ min. at 500V DC
20mΩ max.
Stranded wire of AWG22, 24, 26, 28, 30
Outer diameter of insulator : φ0.8 to φ1.4
－25℃ to ＋85℃
MATERIAL/FINISH
P/N
Block
Shell
Contact
Eyelet
MATERIAL/FINISH
PBT resin/(UL94V-0) color black
Steel/Nickel Plating
Copper alloy/Gold over Nickel plating
Brass/Nickel Plating
1
●
●
17DE Series
Unit : mm

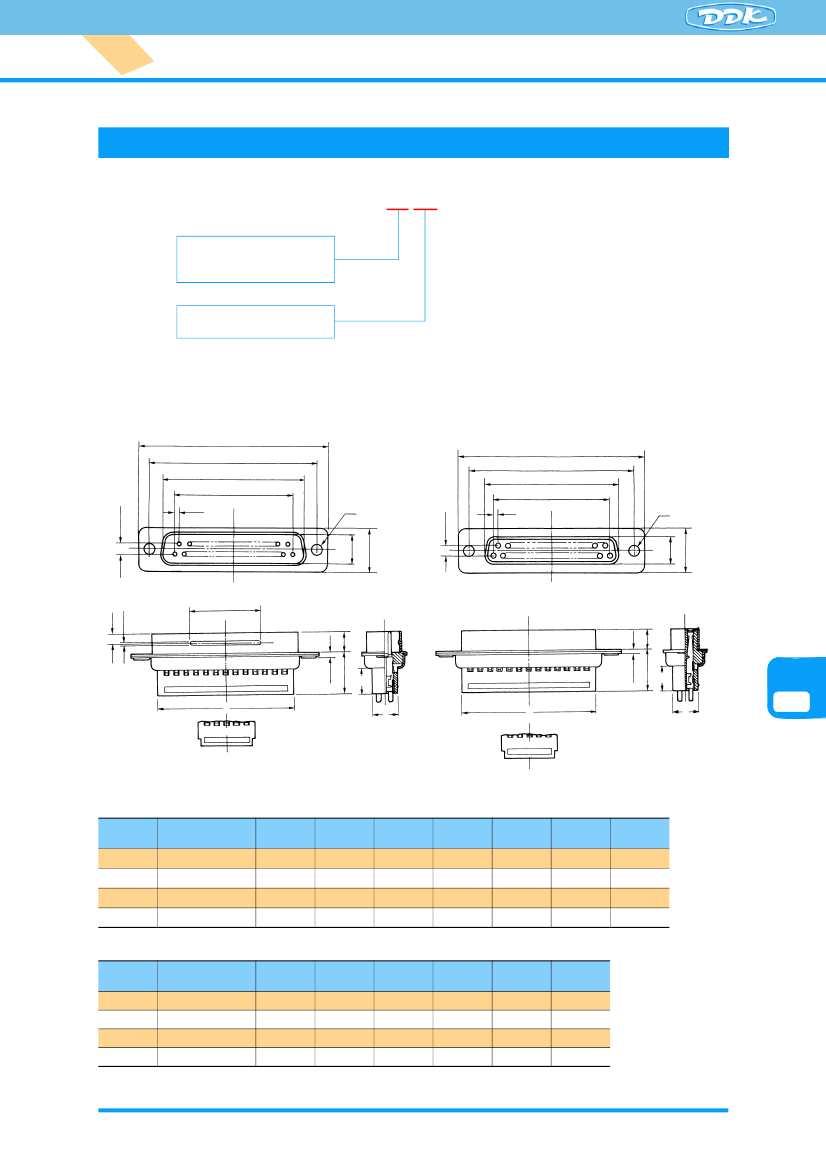

■ Crimp-Type Connector
17DE-13250-C
CONNECTOR STYLE
13 : Socket connector
23 : Pin connector
NO.OF.CONTACTS
09, 15, 25, 37
17DE-23□□0-C
A
B
C
D
2.84
E
2.84
φ3.1 HOLE
8.25
12.4
17DE-13□□0-C
A
B
C
D
E
φ3.1 HOLE
12.4
7.8
1.5
11.9
6.1
F
3
1
11.9
5.9
7
7
G
7
7
Ｊ
17DE
G
Shape of 9-contacts
1.5
Shape of 9-contacts
No. of
Contacts
9
15
25
37
P/N
17DE-23090-C
17DE-23150-C
17DE-23250-C
17DE-23370-C
A
30.7
39.0
52.9
69.2
B
24.99
33.32
47.04
63.50
C
16.80
25.12
38.84
55.30
D
10.98
19.20
33.12
49.68
E
(1.37)
(1.37)
(1.38)
(1.38)
F
8
12
20
20
G
16.0
24.4
38.1
54.5
No. of
Contacts
9
15
25
37
P/N
17DE-13090-C
17DE-13150-C
17DE-13250-C
17DE-13370-C
A
30.7
39.0
52.9
69.2
B
24.99
33.32
47.04
63.50
C
16.30
24.65
38.35
54.80
D
10.98
19.20
33.12
49.68
E
(1.37)
(1.37)
(1.38)
(1.38)
G
16.0
24.4
38.1
54.5
2
●
●
17DE Series
Unit : mm

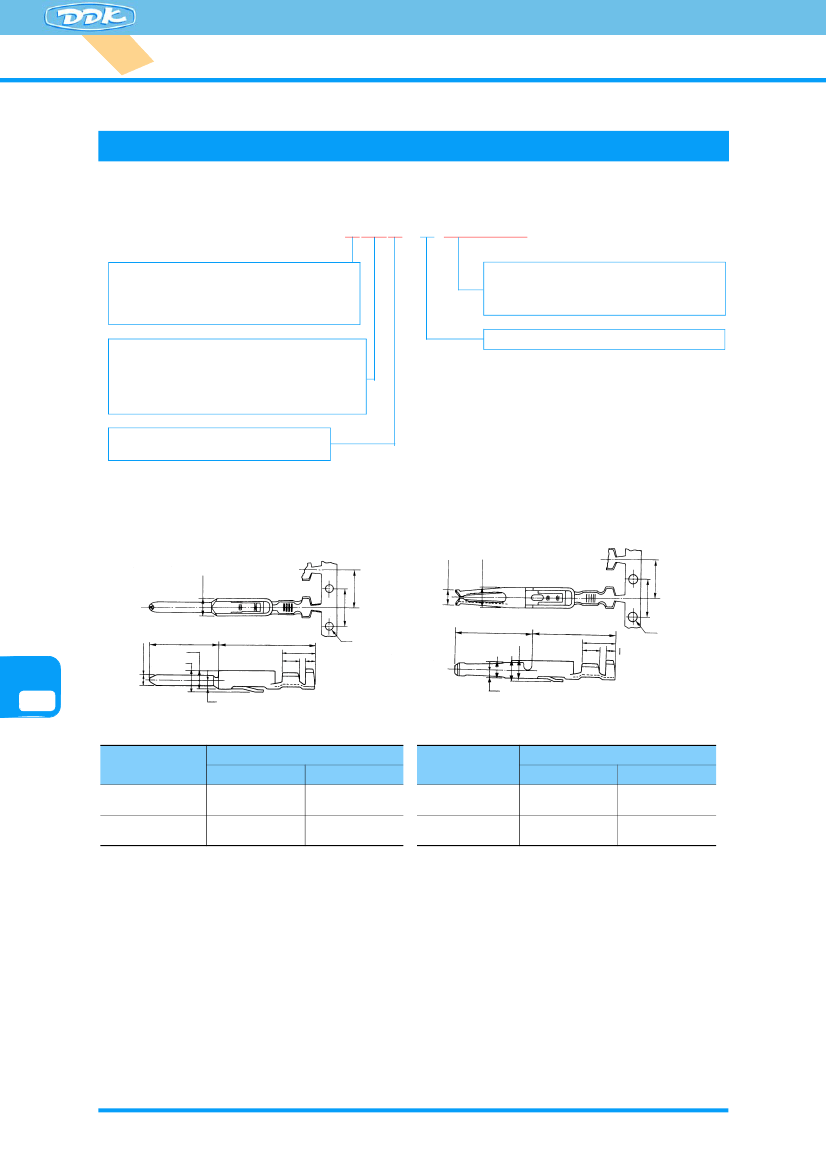

■ Crimp-Type Contact
17D-203PCR(R10000)
CONTACT PLATING
2 : Mating area : Gold (0.4μm) over Nickel Plating
Crimp area : Gold Flash over Nickel Plating
3 : Gold Flash over Nickel Plating
APPLICABLE WIRE
03 : AWG26½30 (standard wire)
Outer diameter of insulator : φ0.8½φ1.2
04 : AWG22½24 (standard wire)
Outer diameter of insulator : φ1.1½φ1.4
S : Socket contact
P : Pin contact
No. OF CONTACTS
R10000 : Reel contacts, 10000/reel
P500 : Bulk contacts, 500/pack
Rear-release type
●Pin contact
1.65
●Socket contact
1.95
7.62
1.7
7.62
7.9
1.7
2.25
1.92
φ1.01
Ｊ
17DE
6.9
1.9
2.25
9.9
3.4
1.8
φ1.52
1
8.5
3.4
1.8
0.85
0.85
P/N
17D-2□□PCR(□□)
17D-3□□PCR(□□)
Surface finishing
Connecting section
Gold (0.4μ) over
Nickel Plating
Gold Flash over
Nickel Plating
Wiring section
Gold Flash over
Nickel Plating
Gold Flash over
Nickel Plating
P/N
17D-2□□SCR(□□)
17D-3□□SCR(□□)
Surface finishing
Connecting section
Gold (0.4μ) over
Nickel Plating
Gold Flash over
Nickel Plating
Wiring section
Gold Flash over
Nickel Plating
Gold Flash over
Nickel Plating
3
●
●
7.62
φ1.52
7.62
17DE Series
Unit : mm

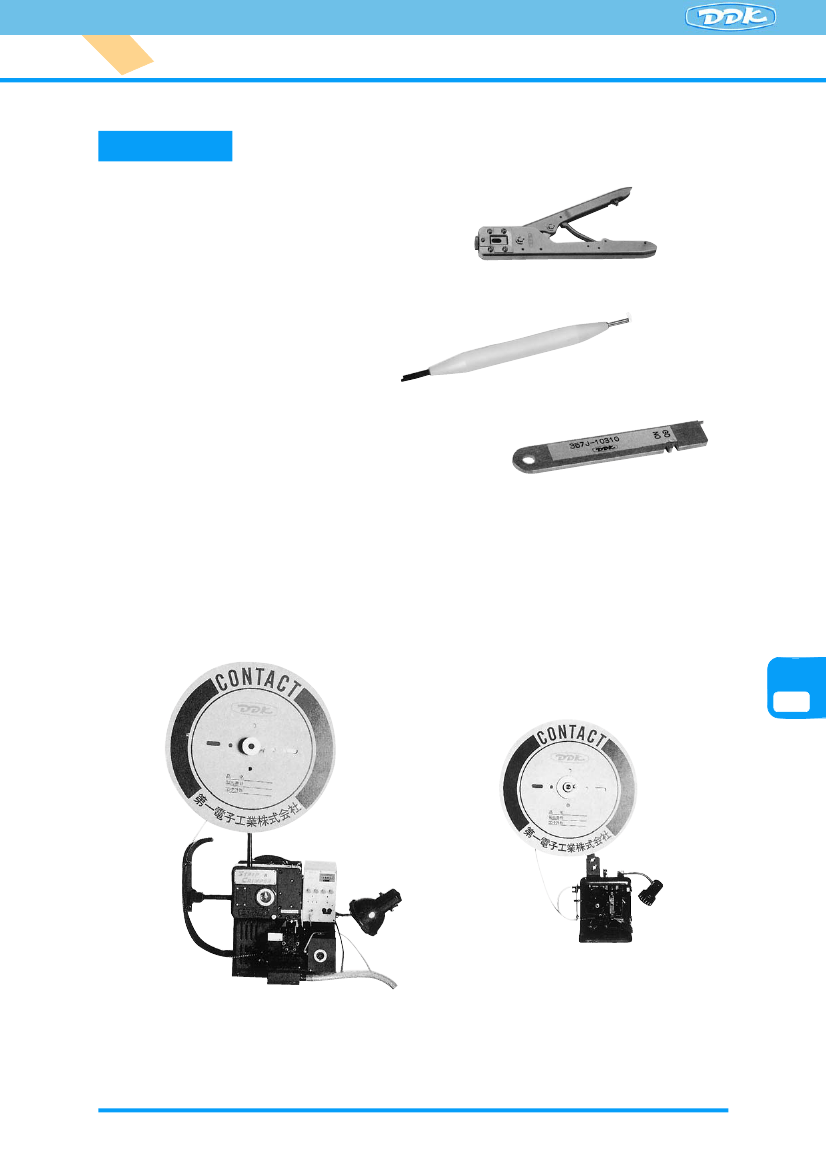

Tools
●Manual wiring tool
P/N : 357J-10422 (For 17D-□□3□CR Contact type)
P/N : 357J-15475 (For 17D-□□4□CR Contact type)
●Tool for inserting/removing contact
P/N :357J-10309
●Tool for erecting contact ratch
Designation : 357J-10310
Used to erect ratch after removing contact inserted into
insert-block by error.
●Semi-automatic crimping machine
Stripper crimper
Designation : AP-A10424 (including press unit)
Power supply : AC100V (0.2kW)
Weight : 88kg
Crimper
Designation : AP-A10423 (including press unit)
Power supply : AC100V
Weight : 45kg
Ｊ
17DE
4
●
●
