MSM80C85AGS datasheet, PDF - EEWORLD Datasheet

MSM80C85AGS: DescriptionMicroprocessor, 8-Bit, 3MHz, CMOS, PQFP44, 9 X 10 MM, PLASTIC, QFP-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size430KB，17 Pages; ManufacturerOKI; Websitehttp://www.oki.com

Download Datasheet Parametric Compare View All

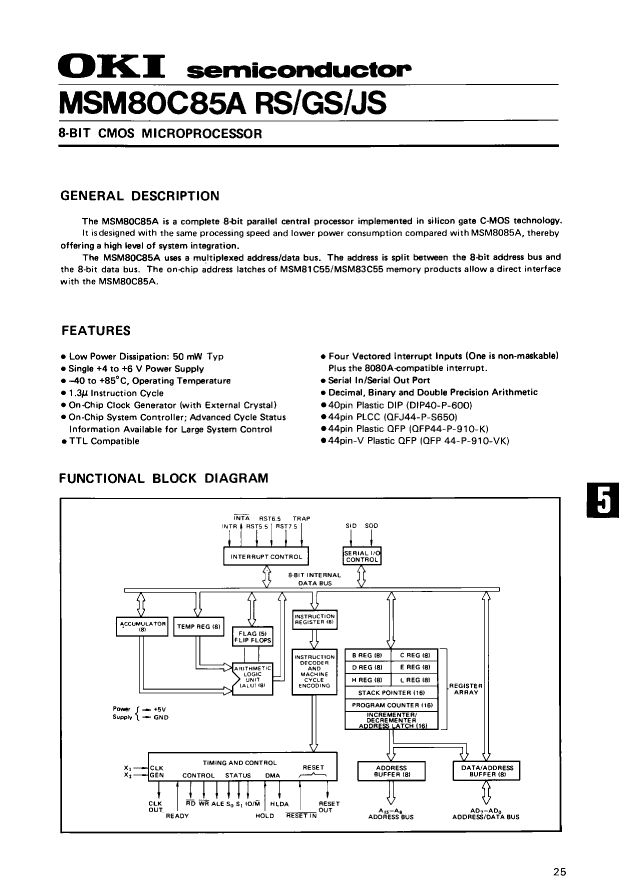

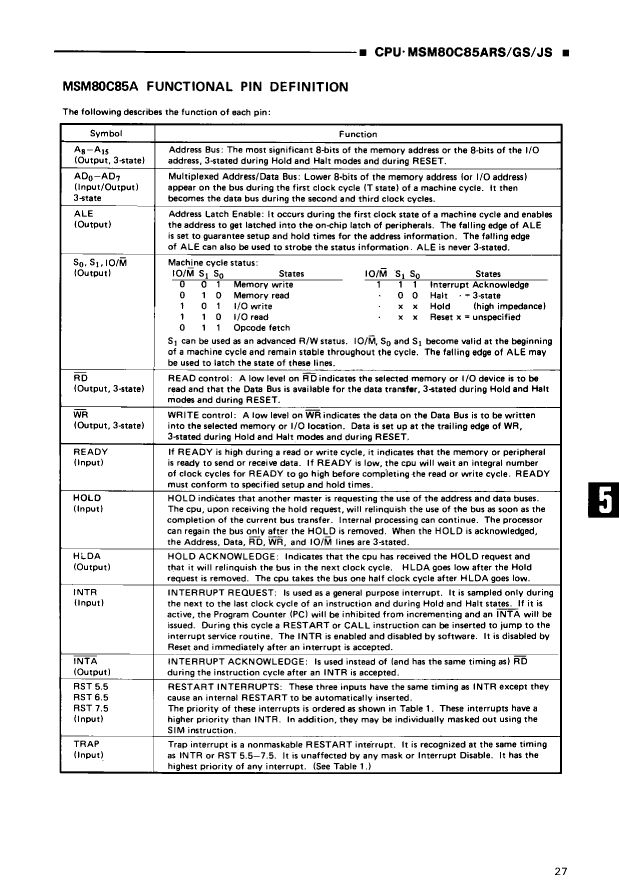

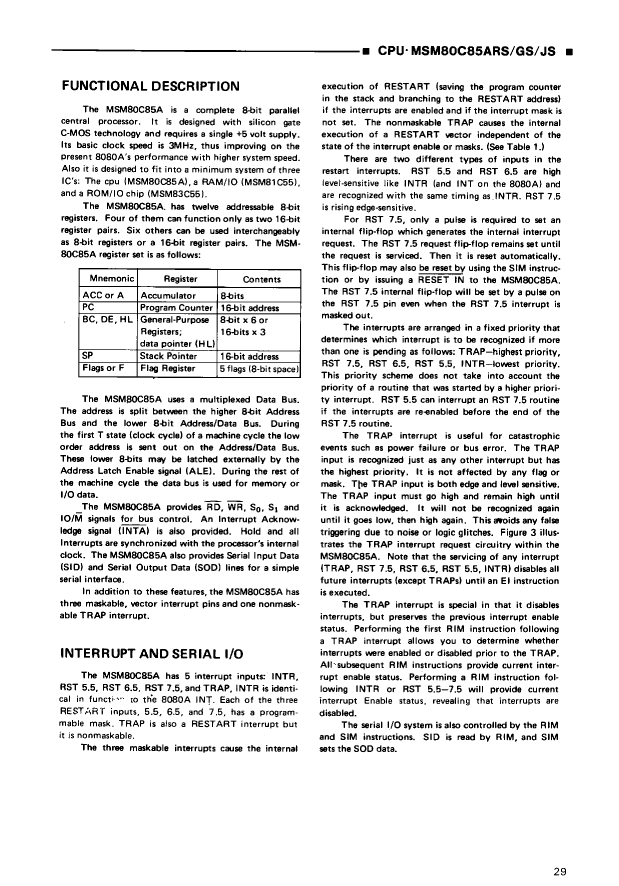

MSM80C85AGS Overview

Microprocessor, 8-Bit, 3MHz, CMOS, PQFP44, 9 X 10 MM, PLASTIC, QFP-44

Parameter Name	Attribute value
Maker	OKI
Parts packaging code	QFP
package instruction	QFP,

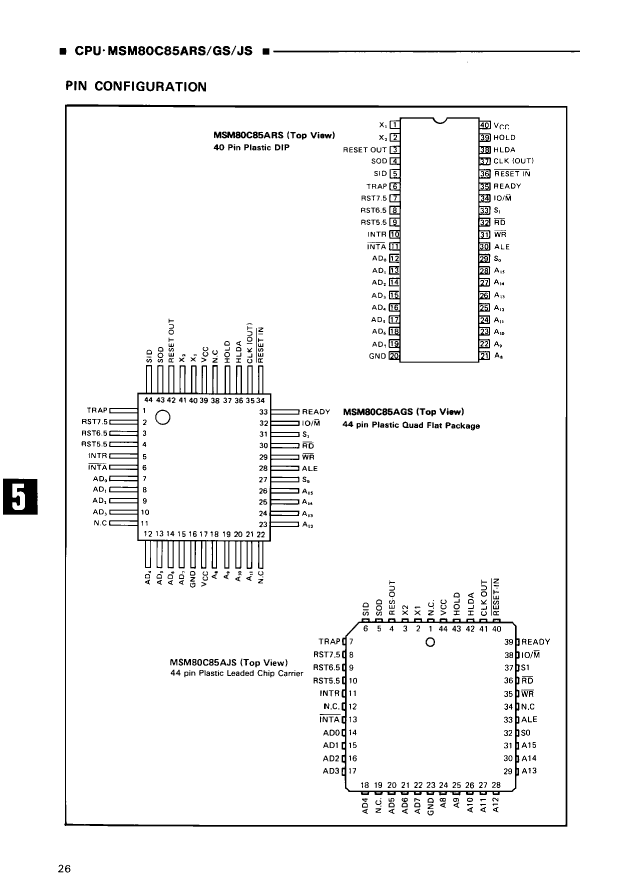

Contacts	44
Reach Compliance Code	unknown
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	6 MHz
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PQFP-G44
low power mode	YES
Number of DMA channels

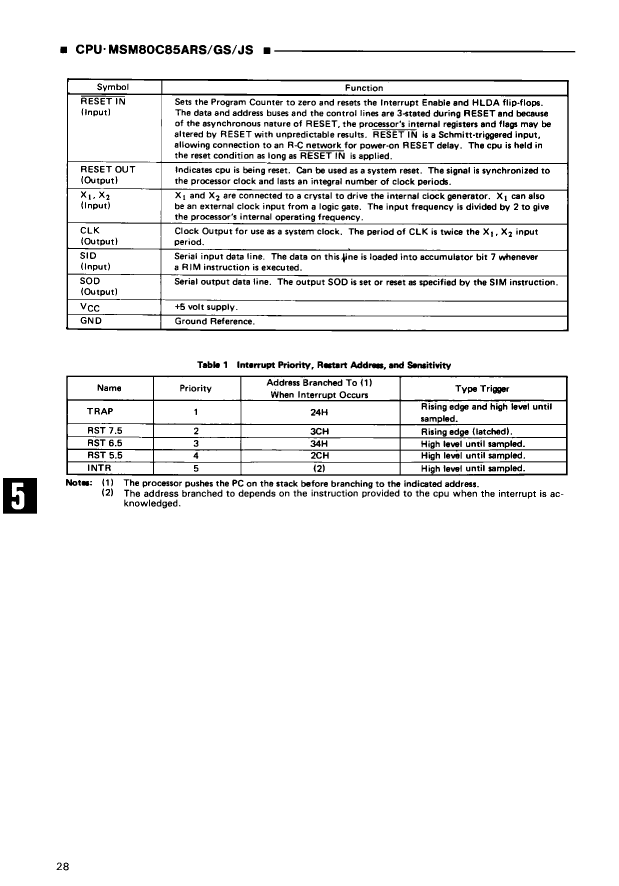

Number of external interrupt devices	5
Number of serial I/Os	1
Number of terminals	44
On-chip data RAM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
RAM (number of words)	0
speed	3 MHz
Maximum slew rate	22 mA
Maximum supply voltage	6 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

	MSM80C85AGS	MSM80C85ARS
Description	Microprocessor, 8-Bit, 3MHz, CMOS, PQFP44, 9 X 10 MM, PLASTIC, QFP-44	Microprocessor, 8-Bit, 3MHz, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40
Maker	OKI	OKI
Parts packaging code	QFP	DIP
package instruction	QFP,	DIP,
Contacts	44	40
Reach Compliance Code	unknown	unknown
Address bus width	16	16
bit size	8	8
boundary scan	NO	NO
maximum clock frequency	6 MHz	6 MHz
External data bus width	8	8
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	R-PQFP-G44	R-PDIP-T40
low power mode	YES	YES
Number of external interrupt devices	5	5
Number of serial I/Os	1	1
Number of terminals	44	40
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
Certification status	Not Qualified	Not Qualified
speed	3 MHz	3 MHz
Maximum slew rate	22 mA	22 mA
Maximum supply voltage	6 V	6 V
Minimum supply voltage	4 V	4 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	QUAD	DUAL
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR
