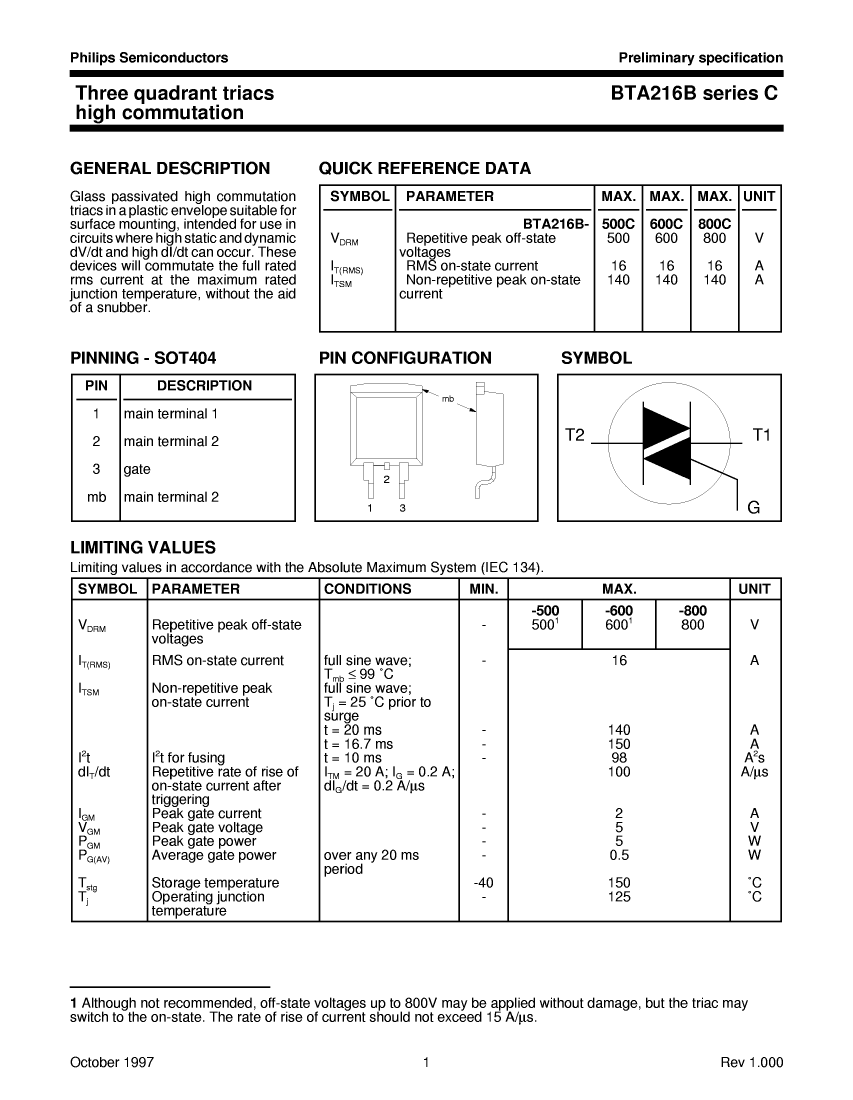

BTA216B600C datasheet, PDF - EEWORLD Datasheet

BTA216B600C: DescriptionTRIAC, 600V V(DRM), 16A I(T)RMS; CategoryAnalog mixed-signal IC Trigger device; File Size156KB，3 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

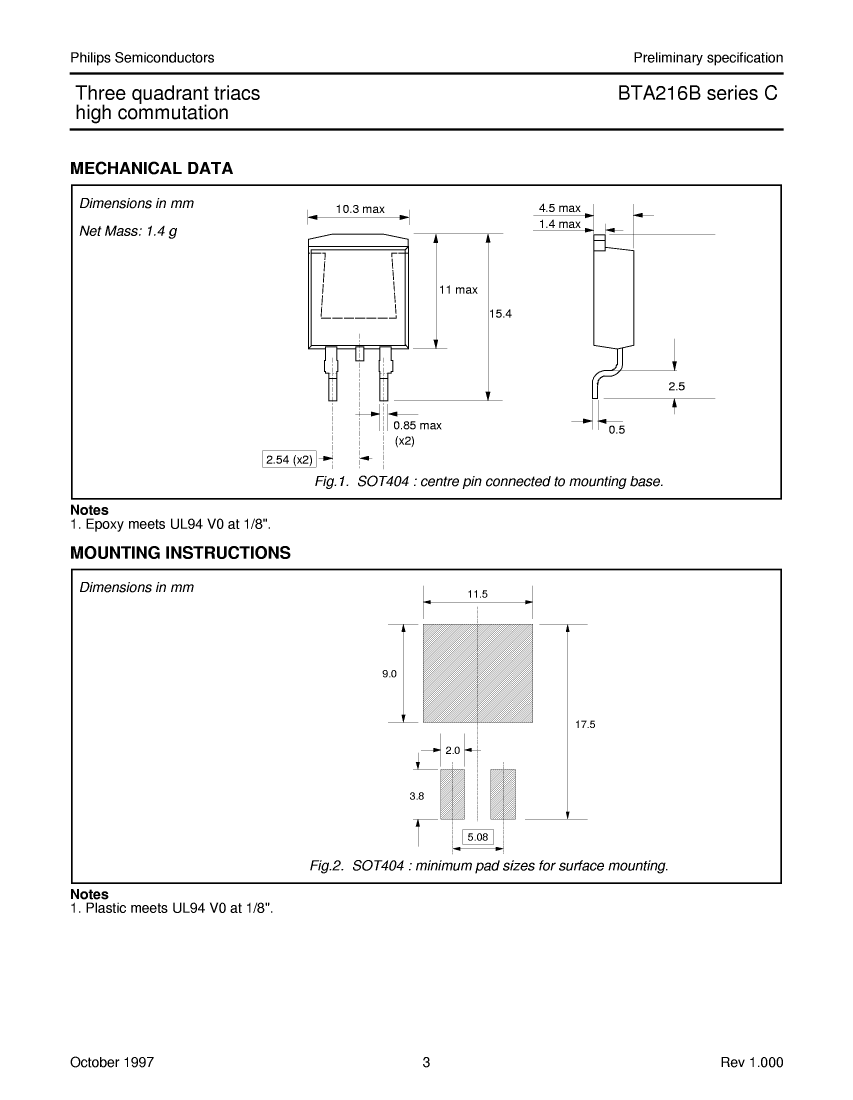

BTA216B600C Overview

TRIAC, 600V V(DRM), 16A I(T)RMS

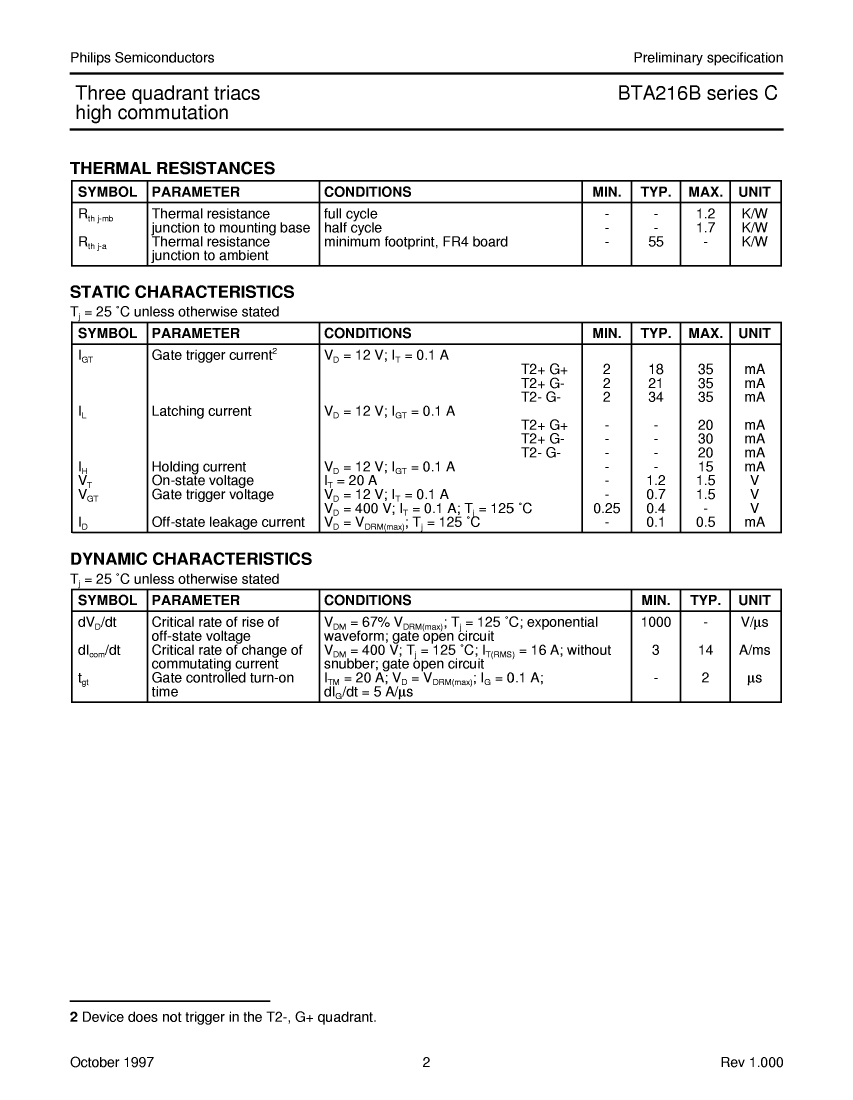

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	,
Reach Compliance Code	unknown
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	35 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	15 mA
JESD-609 code	e0
Maximum leakage current	0.5 mA
Maximum on-state voltage	1.5 V
Maximum operating temperature	125 °C
Maximum rms on-state current	16 A
Off-state repetitive peak voltage	600 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC

	BTA216B600C	BTA216B500C	BTA216B800C
Description	TRIAC, 600V V(DRM), 16A I(T)RMS	TRIAC, 500V V(DRM), 16A I(T)RMS	TRIAC, 800V V(DRM), 16A I(T)RMS
Is it Rohs certified?	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown
Critical rise rate of minimum off-state voltage	1000 V/us	1000 V/us	1000 V/us
Maximum DC gate trigger current	35 mA	35 mA	35 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V
Maximum holding current	15 mA	15 mA	15 mA
JESD-609 code	e0	e0	e0
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA
Maximum on-state voltage	1.5 V	1.5 V	1.5 V
Maximum operating temperature	125 °C	125 °C	125 °C
Maximum rms on-state current	16 A	16 A	16 A
Off-state repetitive peak voltage	600 V	500 V	800 V
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	TRIAC	TRIAC
Base Number Matches	-	1	1
