5558GS4

Description
BRASS, GOLD FINISH, WIRE TERMINAL
CategoryThe connector
File Size230KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

5558GS4 Overview

BRASS, GOLD FINISH, WIRE TERMINAL

5558GS4 Parametric

Parameter NameAttribute value
Lead-freeYes
EU RoHS regulationsYes
China RoHS regulationsYes
stateACTIVE
contact surfaceTIN (80)
Contact materialsBRASS
Manufacturer Series5558
Terminal male and femaleMALE
Terminal typeWIRE TERMINAL
Wire gauge18 AWG
This document was generated on 06/01/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0039000075
Active
minifit_jr
4.20mm (.165") Pitch Mini-Fit™ Crimp Terminal, Male, Brass, Gold (Au) Contact
Plating, Lead-free, 18-24 AWG, Reel
Documents:

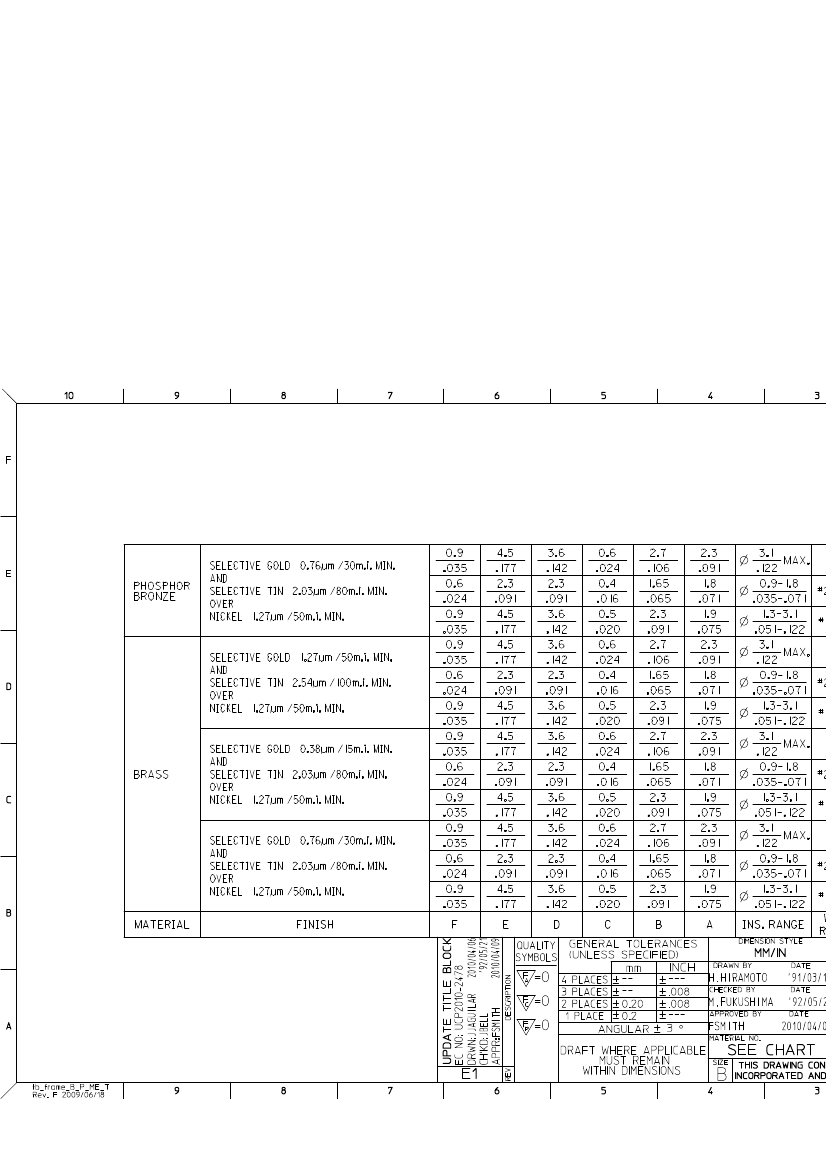

Drawing (PDF)
Product Specification PS-5556-001 (PDF)
Product Specification PS-5556-002 (PDF)
Product Specification PS-5556-003 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
5558
Yes
minifit_jr
Mini-Fit®
Physical
Durability (mating cycles max)
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
30
Male
Brass
Gold
Tin
Reel
15.2
0.38
81.2
2.03
Crimp or Compression
1.30-3.10mm (.051-.122")
18, 20, 22, 24
N/A
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Halogen
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
5558Se
Electrical
Current - Maximum per Contact
Voltage - Maximum
9A
600V
Mates
5556 M
Material Info
Old Part Number
5558GS4
Use W
5559 M
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Test Summary
PK-5558-001
PS-5556-001, PS-5556-002, PS-5556-003
SD-5558-002
TS-5556-002
Applic
Tooling
found b
Crimp H
contain
Specifi
Global
Descri
FineAd
Applica
Jr.™, M
Crimp T
18-24 A
smaller
T2 Term
