This document was generated on 05/21/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0039299047
Active
minifit_jr
4.20mm (.165") Pitch Mini-Fit Jr.™ Header, Dual Row, Vertical, with Snap-in Plastic
Peg PCB Lock, 4 Circuits, PA Polyamide Nylon 6/6 94V-0, Tin (Sn) Plating, without
Drain Holes
Documents:
3D Model

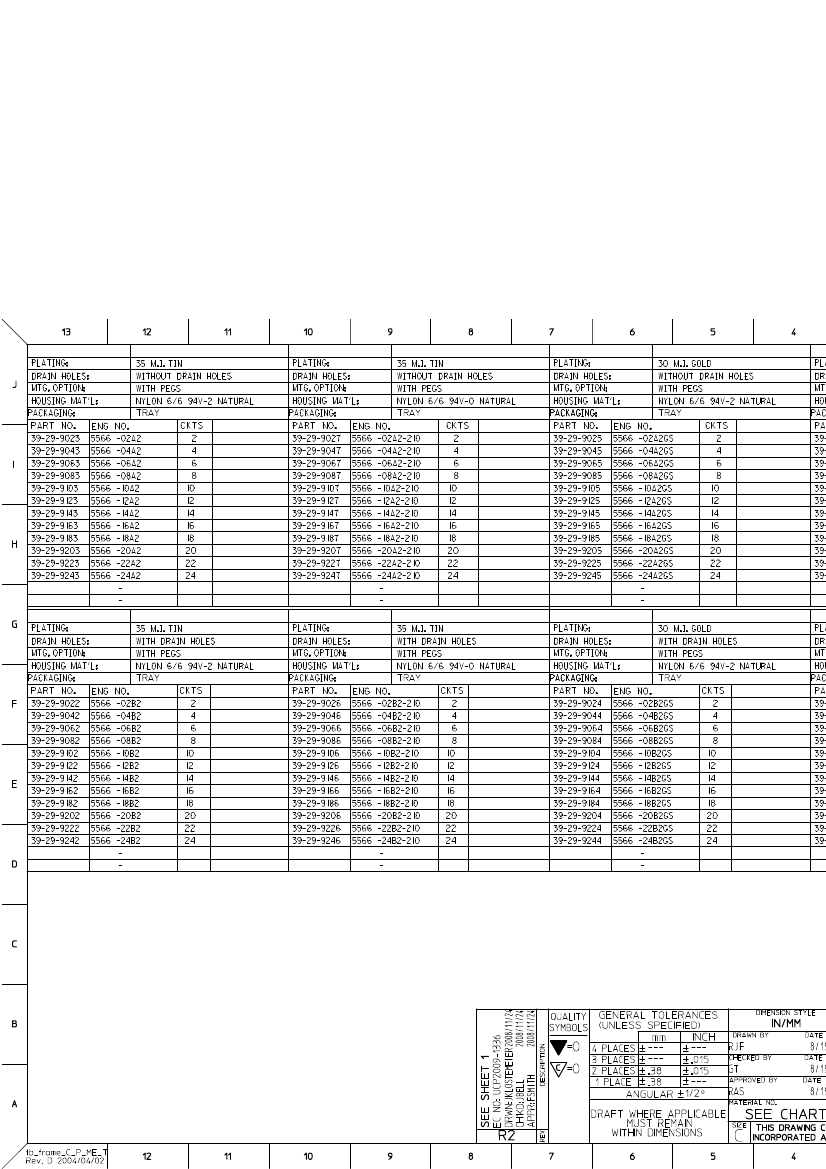

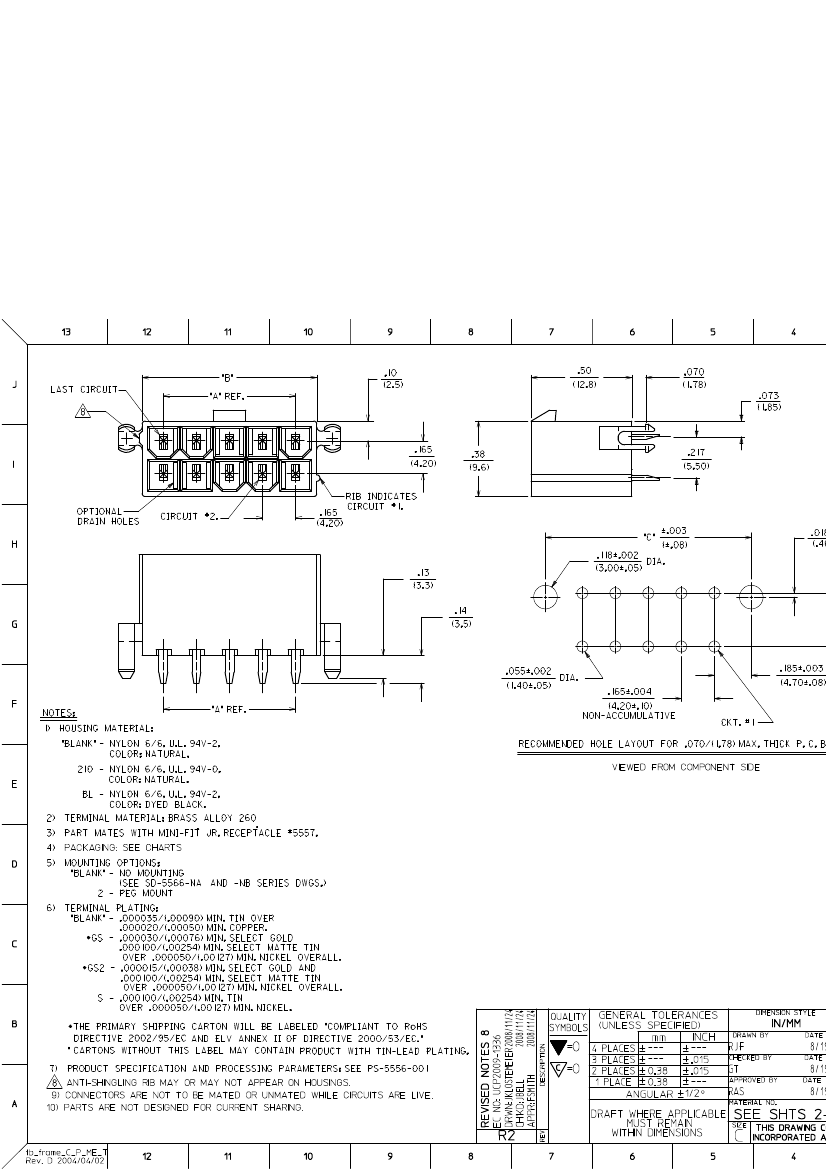

Drawing (PDF)
Product Specification PS-5556-001 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
TUV
UL
LR19980
R72081037
E29179
General
Product Family
Series
Application
Comments
PCB Headers
5566
Wire-to-Board
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 Mini-Fit Plus HCS™
Crimp Terminal Crimpted to to 16 AWG wire. . See
Molex product specification PS-45750-001 for additional
current de-rating information.. Glow Wire Equivalent
Part Number 50361702 , 50362304. Square Pin, Solder
Type
minifit_jr
Mini-Fit Jr.™
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Halogen
Need mo
environm
Email pro
For a mu
Complian
Overview
Product Name
Please vi
non-prod
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
No
4
4
Natural
30
No
94V-0
No
No
None
Yes
Brass
Tin
Tin
Nylon
2
Vertical
0.138 In
3.50 mm
Yes
Yes
0.062 In
1.60 mm
Tray
0.165 In
Search
5566Se
Mates
5557 M
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
4.20 mm
0.165 In
4.20 mm
355.6
8.89
355.6
8.89
Yes
Yes
Fully
No
No
-40°C to +105°C
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
13A
600V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Wave Capable (TH only)
1
240
Material Info
Old Part Number
A-5566-04A2-210
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Test Summary
PK-5566-001
PS-5556-001
SDA-5566-N*2*-*
TS-5556-002
