535843-8

Description

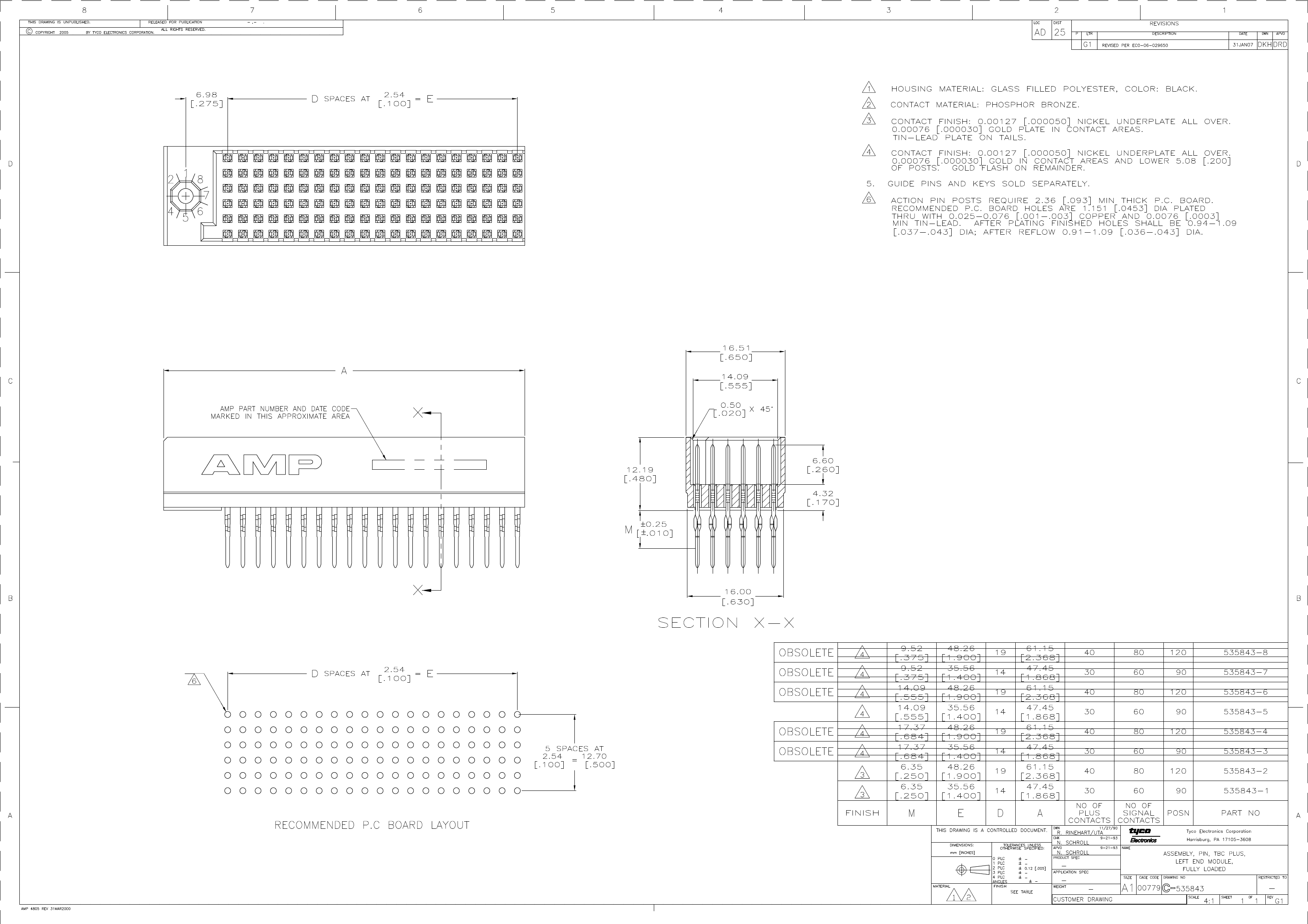

120 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG
CategoryThe connector    The connector
File Size152KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

535843-8 Overview

120 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG

535843-8 Parametric

Parameter NameAttribute value
Objectid1506433742
Reach Compliance Codeunknown
Other featuresACTION PIN
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded6
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typePRESS FIT
Total number of contacts120
UL Flammability Code94V-0

535843-8 Related Products

535843-8 535843-7
Description 120 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG 90 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG
Objectid 1506433742 1506433741
Reach Compliance Code unknown unknown
Other features ACTION PIN ACTION PIN
Body/casing type PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact point gender MALE MALE
DIN compliance NO NO
Filter function NO NO
IEC compliance NO NO
MIL compliance NO NO
Mixed contacts NO NO
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of rows loaded 6 6
Options GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2.54 mm 2.54 mm
Termination type PRESS FIT PRESS FIT
Total number of contacts 120 90
UL Flammability Code 94V-0 94V-0
