5263PBTL datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 5263PBTL

Preview

5263PBTL: Description0.33 mm2, PHOSPHOR BRONZE, TIN (36) FINISH, WIRE TERMINAL; CategoryThe connector; File Size97KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

5263PBTL Overview

0.33 mm2, PHOSPHOR BRONZE, TIN (36) FINISH, WIRE TERMINAL

5263PBTL Parametric

Parameter Name	Attribute value
Processing package description	HALOGEN FREE AND ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
contact surface	Tin(40)
Contact materials	Phosphor bronze
Manufacturer Series	5263
Terminal male and female	Jack
Terminal type	Wiring terminal
Wire cross section	0.3300 mm2
Wire gauge	22 AWG

Preview

Download Datasheet

View All

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0008701040

Active

spox_bmi

2.50mm (.098") Pitch SPOX™ Crimp Terminal 5263, 22-28 AWG, Bag

Documents:

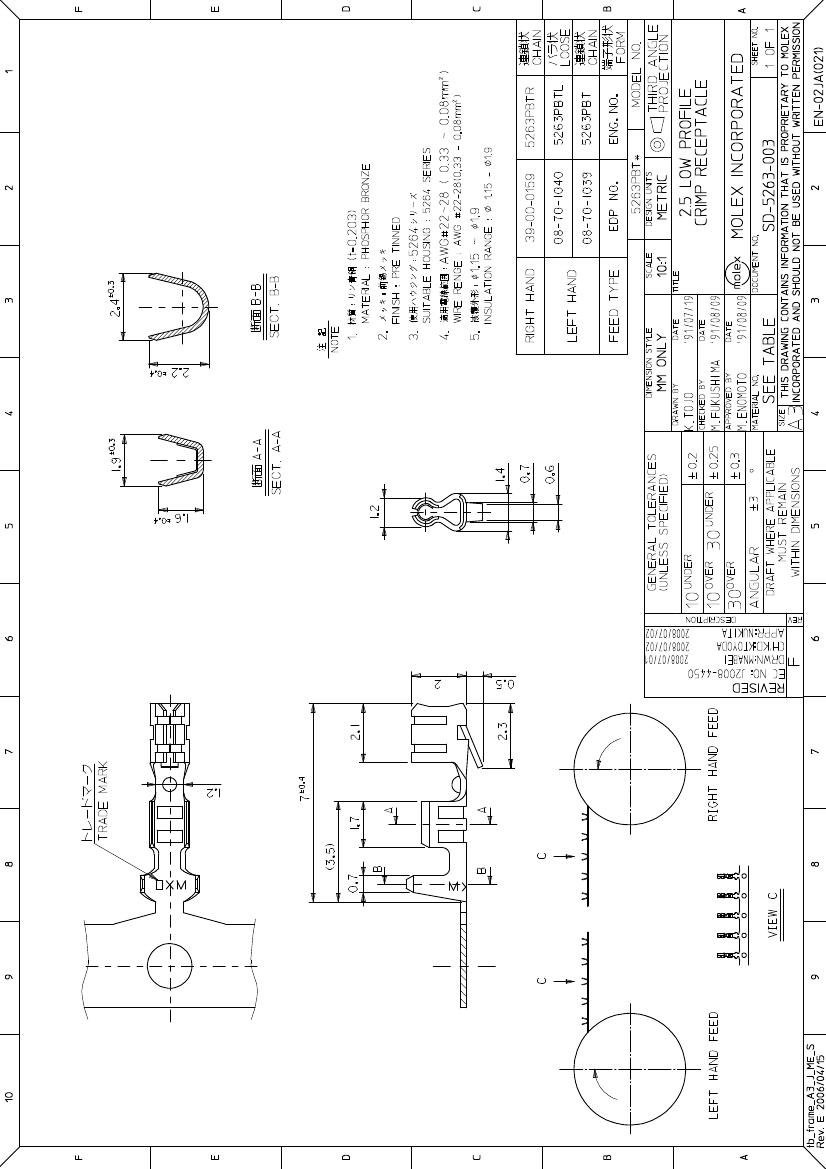

Drawing (PDF)

Product Specification PS-5264-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Crimp Quality Equipment

MolexKits

Overview

Product Name

Crimp Terminals

5263

Yes

spox_bmi

SPOX™

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Female

Phosphor Bronze

Tin

Bag

36

0.90

36

0.90

Crimp or Compression

1.90mm (.075") max.

22, 24, 26, 28

N/A

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Halogen

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

Material Info

Old Part Number

5263PBTL

Search

5263Se

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-5264-001, RPS-5263-001, RPS-5264-002,

RPS-5264-004, RPS-5264-005

SD-5263-003

Use W

5264

Applic

Tooling

found b

Crimp H

contain

Specifi

Global

Descri

Hand C

Manua

Tool

Japan

Descri

Hand C

JHTR5

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
