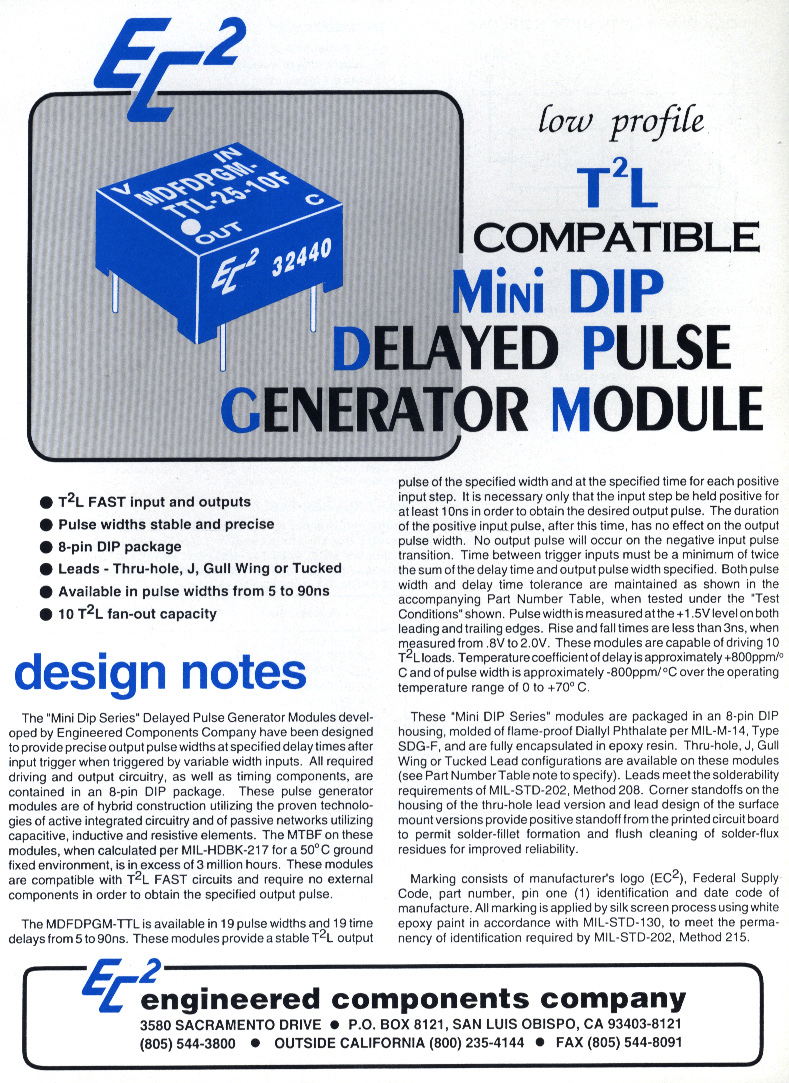

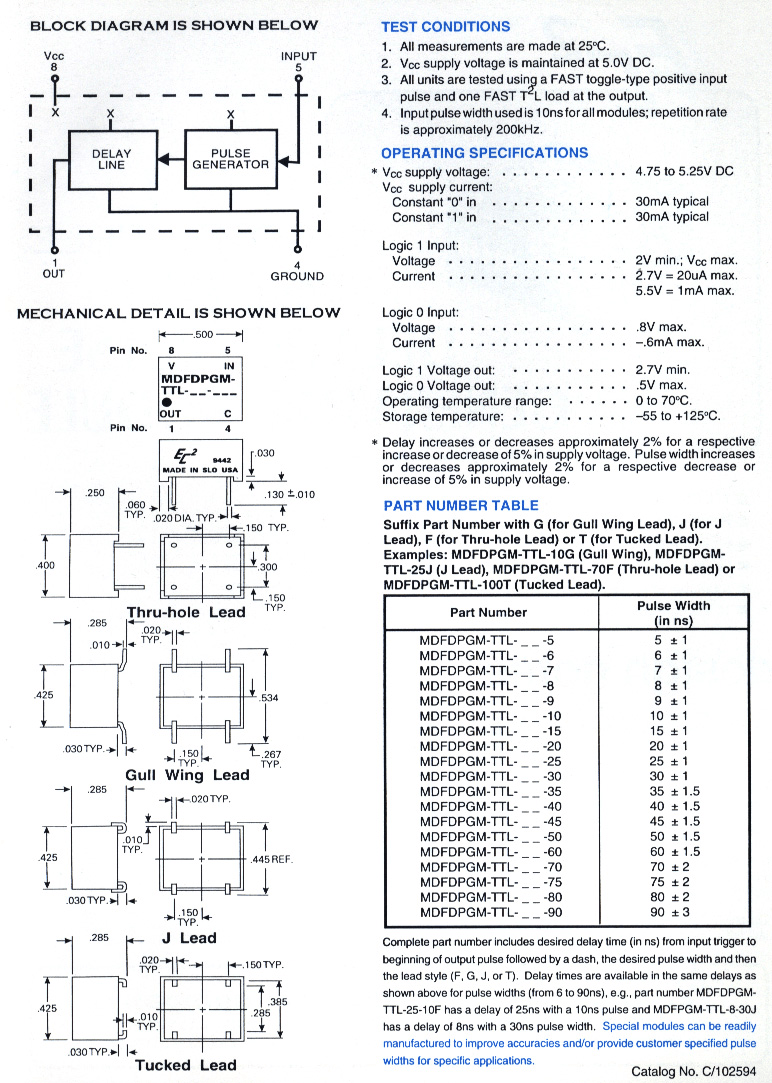

MDFDPGM-TTL-10-25G datasheet, PDF

MDFDPGM-TTL-10-25G: DescriptionPulse Generator Delay Line, 1-Func, 1-Tap, True Output, TTL, GULLWING, MODULE-8/4; Categorylogic logic; File Size1MB，2 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric View All

MDFDPGM-TTL-10-25G Overview

Pulse Generator Delay Line, 1-Func, 1-Tap, True Output, TTL, GULLWING, MODULE-8/4

Parameter Name	Attribute value
Maker	Engineered Components Co.
Parts packaging code	SOIC
package instruction	SOP,
Contacts	4
Reach Compliance Code	unknown
Other features	OUTPUT PULSE WIDTH TOL. = +-1NS; TYP. ICC = 30MA; MAX RISE TIME CAPTURED
series	F
Input frequency maximum value (fmax)	14.2857 MHz
JESD-30 code	R-XDSO-G4
length	12.7 mm
Logic integrated circuit type	PULSE GENERATOR DELAY LINE
Number of functions	1
Number of taps/steps	1
Number of terminals	4
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	7.239 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	10 ns
width	10.795 mm
