0190710208
Active
InsulKrimp™ Ring Tongue Terminal for 6 AWG Wire
Documents:

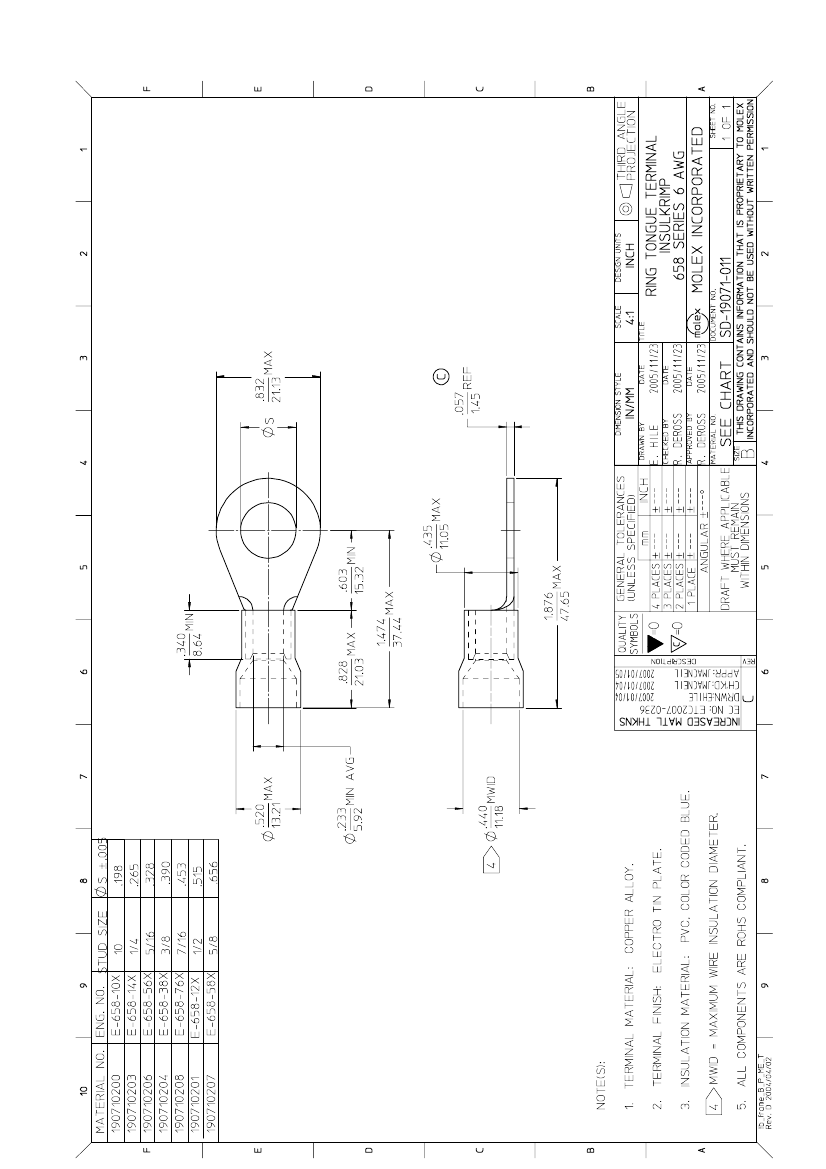

Drawing (PDF)
Product Specification PS-19902-009 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Crimp Quality Equipment
Mil-Spec
Product Name
Type
Ring and Spade Terminals
19071
Yes
N/A
InsulKrimp™
Ring
Physical
Barrel Type
Color - Resin
Insulation
Material - Plating Mating
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Stud Size
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Closed
Natural
PVC
Tin
Bag
100
2.5
100
2.5
7/16" (M11)
Crimp or Compression
11.20mm (.440") max.
6
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Material Info
Old Part Number
E-658-76X
Search
19071S
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-19902-009
SD-19071-011
Applic
Tooling
found b
Crimp H
contain
Specifi
Global
Descri
Manua
Hydrau
Die set
Die Se
the HH
Crimpe
Hand C
Putt Pu
Head S
