LH2465-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> LH2465-15

LH2465-15: DescriptionNibble Mode DRAM, 64KX4, 150ns, NMOS, PDIP18, 0.300 INCH, PLASTIC, DIP-18; Categorystorage storage; File Size235KB，10 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH2465-15 Overview

Nibble Mode DRAM, 64KX4, 150ns, NMOS, PDIP18, 0.300 INCH, PLASTIC, DIP-18

LH2465-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SHARP
package instruction	0.300 INCH, PLASTIC, DIP-18
Reach Compliance Code	unknown
access mode	NIBBLE
Maximum access time	150 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDIP-T18
JESD-609 code	e0
length	23 mm
memory density	262144 bit
Memory IC Type	NIBBLE MODE DRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	18
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
refresh cycle	256
Maximum seat height	4.4 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

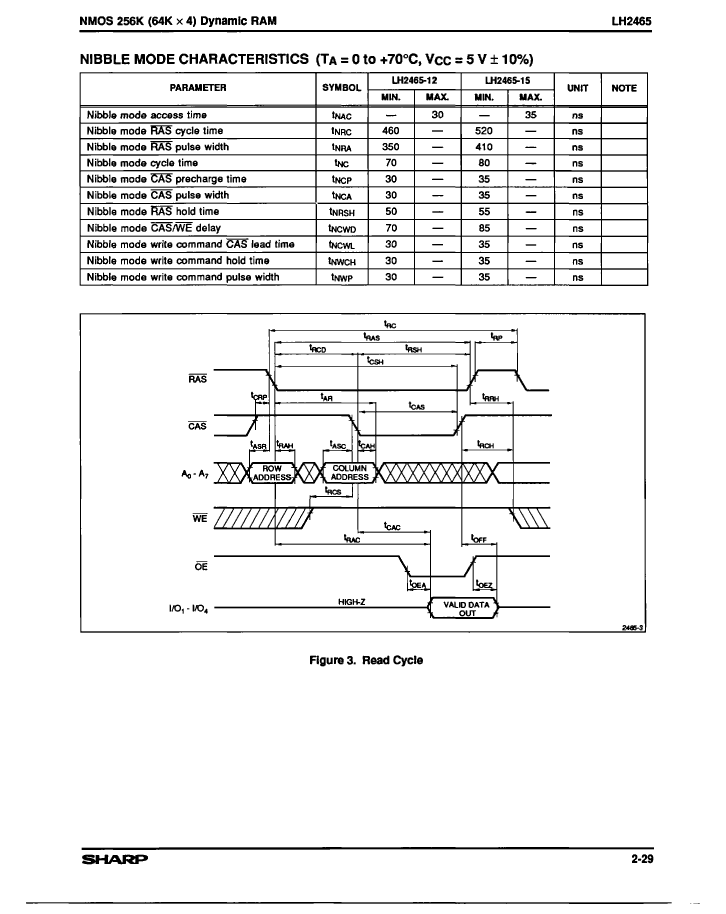

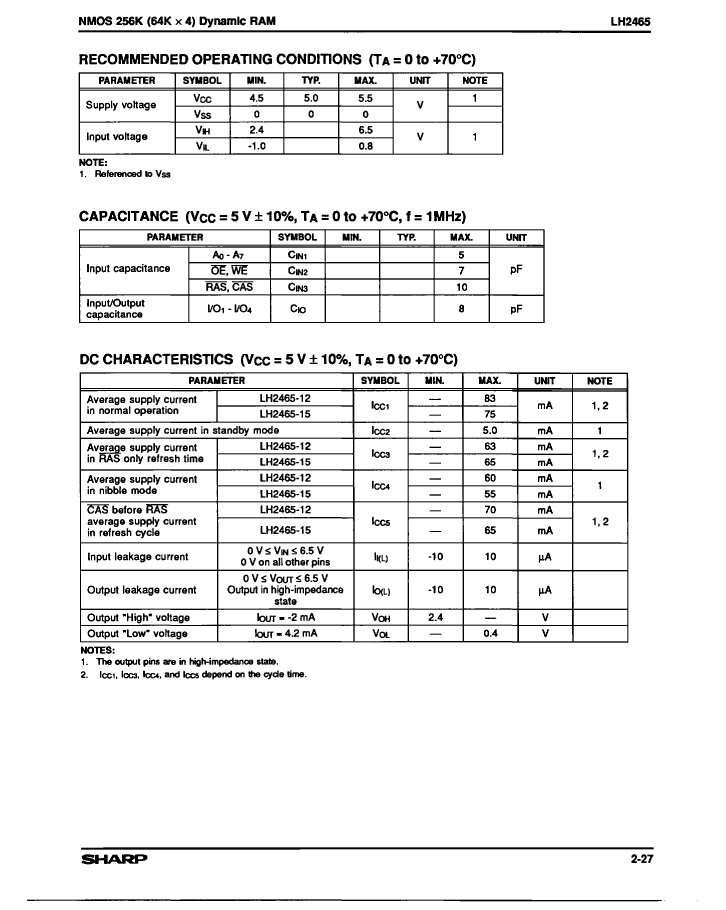

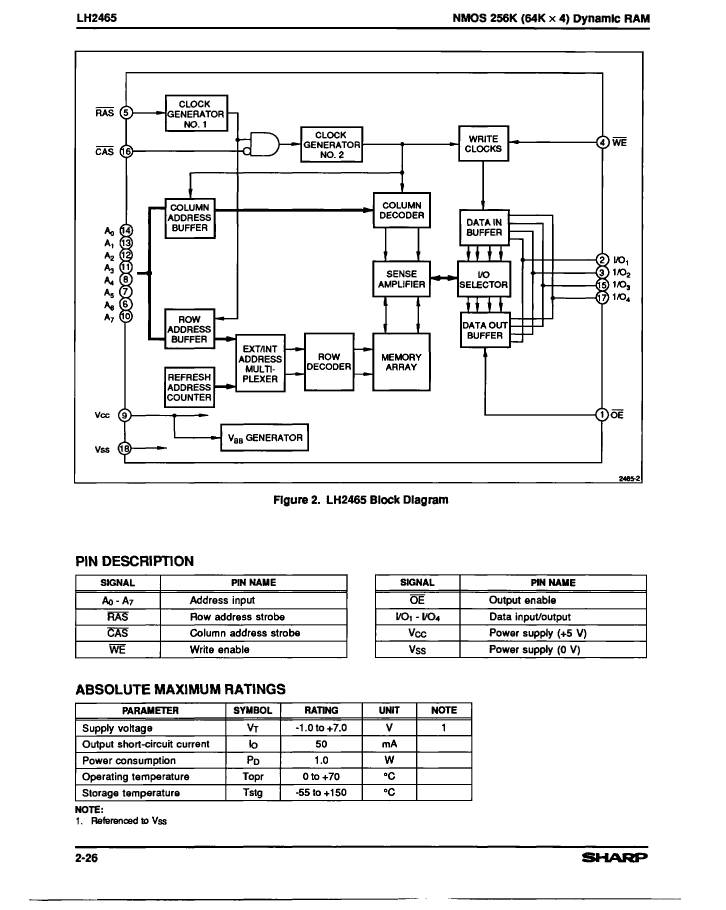

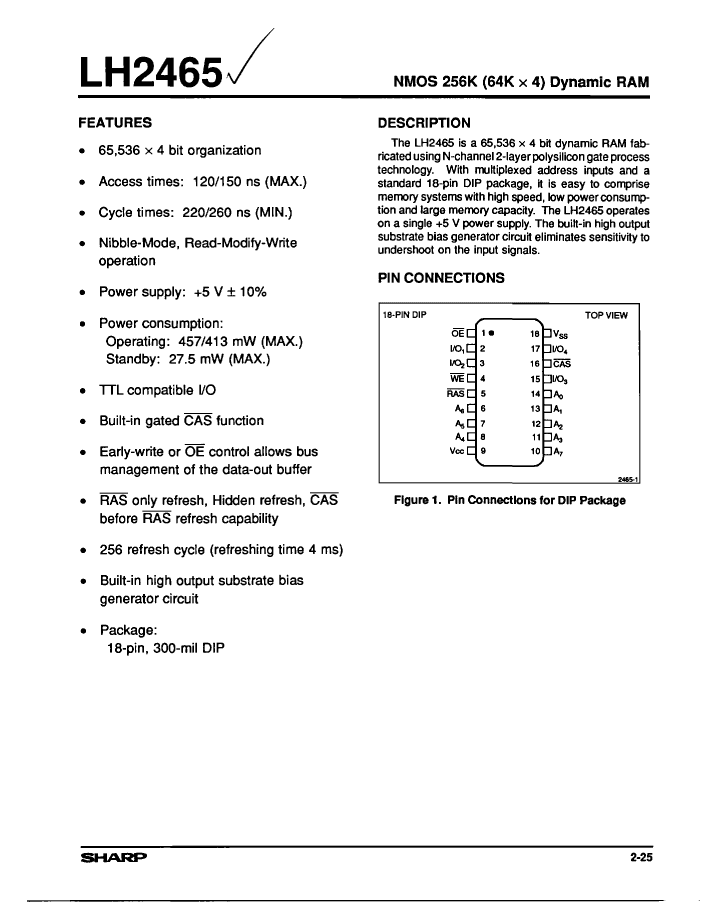

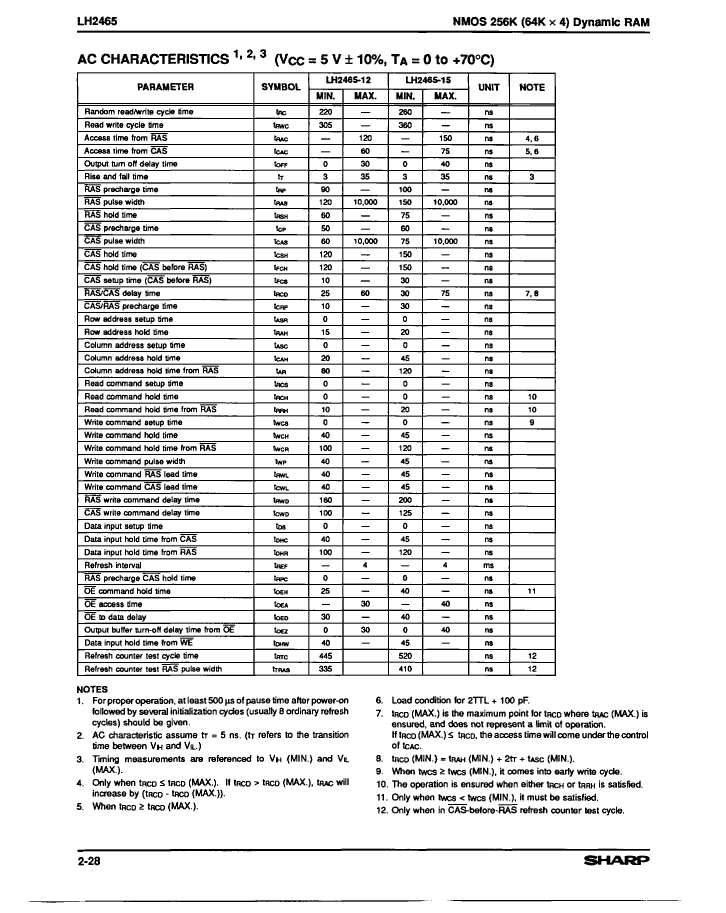

Preview

Download Datasheet

View All

LH2465-15 Related Products

	LH2465-15	LH2465-12
Description	Nibble Mode DRAM, 64KX4, 150ns, NMOS, PDIP18, 0.300 INCH, PLASTIC, DIP-18	Nibble Mode DRAM, 64KX4, 120ns, NMOS, PDIP18, 0.300 INCH, PLASTIC, DIP-18
Is it Rohs certified?	incompatible	incompatible
Maker	SHARP	SHARP
package instruction	0.300 INCH, PLASTIC, DIP-18	0.300 INCH, PLASTIC, DIP-18
Reach Compliance Code	unknown	unknown
access mode	NIBBLE	NIBBLE
Maximum access time	150 ns	120 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDIP-T18	R-PDIP-T18
JESD-609 code	e0	e0
length	23 mm	23 mm
memory density	262144 bit	262144 bit
Memory IC Type	NIBBLE MODE DRAM	NIBBLE MODE DRAM
memory width	4	4
Number of functions	1	1
Number of ports	1	1
Number of terminals	18	18
word count	65536 words	65536 words
character code	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	64KX4	64KX4
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
refresh cycle	256	256
Maximum seat height	4.4 mm	4.4 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	NMOS	NMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm
