609-6414HT: DescriptionBoard Connector, 64 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size34KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

609-6414HT Overview

Board Connector, 64 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Wire Wrap Terminal, Black Insulator, Receptacle

609-6414HT Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	HOLE .086-.098
body width	0.352 inch
subject depth	0.691 inch
body length	3.965 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	609
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	PANEL
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.176 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	64
UL Flammability Code	94V-0

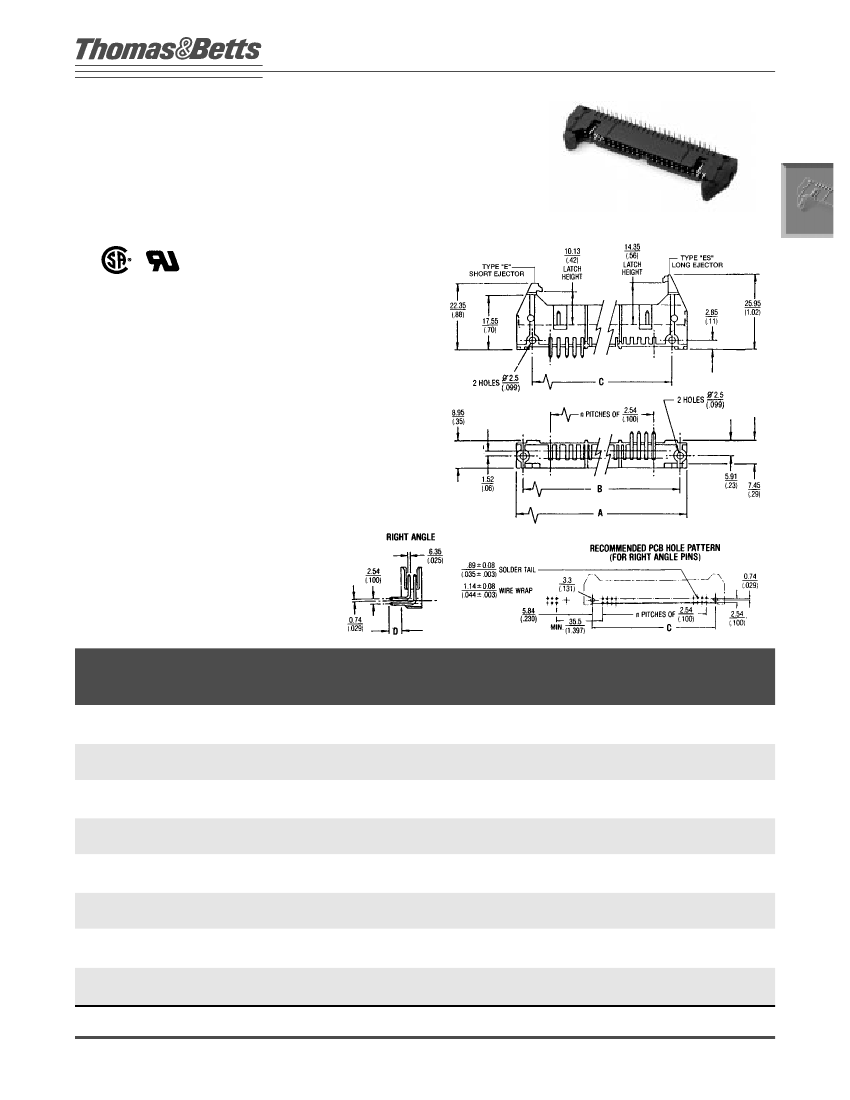

Preview

Download Datasheet

View All

IDC Systems

Headers

HIGH TEMPERATURE

RIGHT ANGLE STANDARD

HEADERS

WITH AND WITHOUT

RETAINER/EJECTOR LATCHES

.100" x .100" CENTERS

LR92984

E60980

P

HYSICAL

P

ROPERTIES

I

NSULATION

M

ATERIAL

:

Glass filled thermoplastic

rated UL 94V-0, Infrared and vapor phase

process compatible

C

OLOR

:

Black

C

ONTACT

M

ATERIAL

:

Phosphor bronze with 30µ

inches min. gold over 50µ inches min. nickel

plating

E

LECTRICAL

P

ROPERTIES

C

URRENT

R

ATING

:

1 Amp

I

NSULATION

R

ESISTANCE

:

>1 x 10

9

Ohms @500 VDC

D

IELECTRIC

S

TRENGTH

:

>1000 VRMS @ sea level

E

NVIRONMENTAL

P

ROPERTIES

T

EMPERATURE

R

ATING

:

-55˚C TO 125°C

M

ATING

C

ONNECTORS

F

EMALE

S

OCKETS

:

See pages 9-12

A

CCESSORIES

P

OLARIZING

K

EY

:

See page 44

Ordering Information

PCB 1.57MM (.062)

D=2.9MM (.114)

RIGHT ANGLE

609-0604**HT

609-1004**HT

609-1204**HT

609-1404**HT

609-1604**HT

609-2004**HT

609-2404**HT

609-2604**HT

609-3004**HT

609-3404**HT

609-3604**HT

609-4004**HT

609-4404**HT

609-5004**HT

609-6004**HT

609-6404**HT

CATALOG NUMBERS

PCB 3.18 MM(.125)

D=4.48MM (.176)

RIGHT ANGLE

609-0614**HT

609-1014**HT

609-1214**HT

609-1414**HT

609-1614**HT

609-2014**HT

609-2414**HT

609-2614**HT

609-3014**HT

609-3414**HT

609-3614**HT

609-4014**HT

609-4414**HT

609-5014**HT

609-6014**HT

609-6414**HT

DIMENSIONS IN MM (INCHES)

WIREWRAP

D=15.5MM (.610)

RIGHT ANGLE

609-0644**HT

609-1044**HT

609-1244**HT

609-1444**HT

609-1644**HT

609-2044**HT

609-2444**HT

609-2644**HT

609-3044**HT

609-3444**HT

609-3644**HT

609-4044**HT

609-4444**HT

609-5044**HT

609-6044**HT

609-6444**HT

NO.

OF

POS.

6

10

12

14

16

20

24

26

30

34

36

40

44

50

60

64

A

27.05 (1.07)

32.13 (1.26)

34.64 (1.36)

37.21 (1.46)

39.75 (1.56)

44.83 (1.76)

49.88 (1.96)

52.45 (2.06)

57.50 (2.26)

62.61 (2.46)

65.12 (2.56)

70.23 (2.76)

75.31 (2.96)

82.93 (3.26)

95.63 (3.76)

100.71 (3.96)

B

22.86 (.90)

27.94 (1.10)

30.48 (1.20)

33.02 (1.30)

35.56 (1.40)

40.64 (1.60)

45.72 (1.80)

48.26 (1.90)

53.34 (2.10)

58.42 (2.30)

60.96 (2.40)

66.04 (2.60)

71.12 (2.80)

78.74 (3.10)

91.44 (3.60)

96.52 (3.80)

C

16.76 (.66)

21.64 (.85)

24.38 (.96)

26.92 (1.06)

29.46 (1.16)

34.54 (1.36)

39.62 (1.56)

42.16 (1.66)

47.26 (1.86)

52.32 (2.06)

54.86 (2.16)

59.94 (2.36)

65.02 (2.56)

72.64 (2.86)

85.35 (3.36)

90.42 (3.56)

** For long ejectors, add ES (609-XXXXESHT). For short ejectors, add E (609-XXXXEHT)

Add “R” suffix to part number for PCB retention feature.

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
