Product Specifications
F4NF-7570
Type N Female for 1/2 in FSJ475A cable
OBSOLETE
CHARACTERISTICS
General Specifications
Interface
Body Style
Brand
Mounting Angle
N Female
Straight
HELIAX®
Straight
Electrical Specifications
Connector Impedance
Operating Frequency Band
Cable Impedance
dc Test Voltage
Outer Contact Resistance, maximum
Inner Contact Resistance, maximum
Insulation Resistance, minimum
Average Power
Peak Power, maximum
Insertion Loss, typical
Shielding Effectiveness
70 ohm
0 – 8400 MHz
75 ohm
2000 V
2.00 mOhm
0.30 mOhm
5000 MOhm
0.6 kW @ 900 MHz
10.00 kW
0.05 dB
110 dB
RF Operating Voltage, maximum (vrms) 707.00 V
©2011 CommScope, Inc. All rights reserved.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change.
See www.commscope.com/andrew for the most current information.
page 1 of 4
6/9/2011
Product Specifications
F4NF-7570

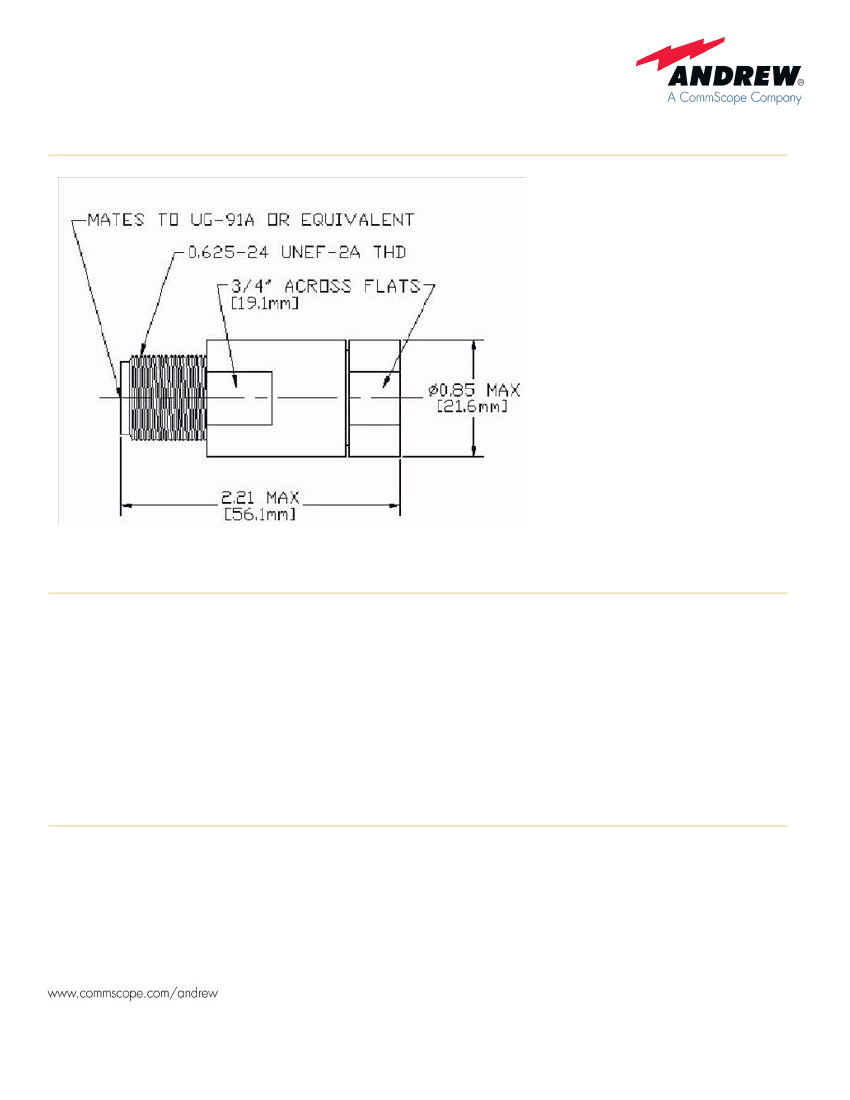

Outline Drawing
Mechanical Specifications
Outer Contact Attachment Method
Inner Contact Attachment Method
Outer Contact Plating
Inner Contact Plating
Attachment Durability
Interface Durability
Interface Durability Method
Connector Retention Tensile Force
Connector Retention Torque
Pressurizable
Tabflare
Solder
Unplated
Silver
25 cycles
500 cycles
IEC 6116916:9.5
890 N | 200 lbf
5.42 Nm | 48.00 in lb
No
Dimensions
Nominal Size
Diameter
Length
Weight
1/2 in
20.32 mm | 0.80 in
53.34 mm | 2.10 in
64.00 g | 0.14 lb
Environmental Specifications
©2011 CommScope, Inc. All rights reserved.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change.
See www.commscope.com/andrew for the most current information.
page 2 of 4
6/9/2011
Product Specifications
F4NF-7570
Operating Temperature
Storage Temperature
Immersion Depth
Immersion Test Mating
Immersion Test Method
Water Jetting Test Mating
Water Jetting Test Method
Moisture Resistance Test Method
Mechanical Shock Test Method
Thermal Shock Test Method
Vibration Test Method
Corrosion Test Method
55 °C to +85 °C (67 °F to +185 °F)
55 °C to +85 °C (67 °F to +185 °F)
1 m
Mated
IEC 60529:2001, IP68
Mated
IEC 60529:2001, IP66
MILSTD202F, Method 106F
MILSTD202F, Method 213B, Test Condition C
MILSTD202, Method 107, Test Condition A1, Low Temperature 55 °C
MILSTD202F, Method 204D, Test Condition B
MILSTD1344A, Method 1001.1, Test Condition A
Standard Conditions
Attenuation, Ambient Temperature
20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Return Loss/VSWR
Frequency Band
3.3–4.4 GHz
45–1100 MHz
1100–2200 MHz
2200–3300 MHz
4400–5500 MHz
5500–6600 MHz
6600–7700 MHz
7700–8800 MHz
8800–9900 MHz
9900–11000 MHz
VSWR
1.17
1.06
1.11
1.12
1.33
1.43
1.67
1.92
1.92
2.1
Return Loss (dB)
22.00
31.00
26.00
25.00
17.00
15.00
12.00
10.00
10.00
9.00
Regulatory Compliance/Certifications
Agency
RoHS 2002/95/EC
China RoHS SJ/T 113642006
Classification
Compliant by Exemption
Above Maximum Concentration Value (MCV)
*
F o o t n o t e s
Immersion Depth
Immersion at specified depth for 24 hours
©2011 CommScope, Inc. All rights reserved.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change.
See www.commscope.com/andrew for the most current information.
page 3 of 4
6/9/2011
Product Specifications
F4NF-7570
Insertion Loss, typical
0.05√¯freq (GHz) (not applicable for elliptical waveguide)
©2011 CommScope, Inc. All rights reserved.
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change.
See www.commscope.com/andrew for the most current information.
page 4 of 4
6/9/2011
