TECHNICAL DATA SHEET
D-SUB
Coax Insert
STRAIGHT JACK

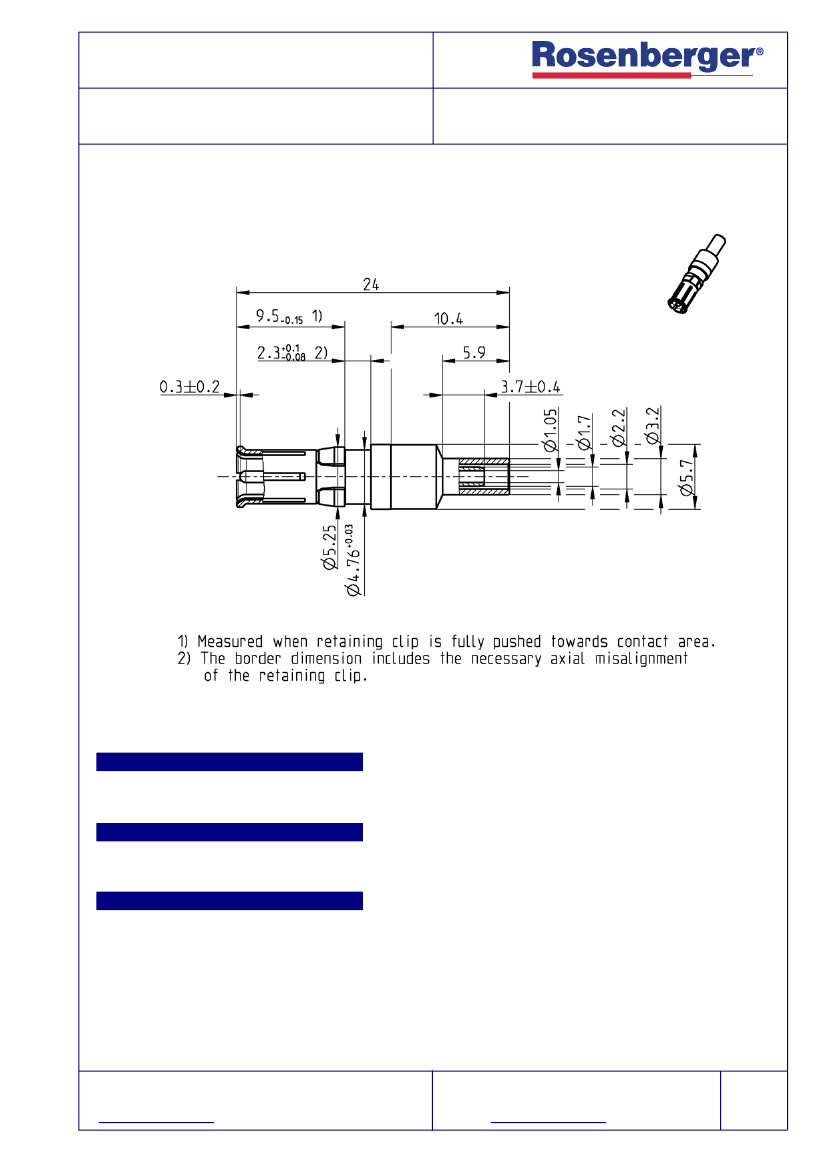

55K151-301L5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
D-Sub
Documents
Assembly instruction
55 A
Material and plating
Connector parts
Center contact
Outer contact
Body
Clip
Dielectric
Crimping ferrule
RF_35/11.05/3.1
Material
Brass
CuBe
CuBe
CuBe
PTFE
Brass
Plating
AuroDur®, gold plated
AuroDur®, gold plated
AuroDur®, gold plated
Nickel, 2.5-5 µm
Gold, 0.1 µm
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
D-SUB
Coax Insert
Electrical data
Impedance
Frequency
Return loss
50
Ω
DC to 2 GHz
≥
30 dB, DC to 0.1 GHz
≥
20 dB, 0.1 to 0.5 GHz
≥
14 dB, 0.5 to 2 GHz
≤
0.1 x
f(GHz)
dB, DC to 0.5 GHz
4
≥
1x10 MΩ
≤
10 mΩ
≤
3 mΩ
1500 V rms
500 V rms
≥
80 dB up to 0.5 GHz
≥
65 dB up to 1.5 GHz
STRAIGHT JACK
55K151-301L5
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
RF-leakage
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Center contact captivation
Connector captivation in plastic
Engaging and disengaging force
≥
≥
≥
≤
50
10 N
52 N
10 N
Environmental data
Temperature range
Climatic class
2002/95/EC (RoHS)
-55°C to +125°C
IEC 60068-2-1 55/125/21
IEC 60068-2-2
IEC 60068-2-3
compliant
Tooling
Crimping tool
Crimp insert
11W150-000
11W150-101
Suitable cables
RG 196 A/U, RG 178 B/U
Packing
Standard
Weight
100 pcs in bag
1.6 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/11.05/3.1
Draft
Inge Mühlauer
Date
28/09/04
Approved
Rong Fang
Date
17/10/07
Rev.
d00
Engineering change number
07-0154
Name
S. Huber-Siegl
Date
17/10/07
