2SC4984-T: DescriptionPower Bipolar Transistor, 1.5A I(C), 15V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, PCP, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size48KB，5 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

2SC4984-T Overview

Power Bipolar Transistor, 1.5A I(C), 15V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, PCP, 3 PIN

2SC4984-T Parametric

Parameter Name	Attribute value
Objectid	1543500774
package instruction	SMALL OUTLINE, R-PSSO-F3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	1.5 A
Collector-emitter maximum voltage	15 V
Configuration	SINGLE
Minimum DC current gain (hFE)	200
JESD-30 code	R-PSSO-F3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Maximum power dissipation(Abs)	1.3 W
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz

Preview

Download Datasheet

View All

Ordering number:ENN4633A

PNP/NPN Epitaxial Planar Silicon Transistors

2SA1882/2SC4984

Low-Frequency

General-Purpose Amplifier Applications

Applcations

· Low-frequency power amplifier applications.

· Medium-speed switching.

· Small-sized motor drivers.

Package Dimensions

unit:mm

2038A

[2SA1882/2SC4984]

4.5

1.6

1.5

Features

· Large current capacity.

· Low collector-to-emitter saturation voltage.

0.4

1.5

0.5

3.0

0.75

1.0

2.5

4.25max

0.4

Specifications

( ) : 2SA1882

Absolute Maximum Ratings

at Ta = 25˚C

Parameter

Collector-to-Base Voltage

Collector-to-Emitter Voltage

Emitter-to-Base Voltage

Collector Current

Collector Current (Pulse)

Base Current

Collector Dissipation

Junction Temperature

Storage Temperature

Symbol

VCBO

VCEO

VEBO

ICP

Tstg

Mounted on a ceramic board (250mm

×0.8mm)

1 : Base

2 : Collector

3 : Emitter

SANYO : PCP

Conditions

Ratings

(–)15

(–)5

(–)1.5

(–)3

(–)300

1.3

150

–55 to +150

Unit

˚C

Electrical Characteristics

at Ta = 25˚C

Parameter

Collector Cutoff Current

Emitter Cutoff Current

DC Current Gain

Gain-Bandwidth Product

Output Capacitance

Symbol

ICBO

IEBO

hFE1

hFE2

Cob

VCB=(–)12V, IE=0

VEB=(–)4V, IC=0

VCE=(–)2V, IC=(–)50mA

VCE=(–)2V, IC=(–)1A

VCE=(–)2V, IC=(–)50mA

VCB=(–)10V, f=1MHz

140*

(300)

200

(15)10

MHz

Conditions

Ratings

min

typ

max

(–)100

560*

Unit

Continued on next page.

Any and all SANYO products described or contained herein do not have specifications that can handle

applications that require extremely high levels of reliability, such as life-support systems, aircraft’s

control systems, or other applications whose failure can be reasonably expected to result in serious

physical and/or material damage. Consult with your SANYO representative nearest you before using

any SANYO products described or contained herein in such applications.

SANYO assumes no responsibility for equipment failures that result from using products at values that

exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other

parameters) listed in products specifications of any and all SANYO products described or contained

herein.

SANYO Electric Co.,Ltd. Semiconductor Company

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

92500TS (KOTO)/91098HA (KT)/51794TH (KOTO) BX-0238 No.4633–1/5

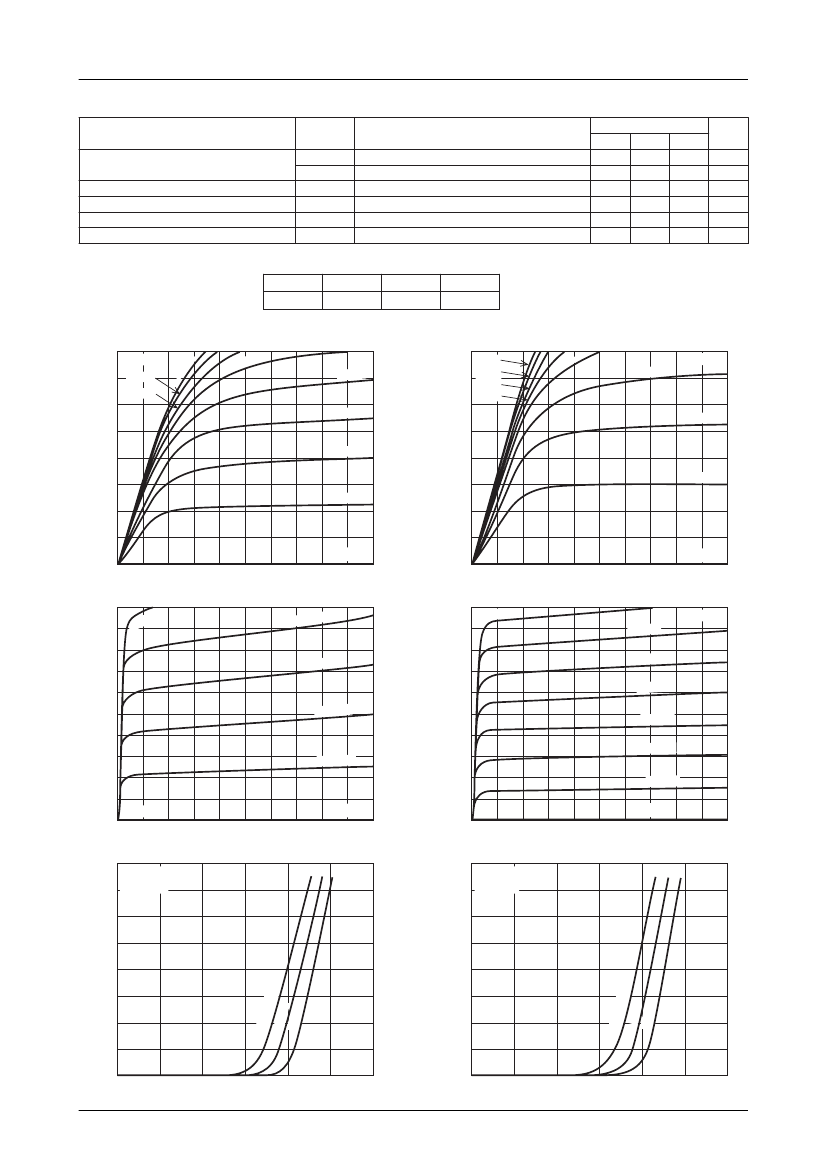

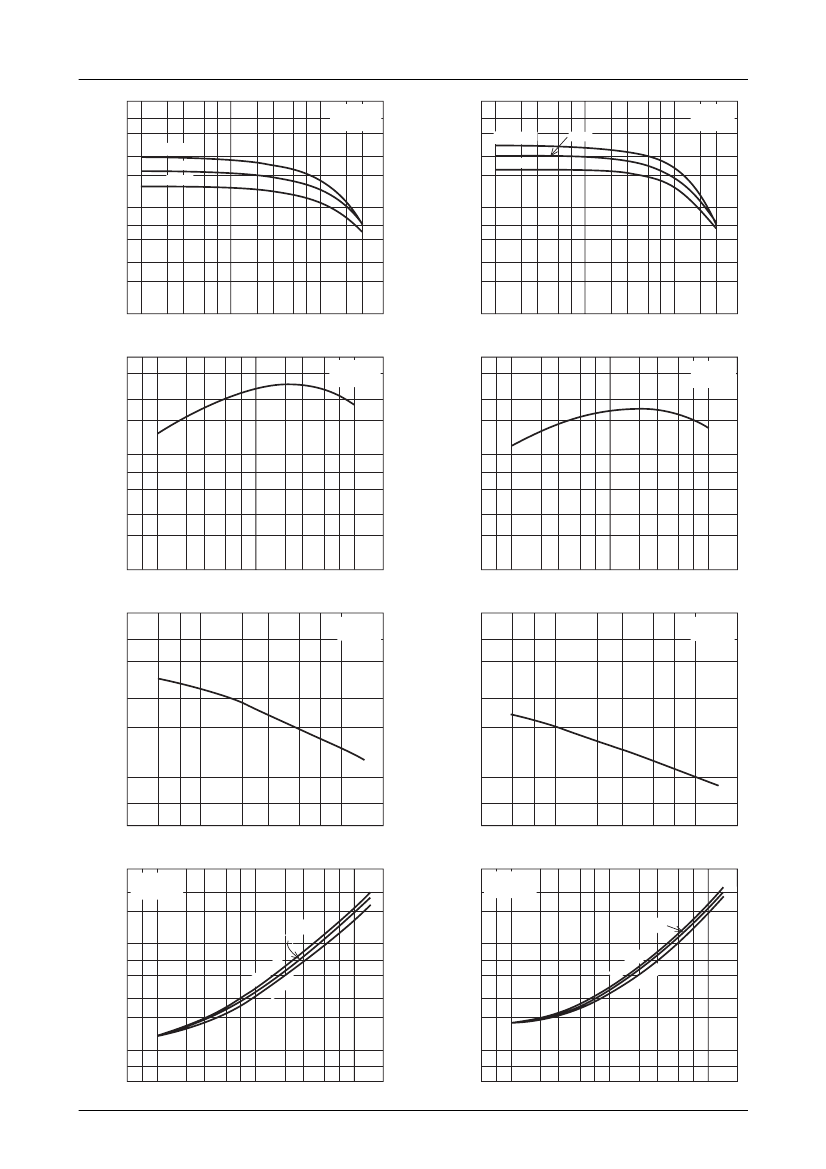

2SA1882/2SC4984

Specifications of any and all SANYO products described or contained herein stipulate the performance,

characteristics, and functions of the described products in the independent state, and are not guarantees

of the performance, characteristics, and functions of the described products as mounted in the customer's

products or equipment. To verify symptoms and states that cannot be evaluated in an independent device,

the customer should always evaluate and test devices mounted in the customer's products or equipment.

SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all

semiconductor products fail with some probability. It is possible that these probabilistic failures could

give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire,

or that could cause damage to other property. When designing equipment, adopt safety measures so

that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective

circuits and error prevention circuits for safe design, redundant design, and structural design.

In the event that any or all SANYO products(including technical data,services) described or

contained herein are controlled under any of applicable local export control laws and regulations,

such products must not be expor ted without obtaining the expor t license from the authorities

concerned in accordance with the above law.

No part of this publication may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying and recording, or any information storage or retrieval system,

or otherwise, without the prior written permission of SANYO Electric Co., Ltd.

Any and all information described or contained herein are subject to change without notice due to

product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification"

for the SANYO product that you intend to use.

Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not

guaranteed for volume production. SANYO believes information herein is accurate and reliable, but

no guarantees are made or implied regarding its use or any infringements of intellectual property rights

or other rights of third parties.

This catalog provides information as of September, 2000. Specifications and information herein are

subject to change without notice.

PS No.4633–5/5
