DEM9PF179A-A101 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DEM9PF179A-A101

Preview

DEM9PF179A-A101: DescriptionD Subminiature Connector, 9 Contact(s), Male, Wire Wrap Terminal, Plug,; CategoryThe connector The connector; File Size149KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DEM9PF179A-A101 Overview

D Subminiature Connector, 9 Contact(s), Male, Wire Wrap Terminal, Plug,

DEM9PF179A-A101 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ITT
Reach Compliance Code	compliant
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Shell surface	CADMIUM
Shell material	STEEL
Housing size	1/E
Termination type	WIRE WRAP
Total number of contacts	9
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

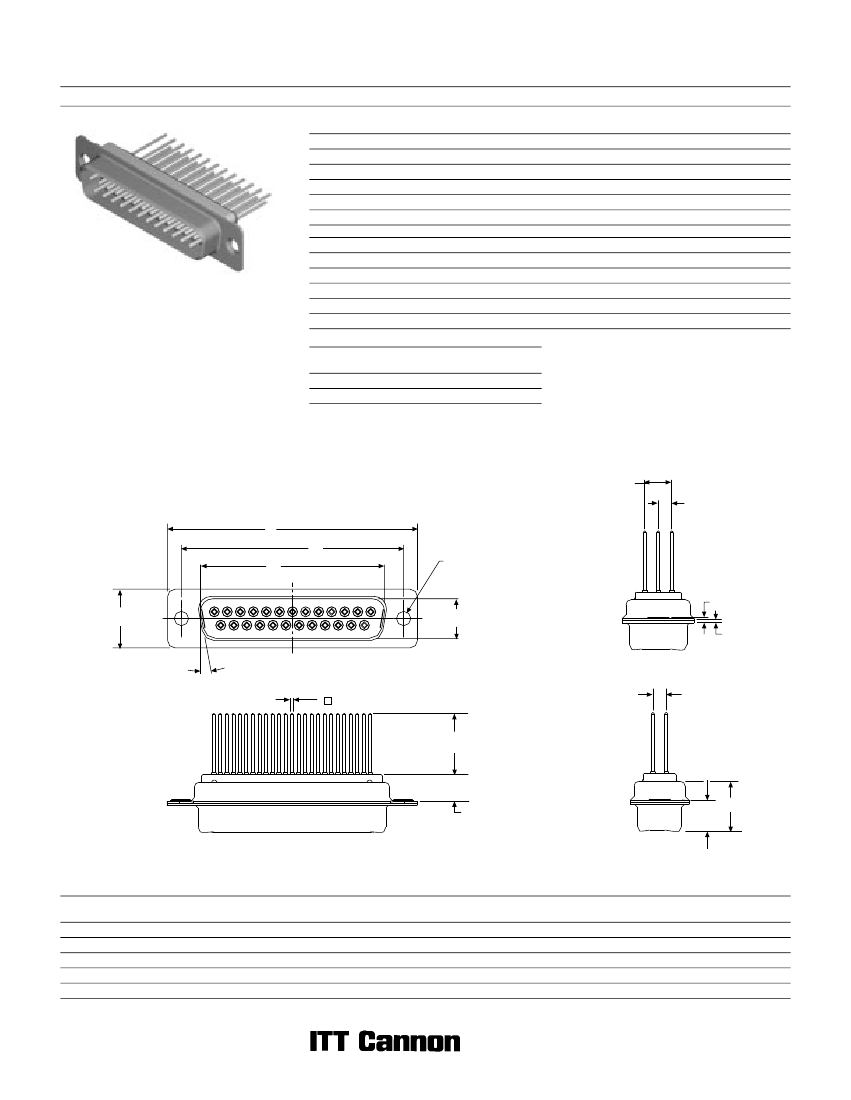

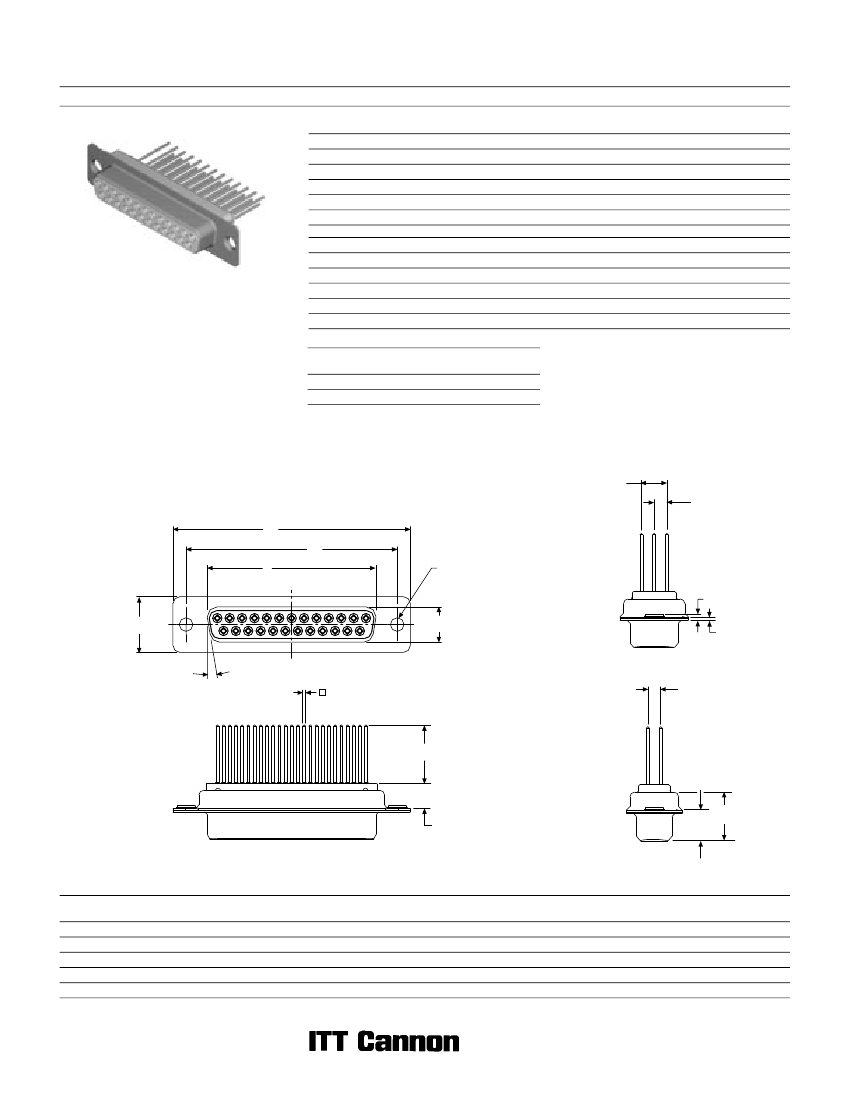

D Subminiature

Wrap Post Connector

Plug

Part Numbers

Shell Size

DE

DA

DB

DC

DD

Shell Size

DE

DA

DB

DC

DD

Number of

Wraps

2

3

Layout

9

15

25

37

50

Layout

9

15

25

37

50

X

±0,51

(.020)

9,60 (.378)

12,90 (.508)

Military/High Reliability

Military Part Numbers

DEMM9PF179

DEMM9PF179A

DAMM15PF179

DAMM15PF179A

DBMM25PF179

DBMM25PF179A

DCMM37PF179

DCMM37PF179A

DDMM50PF179

DDMM50PF179A

Commercial Part Numbers

DEM9PF179

DEM9PF179A

DAM15PF179

DAM15PF179A

DBM25PF179

DBM25PF179A

DCM37PF179

DCM37PF179A

DDM50PF179

DDM50PF179A

Reader’s Resource

For contact cavity arrangements,

see page 224.

For P.C. hole patterns, see page 274.

For panel cutouts, see page 221.

For hardware views (Standard), see page 226.

Modification Code

F179

F179A

DD Configuration

Engaging Face

A

C

B

Ø 3,05

(.120)

5,69

(.224)

2,84

(.112)

K

E

D

L

10°

0,61 (.024)

2,84

(.112)

X

5,99

±

0,38

(.236

±

.015)

W

F

Dimensions

Shell Size

DE

DA

DB

DC

DD

A

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

66,93 (2.635)

B

±0,13

(.005)

16,92 (.666)

25,25 (.994)

38,96 (1.534)

55,42 (2.182)

52,81 (2.079)

C

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

61,11 (2.406)

D

±0,13

(.005)

8,36 (.329)

11,07 (.436)

E

±0,38

(.015)

12,55 (.494)

15,37 (.605)

F

W

K

±0,25

(.010)

±0,368

(.0145)

±0,41

(.016)

±0,317

(.0125)

±0,25

(.010)

10,72 (.422) 6,693 (.2635)

—

1,206 (.0475)

—

10,72 (.422) 6,693 (.2635)

—

1,206 (.0475)

—

10,82 (.426)

—

6,84 (.269)

—

1,52 (.060)

10,82 (.426)

—

6,84 (.269)

—

1,52 (.060)

10,82 (.426)

—

6,84 (.269)

—

1,52 (.060)

L

±0,25

(.010)

0,76 (.030)

0,99 (.039)

138

Dimensions are shown in mm (inch)

Dimensions subject to change
