This document was generated on 06/08/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Description:
0190230005
Active
InsulKrimp™ Quick Disconnect, Male, for 18-22 (0.80-0.35) Wire, Box, Tab 6.35mm
(.250") x 0.81mm (.032")
Documents:
Drawing (PDF)
Product Specification PS-19902-008 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E79133
General
Product Family
Series
Comments
Crimp Quality Equipment
MolexKits
Product Name
Type
Quick Disconnects
19023
Funnel Entry
Yes
Yes
InsulKrimp™
Quick Disconnect
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Physical
Barrel Type
Flammability
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Orientation
Packaging Type
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
94V-2
Male
No
PVC
None
Copper
Straight
Bag
No
0.81mm (.032")
6.35mm (.250")
-50°C to +105°C
3.70mm (.145") max.
18, 20, 22
0.35 - 0.80
Email pro
For a mu
Complian
Please vi
non-prod
Search
19023S
Electrical
Voltage - Maximum
600V
Material Info
Old Part Number
AMCT-2X
Applic
Tooling
found b
Crimp H
contain
Specifi
Global
Descri
Hand C
Crimp H
AT-200
Hand T
Reference - Drawing Numbers
Product Specification

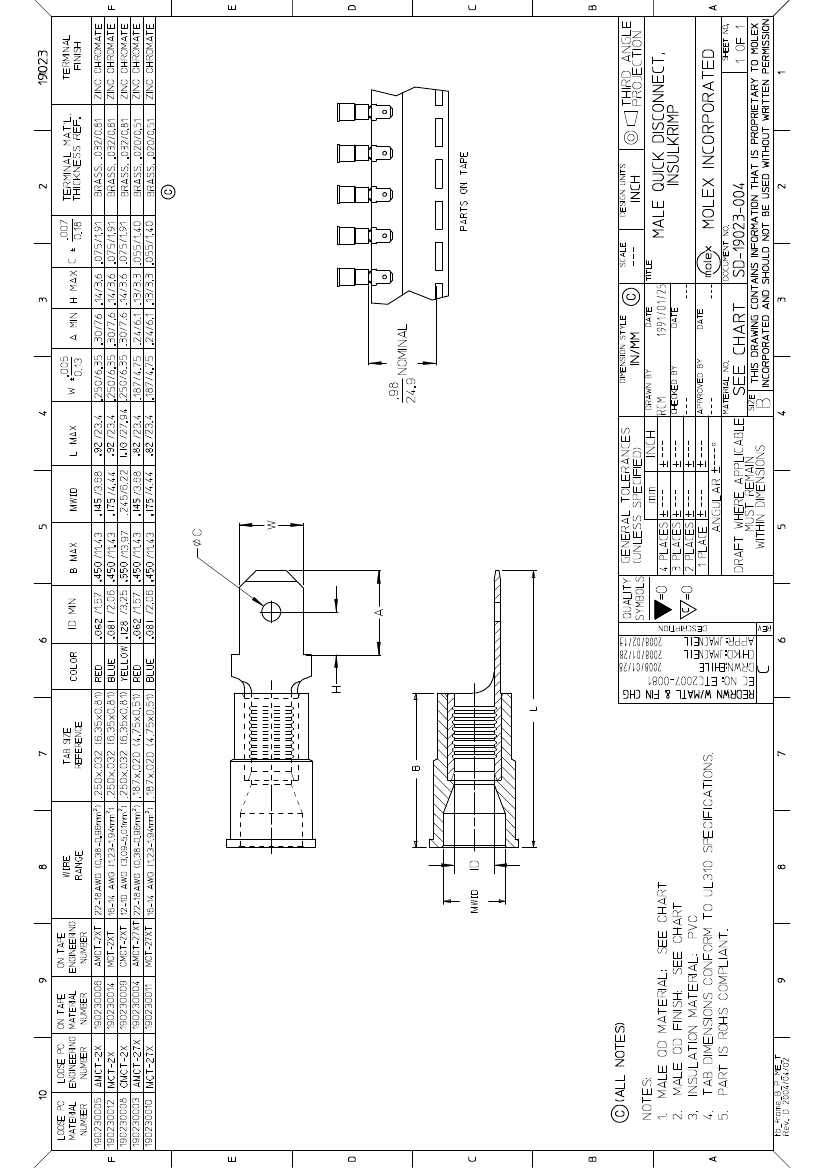

Sales Drawing
PS-19902-008
SD-19023-004
This document was generated on 06/08/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
