PCB3D20A: DescriptionCard Edge Connector, 20 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal; CategoryThe connector The connector; File Size54KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric Compare View All

PCB3D20A Overview

Card Edge Connector, 20 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal

PCB3D20A Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	CARD EDGE CONNECTOR
Contact completed and terminated	BRIGHT TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	PCB3D
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Termination type	SCREW
Total number of contacts	20
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

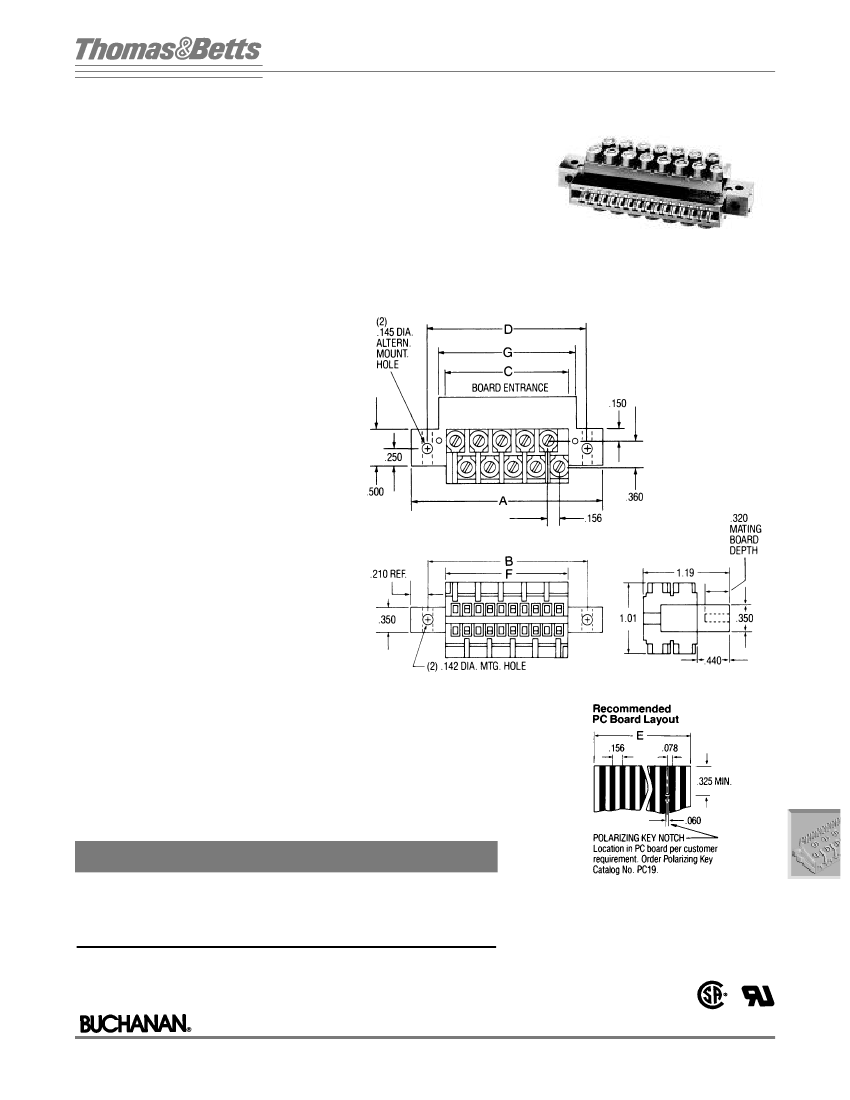

Edge Card Connectors

0.156" PITCH

PCB3D SERIES

P

HYSICAL

P

ROPERTIES

Housing

H

OUSING

M

ATERIAL

:

Polyester

F

LAMMABILITY

:

UL94V-0

C

OLOR

:

Black

Terminal

T

UBULAR

C

ONTACT

:

Brass

PC C

ONTACT

:

Phosphor Bronze

S

CREW

:

Steel with Zinc + Chromate plating

C

LAMP

:

Brass

Mechanical

P

ITCH

(T

ERMINAL

S

PACING

):

.156"

S

CREW

S

IZE

:

6-32

M

OUNTING

S

CREW

S

IZE

:

#6

W

IRE

S

TRIP

L

ENGTH

:

.66"

R

ECOMMENDED

T

IGHTENING

T

ORQUE

:

5-8 in-lbs.

R

ECOMMENDED

S

CREWDRIVERS

:

Xcelite R184,

Sears Craftsman 41429, Stanley 1016

B

OARD

I

NSERTION

F

ORCE

(T

YP

.)

PER

C

KT

.:

5 oz.

(140g)

B

OARD

S

EPARATION

F

ORCE

(T

YP

.)

PER

C

KT

.:

1.5 oz.

(42g)

D

URABILITY

:

Passes MIL-C-21097: 500 cycles

E

LECTRICAL

P

ROPERTIES

M

AXIMUM

C

URRENT

:

10A

O

PERATING

V

OLTAGE

:

250V

W

IRE

R

ANGE

:

#16-26 AWG

D

IELECTRIC

W

ITHSTAND

:

2000V

I

NSULATION

R

ESISTANCE

:

10

11

ohms

C

ONTACT

R

ESISTANCE

:

10 milliohms

E

NVIRONMENTAL

P

ROPERTIES

O

PERATING

T

EMPERATURE

R

ANGE

:

-65ºC to +140ºC

(-85ºF to +284ºF)

Ordering Information

CATALOG

#*

PCB3D20S

PCB3D30S

PCB3D36S

PCB3D44S

NO. OF

CIRCUITS

20

30

36

44

A

2.59

3.37

3.84

4.47

B&D

2.16

2.95

3.41

4.04

C

1.73

2.51

2.98

3.60

E

1.71

2.50

2.97

3.59

F

1.65

2.43

2.90

3.54

G

1.85

2.64

3.11

3.73

*NOTE:

.062" PC Board thickness.

.156" contact centerline spacing for single &

double sided boards.

*NOTE:

For optional Gold-over-Nickel plating on contacts (instead of standard bright tin), change

the letter “S” of the catalog number to “A.”

LR25557

E63810

Thomas & Betts Electronics/OEM Division Tel: 901-252-7766 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in inches.

153

PCB3D20A Related Products

	PCB3D20A	PCB3D44S	PCB3D44A	PCB3D36S	PCB3D36A	PCB3D30A	PCB3D20S	PCB3D30S
Description	Card Edge Connector, 20 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal	Card Edge Connector, 44 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal	Card Edge Connector, 44 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal	Card Edge Connector, 36 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal	Card Edge Connector, 36 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal	Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal	Card Edge Connector, 20 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal	Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact completed and terminated	BRIGHT TIN OVER NICKEL	GOLD OVER NICKEL	BRIGHT TIN OVER NICKEL	GOLD OVER NICKEL	BRIGHT TIN OVER NICKEL	BRIGHT TIN OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e4	e3	e4	e3	e3	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	PCB3D	PCB3D	PCB3D	PCB3D	PCB3D	PCB3D	PCB3D	PCB3D
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1
Termination type	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
Total number of contacts	20	44	44	36	36	30	20	30
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	-	1	1	1	1	1	-	-
