PCB3S22S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PCB3S22S

PCB3S22S: DescriptionCard Edge Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal; CategoryThe connector The connector; File Size47KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric Compare View All

PCB3S22S Overview

Card Edge Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal

PCB3S22S Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	CARD EDGE CONNECTOR
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	PCB3S
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Terminal pitch	3.96 mm
Termination type	SCREW
Total number of contacts	22
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

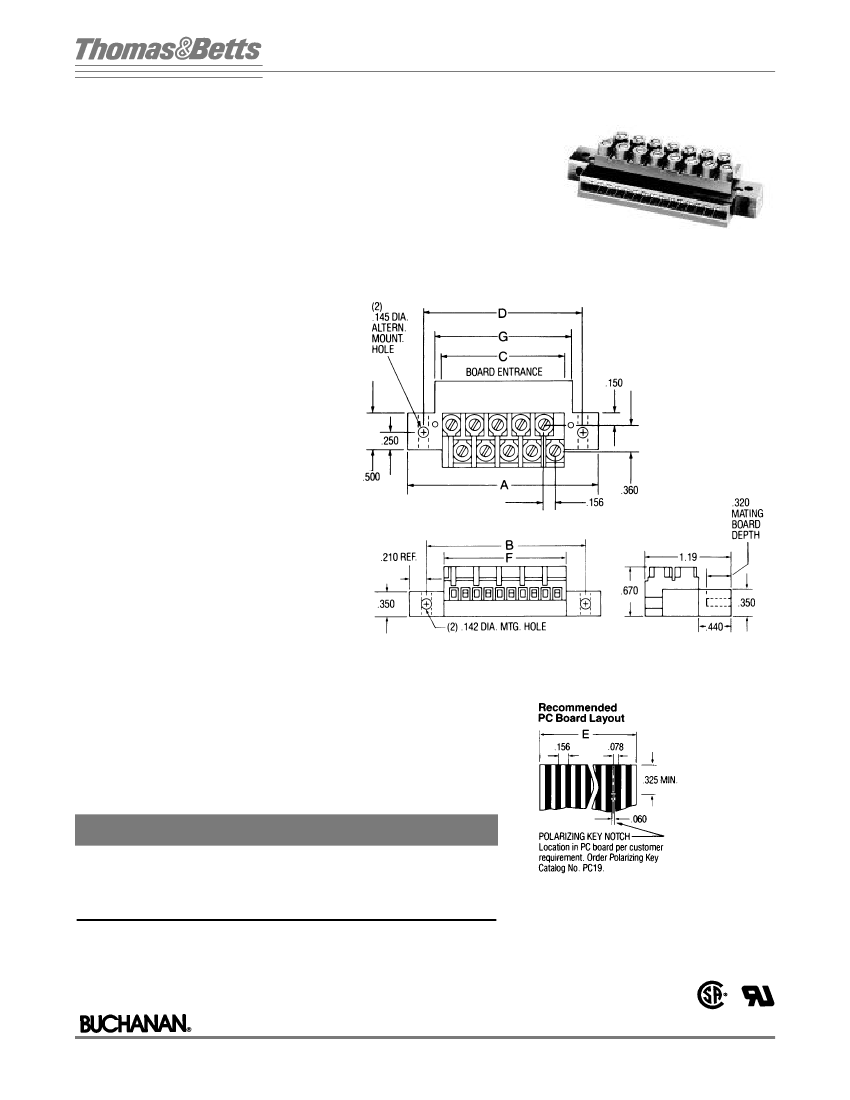

Edge Card Connectors

0.156" PITCH

PCB3S SERIES

HYSICAL

ROPERTIES

Housing

OUSING

ATERIAL

Polyester

LAMMABILITY

UL94V-0

OLOR

Black

Terminal

UBULAR

ONTACT

Brass

PC C

ONTACT

Phosphor Bronze with Bright Tin or

Gold over Nickel plating

CREW

Steel with Zinc + Chromate plating

LAMP

Brass

Mechanical

ITCH

ERMINAL

PACING

.156"

CREW

IZE

6-32

OUNTING

CREW

IZE

IRE

TRIP

ENGTH

.66"

ECOMMENDED

IGHTENING

ORQUE

5-8 in-lbs.

ECOMMENDED

CREWDRIVERS

Xcelite R184,

Sears Craftsman 41429, Stanley 1016

OARD

NSERTION

ORCE

PER

5 oz.

(140g)

OARD

EPARATION

ORCE

PER

1.5 oz.

(42g)

URABILITY

Passes MIL-C-21097: 500 cycles

LECTRICAL

ROPERTIES

AXIMUM

URRENT

10A

PERATING

OLTAGE

250V

IRE

ANGE

#16-26 AWG

IELECTRIC

ITHSTAND

2000V

NSULATION

ESISTANCE

ohms

ONTACT

ESISTANCE

10 milliohms

NVIRONMENTAL

ROPERTIES

PERATING

EMPERATURE

ANGE

-65ºC to +140ºC

(-85ºF to +284ºF)

Ordering Information

CATALOG

PCB3S10S

PCB3S15S

PCB3S18S

PCB3S22S

NO. OF

CIRCUITS

2.59

3.37

3.84

4.47

B&D

2.16

2.95

3.41

4.04

1.73

2.51

2.98

3.60

1.71

2.50

2.97

3.59

1.65

2.43

2.90

3.54

1.85

2.64

3.11

3.73

*NOTE:

.062" PC Board thickness.

.156" contact centerline spacing for single &

double sided boards.

*NOTE:

For optional Gold-over-Nickel plating on contacts (instead of standard bright tin), change

the letter “S” of the catalog number to “A.”.

LR25557

E63810

Thomas & Betts Electronics/OEM Division Tel: 901-252-7766 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in inches.

152

PCB3S22S Related Products

	PCB3S22S	PCB3S10S	PCB3S10A	PCB3S18A	PCB3S18S	PCB3S15A	PCB3S15S	PCB3S22A
Description	Card Edge Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal	Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal	Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal	Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal	Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal	Card Edge Connector, 15 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal	Card Edge Connector, 15 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal	Card Edge Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, Screw Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	PCB3S	PCB3S	PCB3S	PCB3S	PCB3S	PCB3S	PCB3S	PCB3S
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1
Termination type	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
Total number of contacts	22	10	10	18	18	15	15	22
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	BRIGHT TIN OVER NICKEL	-	GOLD OVER NICKEL	BRIGHT TIN OVER NICKEL	GOLD OVER NICKEL	BRIGHT TIN OVER NICKEL
JESD-609 code	e4	e4	e3	-	e4	e3	e4	e3
Base Number Matches	-	1	1	1	1	1	-	-
