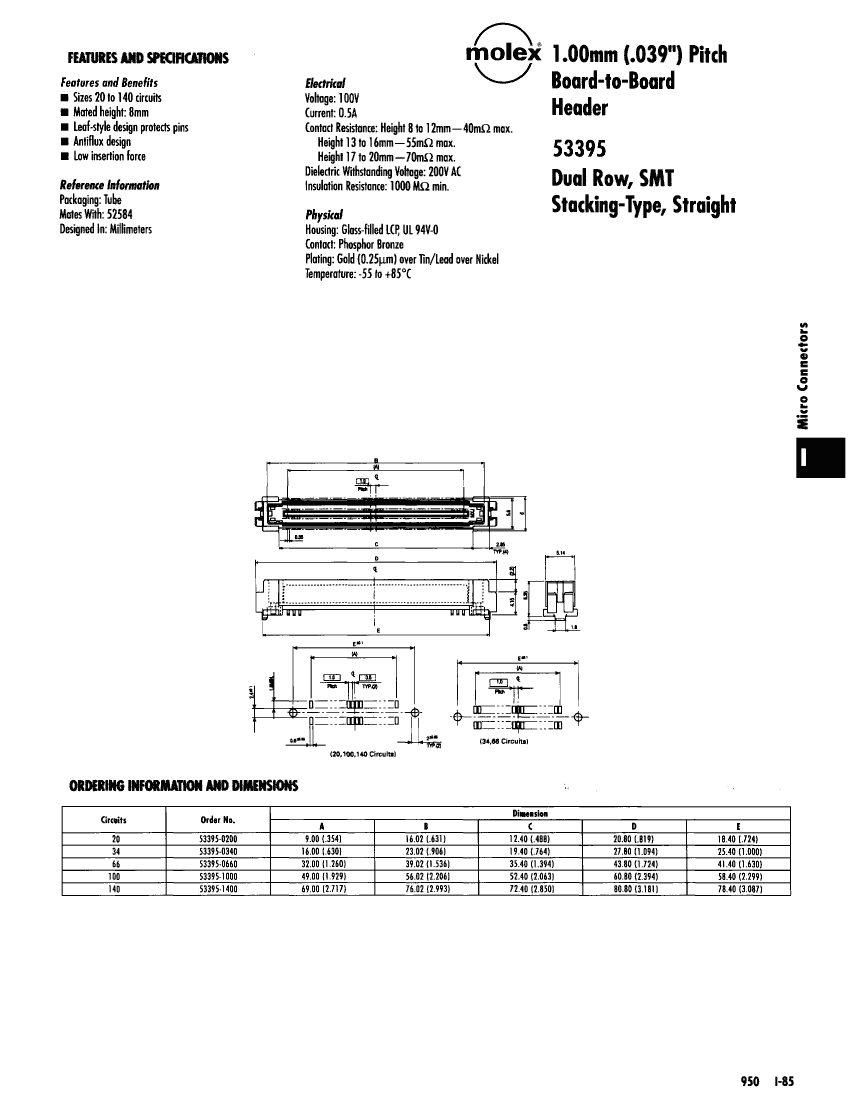

53395-1400: DescriptionBoard Connector, 140 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size27KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

53395-1400 Overview

Board Connector, 140 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	53395
Plug information	52584-1400
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	140
UL Flammability Code	94V-0

	53395-1400	53395-1000	53395-0200	53395-0340	53395-0660
Description	Board Connector, 140 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 66 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal
Maker	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	53395	53395	53395	53395	53395
Plug information	52584-1400	52584-1000	52584-0200	52584-0340	52584-0660
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	140	100	20	34	66
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
