53397-0840 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 53397-0840

Preview

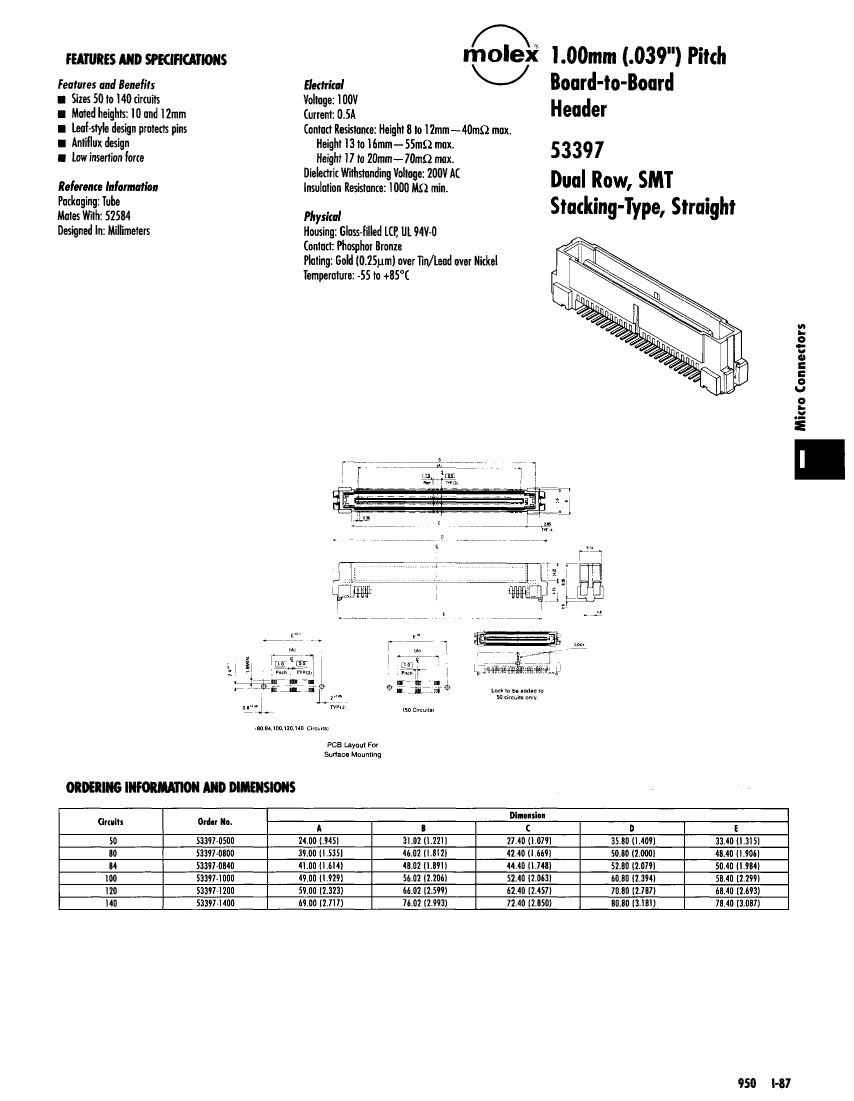

53397-0840: DescriptionBoard Connector, 84 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size35KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

53397-0840 Overview

Board Connector, 84 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

53397-0840 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	53397
Plug information	52584-0840
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	84
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

53397-0840 Related Products

	53397-0840	53397-1000	53397-1200	53397-1400	53397-0500	53397-0800
Description	Board Connector, 84 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 120 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 140 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal
Maker	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	53397	53397	53397	53397	53397	53397
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	84	100	120	140	50	80
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Plug information	52584-0840	52584-1000	52584-1200	52584-1400	-	52584-0800
