2SB829-Q datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SB829-Q

2SB829-Q: DescriptionPower Bipolar Transistor, 15A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, TO-3PB, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size37KB，4 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

2SB829-Q Overview

Power Bipolar Transistor, 15A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, TO-3PB, 3 PIN

2SB829-Q Parametric

Parameter Name	Attribute value
Objectid	1986269592
Parts packaging code	TO-3PB
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	15 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	70
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Maximum power dissipation(Abs)	90 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	20 MHz

Preview

Download Datasheet

View All

Ordering number:ENN825C

PNP/NPN Epitaxial Planar Silicon Tranasistors

2SB829/2SD1065

50V/15A Switching Applications

Applications

· Relay drivers, high-speed inverters, converters, and

other general high-current switching applications.

Package Dimensions

unit:mm

2022A

[2SD829/2SD1065]

15.6

14.0

2.6

3.2

3.5

4.8

Features

· Low-saturation collector-to-emitter voltage :

CE(sat)

=–0.5V max.

· Wide ASO leading to high resistance to breakdown.

2.0

1.6

2.0

20.0

0.6

1.0

0.6

1.3

1.2

15.0

20.0

( ) : 2SB829

Specifications

Absolute Maximum Ratings

at Ta = 25˚C

Parameter

Collector-to-Base Voltage

Collector-to-Emitter Voltage

Emitter-to-Base Voltage

Collector Current

Collector Current (Pulse)

Collector Dissipation

Junction Temperature

Storage Temperature

Symbol

VCBO

VCEO

VEBO

ICP

Tstg

Conditions

5.45

1 : Base

2 : Collector

3 : Emitter

SANYO : TO-3PB

1.4

Ratings

(–)60

(–)50

(–)6

(–)15

(–)20

Unit

˚C

Tc=25˚C

150

–55 to +150

˚C

Electrical Characteristics

at Ta = 25˚C

Parameter

Collector Cutoff Current

Emitter Cutoff Current

DC Current Gain

Gain-Bandwidth Product

Collector-to-Emitter Saturation Voltage

Symbol

ICBO

IEBO

hFE1

hFE2

VCE(sat)

VCB=(–)40V, IE=0

VEB=(–)4V, IC=0

VCE=(–)2V, IC=(–)1A

VCE=(–)2V, IC=(–)8A

VCE=(–)5V, IC=(–)1A

IC=(–)8A, IB=(–)0.4A

70*

(–0.26)

0.18

(–0.5)

0.4

MHz

Conditions

Ratings

min

typ

max

(–)0.1

280*

Unit

* : The 2SB829/2SD1065 are classified by 1A h

as follows :

Rank

hFE

70 to 140

100 to 200

140 to 280

Continued on next page.

Any and all SANYO products described or contained herein do not have specifications that can handle

applications that require extremely high levels of reliability, such as life-support systems, aircraft’s

control systems, or other applications whose failure can be reasonably expected to result in serious

physical and/or material damage. Consult with your SANYO representative nearest you before using

any SANYO products described or contained herein in such applications.

SANYO assumes no responsibility for equipment failures that result from using products at values that

exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other

parameters) listed in products specifications of any and all SANYO products described or contained

herein.

SANYO Electric Co.,Ltd. Semiconductor Company

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN

O0303TN (KT)/91098HA (KT)/10996TS (KOTO) 8-3880/4017KI/3145KI No.825–1/4

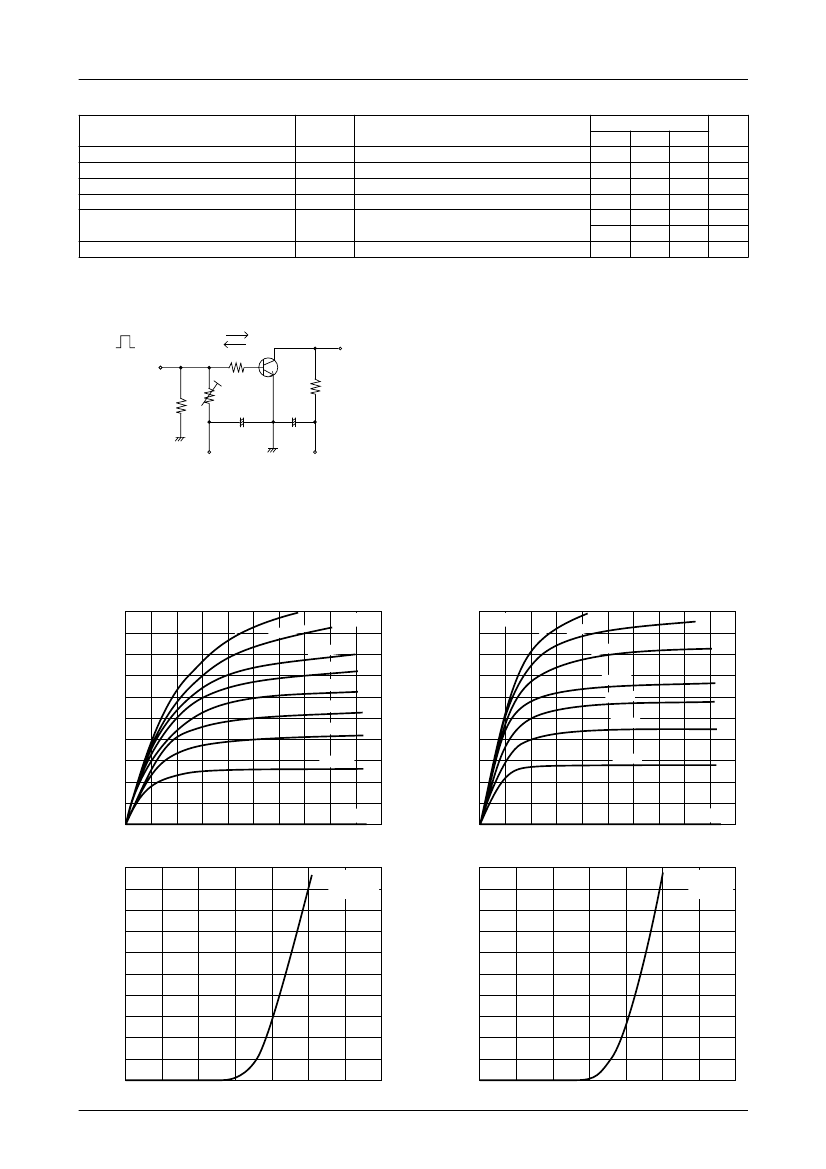

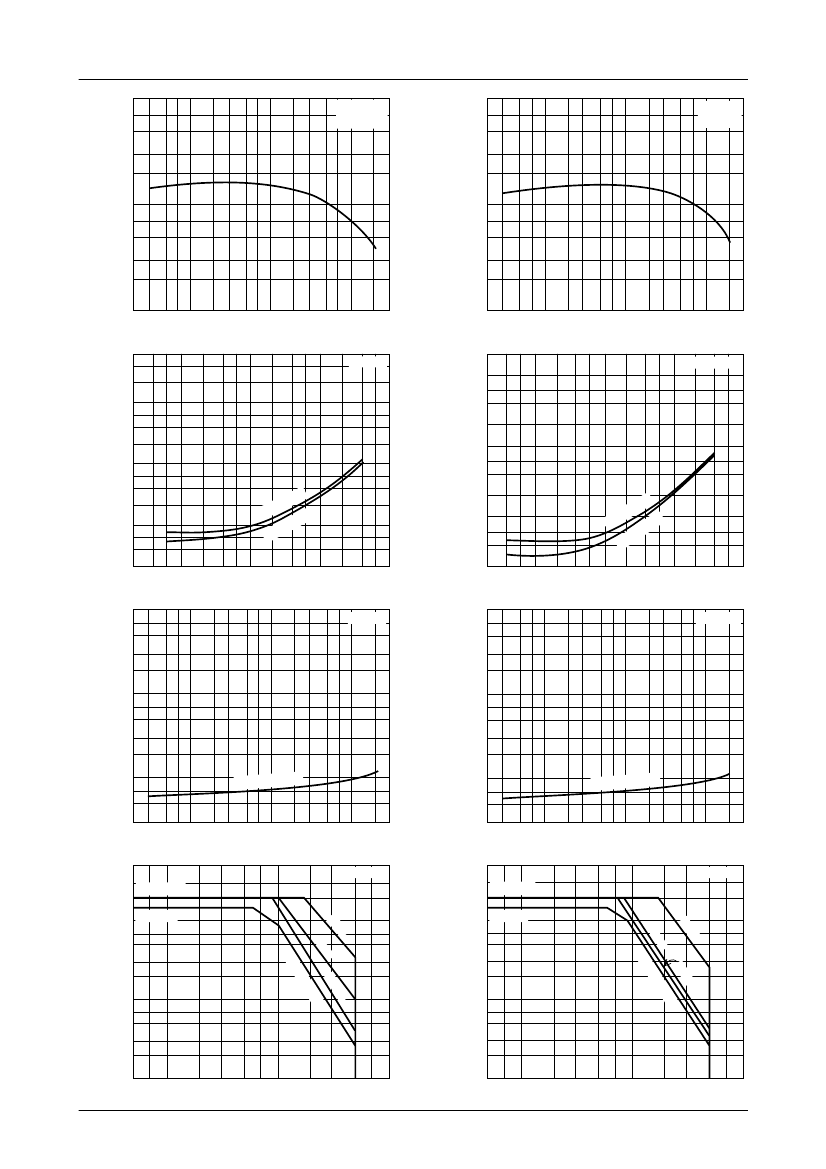

2SB829/2SD1065

100

PC -- Tc

2SB829 / 2SD1065

Collector Dissipation, P

– W

100

120

140

160

Case Temperature, Tc – ˚C

ITR08507

Specifications of any and all SANYO products described or contained herein stipulate the performance,

characteristics, and functions of the described products in the independent state, and are not guarantees

of the performance, characteristics, and functions of the described products as mounted in the customer's

products or equipment. To verify symptoms and states that cannot be evaluated in an independent device,

the customer should always evaluate and test devices mounted in the customer's products or equipment.

SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all

semiconductor products fail with some probability. It is possible that these probabilistic failures could

give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire,

or that could cause damage to other property. When designing equipment, adopt safety measures so

that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective

circuits and error prevention circuits for safe design, redundant design, and structural design.

In the event that any or all SANYO products(including technical data,services) described or

contained herein are controlled under any of applicable local export control laws and regulations,

such products must not be expor ted without obtaining the expor t license from the authorities

concerned in accordance with the above law.

No part of this publication may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying and recording, or any information storage or retrieval system,

or otherwise, without the prior written permission of SANYO Electric Co., Ltd.

Any and all information described or contained herein are subject to change without notice due to

product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification"

for the SANYO product that you intend to use.

Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not

guaranteed for volume production. SANYO believes information herein is accurate and reliable, but

no guarantees are made or implied regarding its use or any infringements of intellectual property rights

or other rights of third parties.

This catalog provides information as of October, 2003. Specifications and information herein are subject

to change without notice.

PS No.825–4/4
