Ordering number:825C
PNP/NPN Epitaxial Planar Silicon Tranasistors
2SB829/2SD1065
50V/15A Switching Applications
Applications
· Relay drivers, high-speed inverters, converters, and
other general high-current switching applications.
Package Dimensions
unit:mm
2022A
[2SD829/2SD1065]
Features
· Low-saturation collector-to-emitter voltage :
V
CE(sat)
=–0.5V max.
· Wide ASO leading to high resistance to breakdown.
( ) : 2SB829
1 : Base
2 : Collector
3 : Emitter
SANYO : TO-3PB
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
PC
Tj
Tstg
Conditions
Ratings
(–)60
(–)50
(–)6
(–)15
(–)20
Unit
V
V
V
A
A
W
˚C
Tc=25˚C
90
150
–55 to +150
˚C
Electrical Characteristics
at Ta = 25˚C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Collector-to-Emitter Saturation Voltage
Symbol
ICBO
IEBO
hFE1
hFE2
fT
VCE(sat)
VCB=(–)40V, IE=0
VEB=(–)4V, IC=0
VCE=(–)2V, IC=(–)1A
VCE=(–)2V, IC=(–)8A
VCE=(–)5V, IC=(–)1A
IC=(–)8A, IB=(–)0.4A
70*
30
20
(–0.26)
0.18
(–0.5)
0.4
MHz
V
V
Conditions
Ratings
min
ty p
max
(–)0.1
(–)0.1
280*
Unit
mA
mA
* : The 2SB829/2SD1065 are classified by 1A h
FE
as follows :
70
Q
140
100
R
200
140
S
280
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft’s
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquaters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
91098HA (KT)/10996TS (KOTO) 8-3880/4017KI/3145KI No.825–1/4
2SB829/2SD1065
Parameter
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Emitter-to-Base Breakdown Voltage
Turn-ON Time
Fall Time
Storage Time
Symbol
V(BR)CBO IC=(–)1mA, IE=0
V(BR)CEO IC=(–)1mA, RBE=∞
V(BR)EBO IE=(–)1mA, IC=0
ton
tf
tstg
See specified Test Circuit
See specified Test Circuit
See specified Test Circuit
Conditions
Ratings
min
(–)60
(–)50
(–)6
0. 2
(0.5)
1.0
0.1
ty p
max
Unit
V
V
V
µs
µs
µs
µs

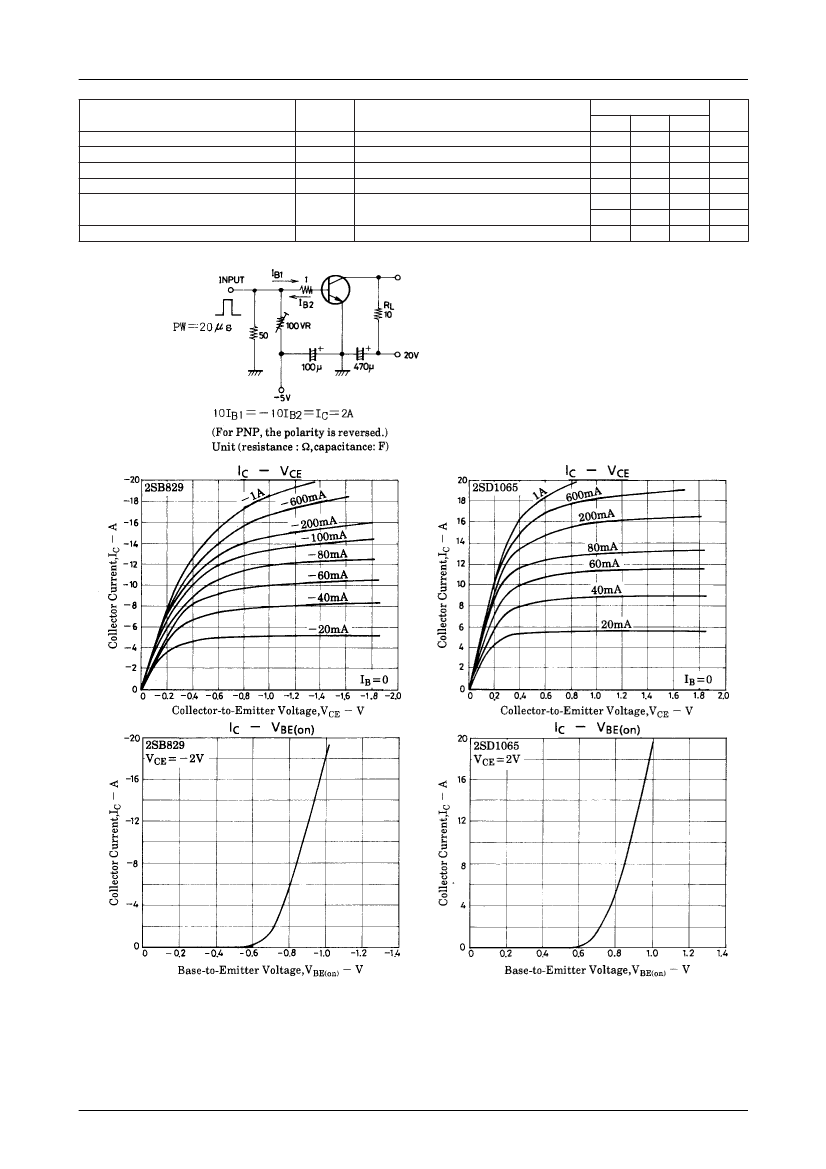

Switching Time Test Circuit
