KC7050B07.9000C3PA00 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> KC7050B07.9000C3PA00

KC7050B07.9000C3PA00: DescriptionXO, Clock, CRYSTAL OSCILLATOR, CLOCK, 7.9 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size124KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric Compare View All

KC7050B07.9000C3PA00 Overview

XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 7.9 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4

KC7050B07.9000C3PA00 Parametric

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Other features	ENABLE/DISABLE FUNCTION
maximum descent time	16 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Manufacturer's serial number	KC7050B
Installation features	SURFACE MOUNT
Nominal operating frequency	7.9 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.8mm
longest rise time	16 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

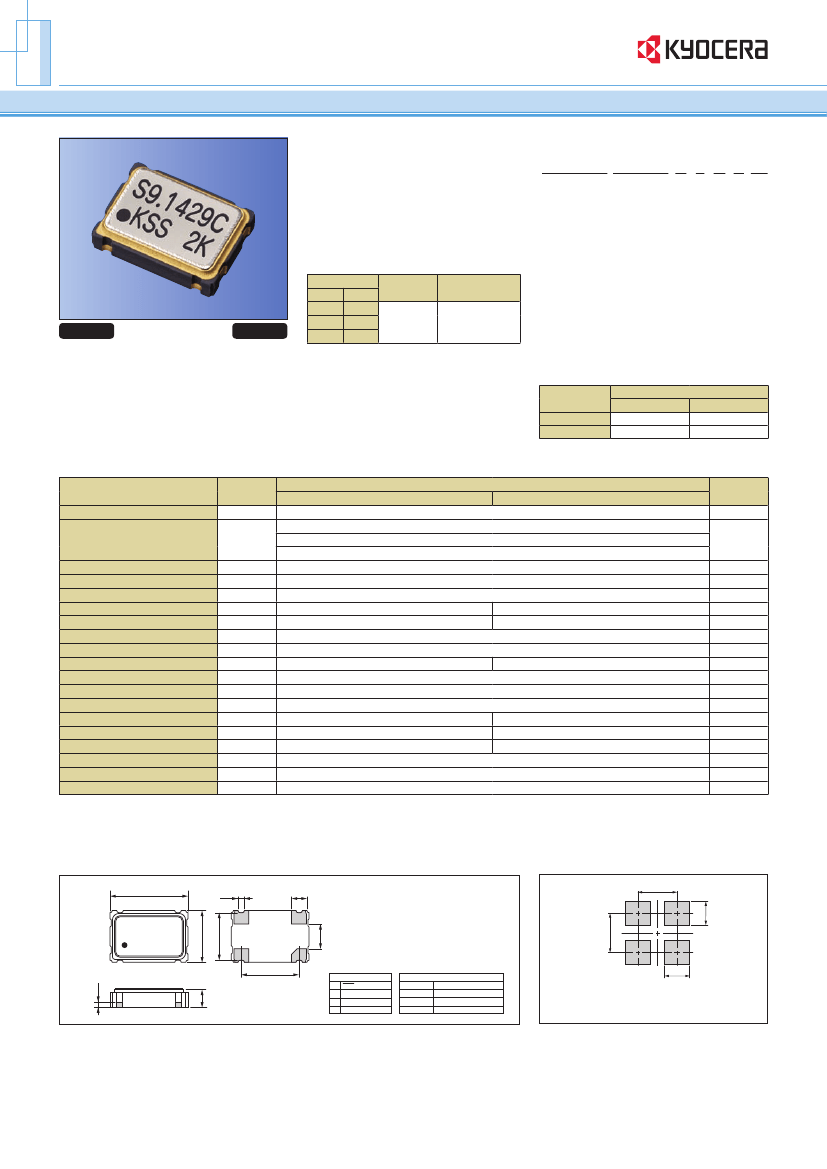

Clock Oscillators Surface Mount Type

KC7050B Series (FXO-34F Series)

CMOS/ 3.3V/ 5.0V/ 7.0×5.0mm

Features

• This crystal oscillator has a built-in

high-precision CMOS IC suitable for a wide

range of temperature

• Lower noise and lower current for reduced

power consumption

• Supply voltage V

=3.3/

5.0V available

How to Order

KC7050B 25.0000 C 3 Q B 00

①

②

③④⑤⑥ ⑦

①

Type

②

Output Frequency

③

Output Type (CMOS)

④

Supply Voltage 5=5.0V, 3=3.3V

⑤

Frequency Tolerance (See Table at Left)

⑥

Symmetry/ Enable Function

A: 40/ 60%, Disable

B: 40/ 60%, Stand-by

⑦

Customer Special Model Suffix

(STD Specification is “00”)

Frequency Tolerance (Overall)

Operating

Freq. Tol.

Temperature

Note

Code

-6

Range (°C)

±100

-30

+85

1.8 to 32MHz

(Standard)

Pb Free

RoHS Compliant

Symmetry/ Enable Function

Freq.

(MHz)

1.8 to 7.9

to 32

Code

KC7050B-C5 KC7050B-C3

Specifications

Item

Output Frequency Range

Frequency Tolerance (Overall)

Storage Temperature Range

Operating Temperature Range

Max. Supply Voltage

Supply Voltage

Current Consumption

Stand-by Current

Symmetry

Rise/ Fall Time

Low Level Output Voltage

High Level Output Voltage

CMOS Load

Input Voltage Range

Low Level Input Voltage

High Level Input Voltage

Disable Time

Enable Time

Start-up Time

Symbol

_tol

_stg

_use

—

_std

SYM

tr/ tf

L_CMOS

_dis

_ena

_str

Specifications

KC7050Bxx.xxxxC5xx00 (FXO-34F)

KC7050Bxx.xxxxC3xx00 (FXO-34FL)

1.8 to 32

±30

±50

±100

-40

+85

-30

+85

7 max.

5±5%

3.3±5%

12 max.

10 max.

8 max.

40 to 60@50%V

12 max.

16 max.

10% V

max.

90% V

min.

15 max.

0 to V

0.8 max.

0.3 max.

2.2 min.

150 max.

5 max.

10 max.

Units

MHz

×10

-6

°C

µA

Note: All electrical characteristics are defined at the maximum load and operating temperature range.

Please contact us for inquiry about operating temperature range, available frequencies and other conditions.

Dimensions

7.0

0.6

1.4

(Unit: mm)

Recommended Land Pattern

5.1

2.0

(Unit: mm)

5.0

4.6

②

①

5.1

Pad Connections

①

INH

②

GND

③

Output

④

Enable/ Disable Function

Pad1

Pad3 (Output)

Open

Active

"H" Level

Active

"L" Level High Z (No-Oscillation)

0.6

2.6

4.2

③

④

Plating: Ni Au

Tolerance: 0.1

1.8

Note: A capacitor of value 0.01 F between V

and GND is recommended.

1.8

KC7050B07.9000C3PA00 Related Products

	KC7050B07.9000C3PA00	KC7050B07.9000C5QA00	KC7050B07.9000C3RA00	KC7050B01.8000C5PA00
Description	XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 7.9 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4	XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 7.9 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4	XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 7.9 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4	XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 1.8 MHz, CMOS OUTPUT, ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	ENABLE/DISABLE FUNCTION	ENABLE/DISABLE FUNCTION	ENABLE/DISABLE FUNCTION	ENABLE/DISABLE FUNCTION
maximum descent time	16 ns	12 ns	16 ns	12 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO
frequency stability	100%	50%	30%	100%
JESD-609 code	e4	e4	e4	e4
Manufacturer's serial number	KC7050B	KC7050B	KC7050B	KC7050B
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	7.9 MHz	7.9 MHz	7.9 MHz	1.8 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C
Oscillator type	CMOS	CMOS	CMOS	CMOS
Output load	15 pF	15 pF	15 pF	15 pF
physical size	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm	7.0mm x 5.0mm x 1.8mm
longest rise time	16 ns	12 ns	16 ns	12 ns
Maximum supply voltage	3.465 V	5.25 V	3.465 V	5.25 V
Minimum supply voltage	3.135 V	4.75 V	3.135 V	4.75 V
Nominal supply voltage	3.3 V	5 V	3.3 V	5 V
surface mount	YES	YES	YES	YES
maximum symmetry	40/60 %	40/60 %	40/60 %	40/60 %
Terminal surface	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)
Maker	Kyocera	-	Kyocera	Kyocera
