AD581JH: DescriptionVoltage Reference, 1 Output, 10V, BIPolar, MBCY3, METAL CAN, TO-39, 3 PIN; CategoryPower/power management The power supply circuit; File Size320KB，6 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

AD581JH Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AD581JH	-	-	View	Buy Now

AD581JH Overview

Voltage Reference, 1 Output, 10V, BIPolar, MBCY3, METAL CAN, TO-39, 3 PIN

AD581JH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
package instruction	METAL CAN, TO-39, 3 PIN
Reach Compliance Code	not_compliant
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output voltage	10.03 V
Minimum output voltage	9.97 V
Nominal output voltage	10 V
Package body material	METAL
Encapsulate equivalent code	CAN3/4,.2
Package shape	ROUND
Package form	CYLINDRICAL
Maximum supply voltage (Vsup)	30 V
Minimum supply voltage (Vsup)	12.5 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Maximum voltage temperature coefficient	30 ppm/°C
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Fine-tuning/adjustable output	NO
Maximum voltage tolerance	0.3%

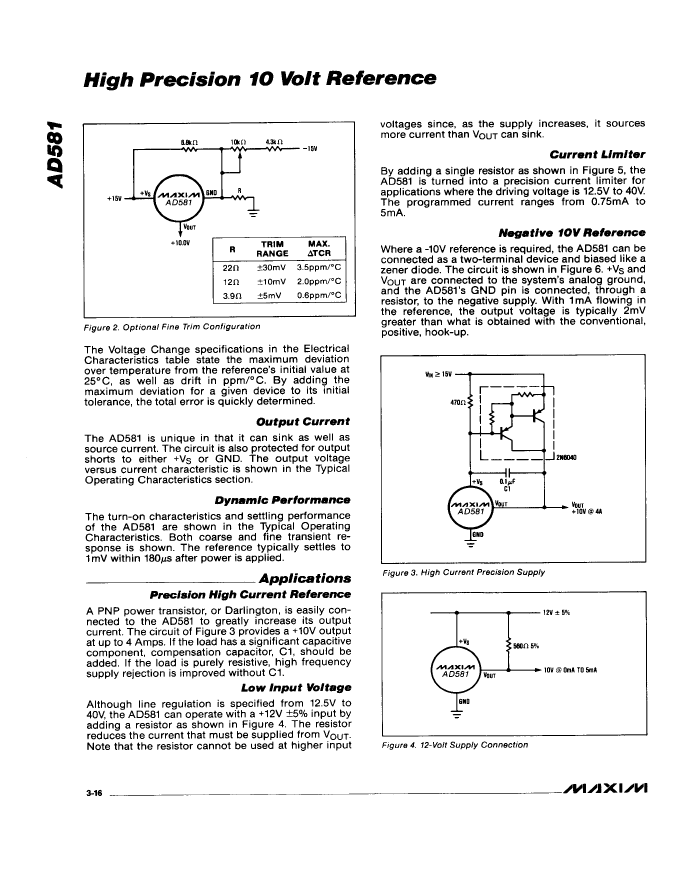

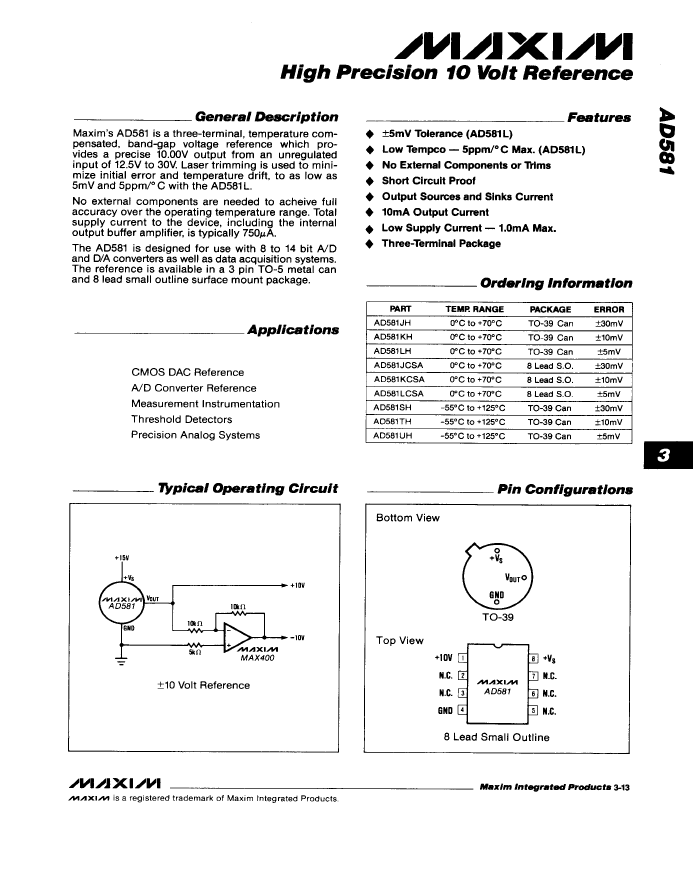

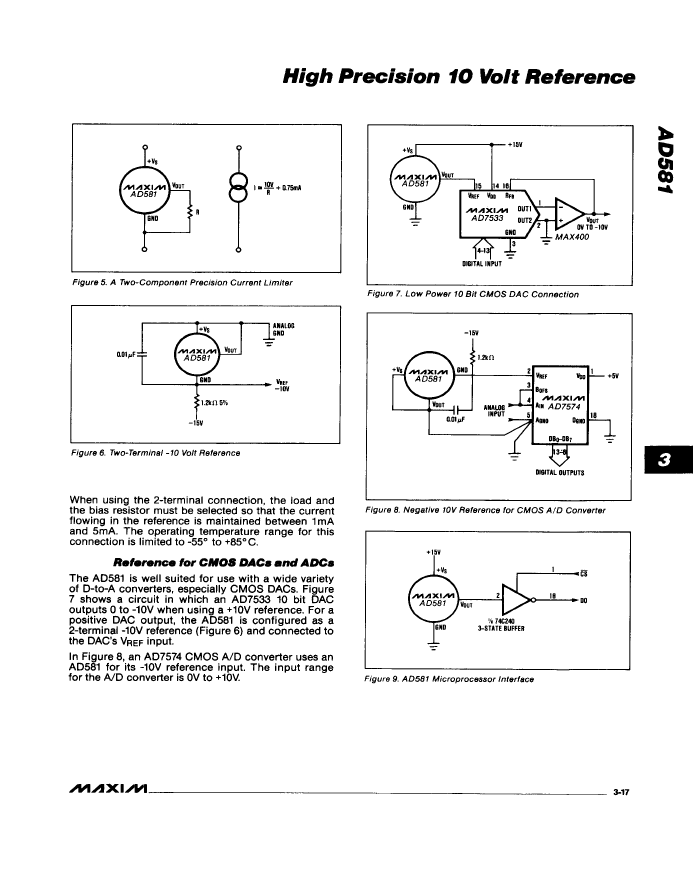

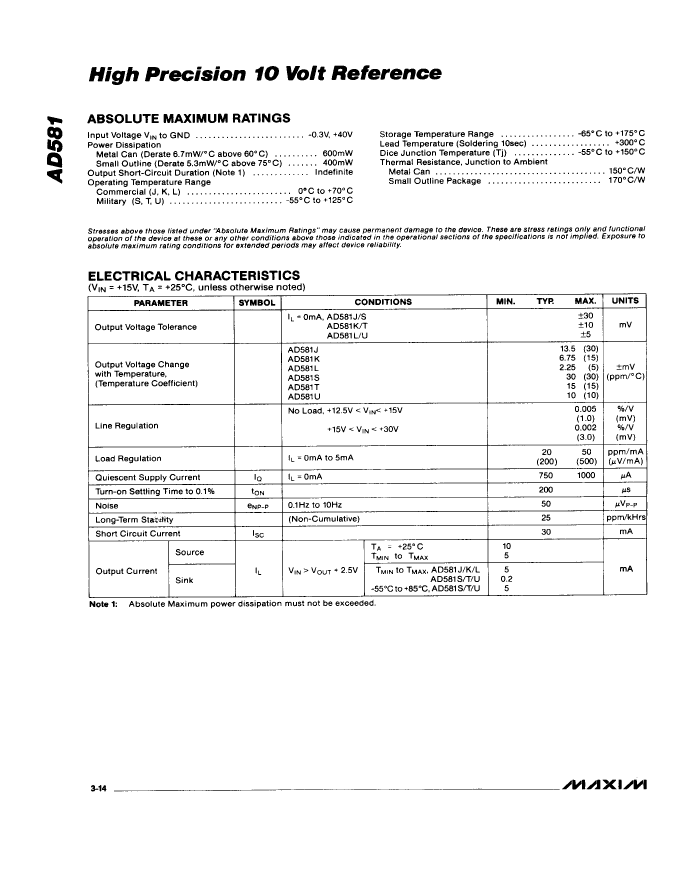

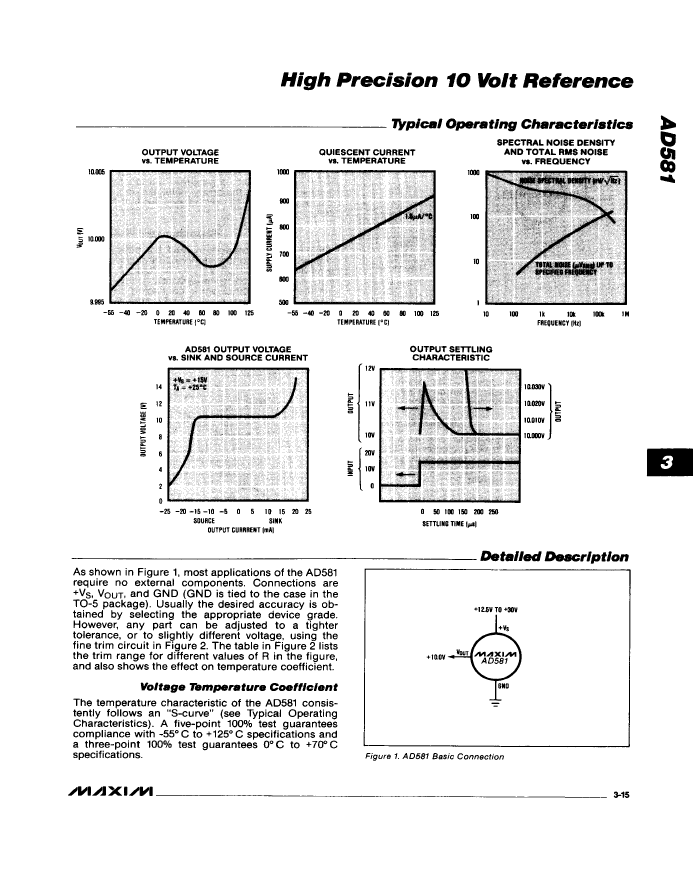

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

AD581JH Related Products

	AD581JH	AD581UH	AD581LH	AD581LCSA	AD581SH	AD581TH	AD581KH	AD581JCSA	AD581KCSA
Description	Voltage Reference, 1 Output, 10V, BIPolar, MBCY3, METAL CAN, TO-39, 3 PIN	Voltage Reference, 1 Output, 10V, BIPolar, MBCY3, METAL CAN, TO-39, 3 PIN	Voltage Reference, 1 Output, 10V, BIPolar, MBCY3, METAL CAN, TO-39, 3 PIN	Voltage Reference, 1 Output, 10V, BIPolar, PDSO8, SOP-8	Voltage Reference, 1 Output, 10V, BIPolar, MBCY3, METAL CAN, TO-39, 3 PIN	Voltage Reference, 1 Output, 10V, BIPolar, MBCY3, METAL CAN, TO-39, 3 PIN	Voltage Reference, 1 Output, 10V, BIPolar, MBCY3, METAL CAN, TO-39, 3 PIN	Voltage Reference, 1 Output, 10V, BIPolar, PDSO8, SOP-8	Voltage Reference, 1 Output, 10V, BIPolar, PDSO8, SOP-8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim
package instruction	METAL CAN, TO-39, 3 PIN	METAL CAN, TO-39, 3 PIN	METAL CAN, TO-39, 3 PIN	SOP, SOP8,.25	METAL CAN, TO-39, 3 PIN	METAL CAN, TO-39, 3 PIN	METAL CAN, TO-39, 3 PIN	SOP, SOP8,.25	SOP, SOP8,.25
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	-	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e0	-	e0	e0	e0	e0	e0
Number of functions	1	1	1	-	1	1	1	1	1
Output times	1	1	1	-	1	1	1	1	1
Number of terminals	3	3	3	-	3	3	3	8	8
Maximum operating temperature	70 °C	125 °C	70 °C	-	125 °C	125 °C	70 °C	70 °C	70 °C
Maximum output voltage	10.03 V	10.005 V	10.005 V	-	10.03 V	10.01 V	10.01 V	10.03 V	10.01 V
Minimum output voltage	9.97 V	9.995 V	9.995 V	-	9.97 V	9.99 V	9.99 V	9.97 V	9.99 V
Nominal output voltage	10 V	10 V	10 V	-	10 V	10 V	10 V	10 V	10 V
Package body material	METAL	METAL	METAL	-	METAL	METAL	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	CAN3/4,.2	CAN3/4,.2	CAN3/4,.2	-	CAN3/4,.2	CAN3/4,.2	CAN3/4,.2	SOP8,.25	SOP8,.25
Package shape	ROUND	ROUND	ROUND	-	ROUND	ROUND	ROUND	RECTANGULAR	RECTANGULAR
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	-	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	SMALL OUTLINE	SMALL OUTLINE
Maximum supply voltage (Vsup)	30 V	30 V	30 V	-	30 V	30 V	30 V	30 V	30 V
Minimum supply voltage (Vsup)	12.5 V	12.5 V	12.5 V	-	12.5 V	12.5 V	12.5 V	12.5 V	12.5 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	-	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	-	NO	NO	NO	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage temperature coefficient	30 ppm/°C	10 ppm/°C	5 ppm/°C	-	30 ppm/°C	15 ppm/°C	15 ppm/°C	30 ppm/°C	15 ppm/°C
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	-	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	-	WIRE	WIRE	WIRE	GULL WING	GULL WING
Terminal location	BOTTOM	BOTTOM	BOTTOM	-	BOTTOM	BOTTOM	BOTTOM	DUAL	DUAL
Fine-tuning/adjustable output	NO	NO	NO	-	NO	NO	NO	NO	NO
Maximum voltage tolerance	0.3%	0.05%	0.05%	-	0.3%	0.1%	0.1%	0.3%	0.1%
