5229-09CPB

Description
2.54mm (.100) Vertical, Non-ZIF, Low Profile Receptacle, 9 Circuits
File Size128KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

5229-09CPB Overview

2.54mm (.100) Vertical, Non-ZIF, Low Profile Receptacle, 9 Circuits

This document was generated on 06/04/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0022023093
Active
2.54mm (.100") Vertical, Non-ZIF, Low Profile Receptacle, 9 Circuits
Agency Certification
UL
E29179
General
Product Family
Series
Overview
Product Name
FFC/FPC Connectors
5229
ffc_fpc_throughhole
N/A
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Physical
Circuits (Loaded)
Contact Position
Entry Angle
Flammability
Mated Height (in)
Mated Height (mm)
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
9
N/A
Vertical
94V-0
0.256 In
6.50 mm
1
Vertical
0.142 In
3.60 mm
None
Tray
0.100 In
2.54 mm
No
No
No
-40°C to +105°C
Through Hole
FFC/FPC
Please vi
non-prod
Search
5229Se
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A, 1A
200V
Material Info
Old Part Number
5229-09CPB
Reference - Drawing Numbers
Packaging Specification
Product Specification

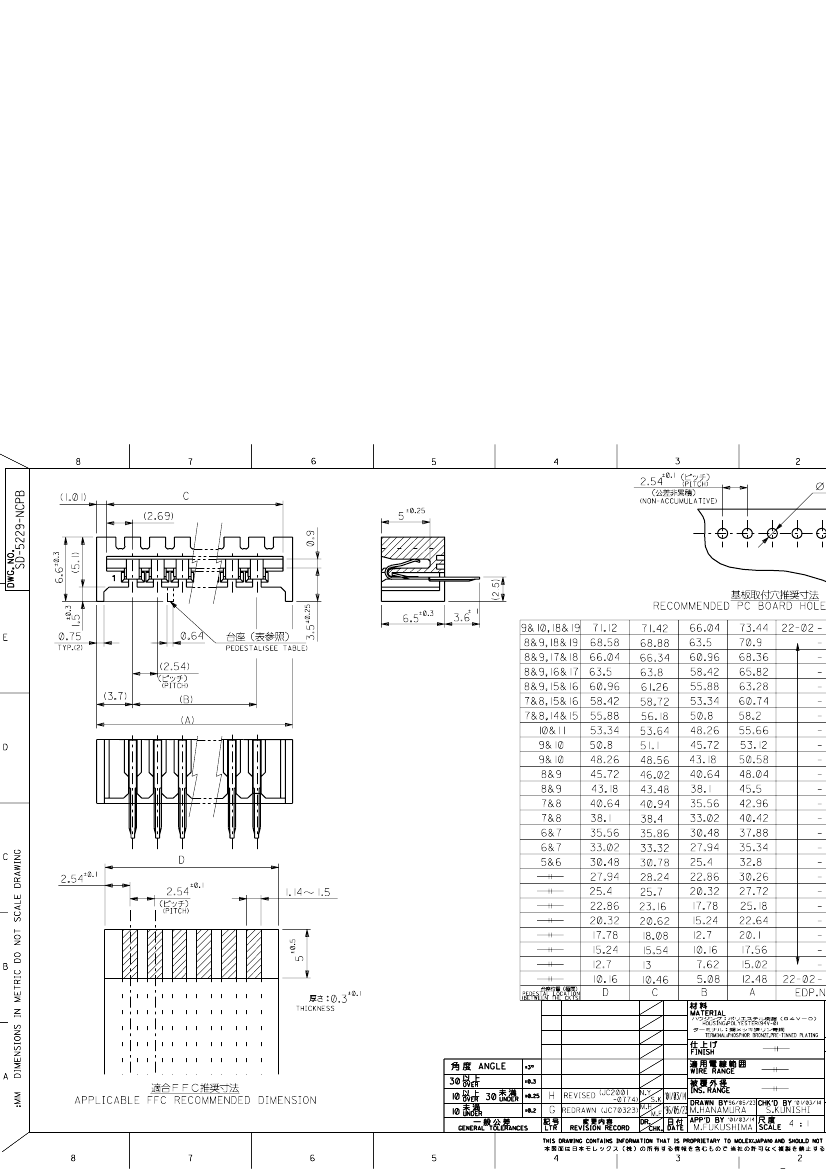

Sales Drawing
SPK-5229-001
PS-5229-001, PS-5229-002, PS-5229-005,
PS-5229-006, PS-5229-007
SD-5229-NCPB
This document was generated on 06/04/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
