A-42225-0067

Description
2.54mm (.100) Pitch KK Header, Breakaway, Vertical, with Polarizing Wall, 32 Circuits, 0.38mm (15mm) Gold (Au) Selective Plating
File Size188KB,8 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

A-42225-0067 Overview

2.54mm (.100) Pitch KK Header, Breakaway, Vertical, with Polarizing Wall, 32 Circuits, 0.38mm (15mm) Gold (Au) Selective Plating

This document was generated on 04/20/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Description:
0022283321
Active
2.54mm (.100") Pitch KK® Header, Breakaway, Vertical, with Polarizing Wall, 32
Circuits, 0.38µm (15µ") Gold (Au) Selective Plating
Documents:
3D Model
Packaging Specification (PDF)

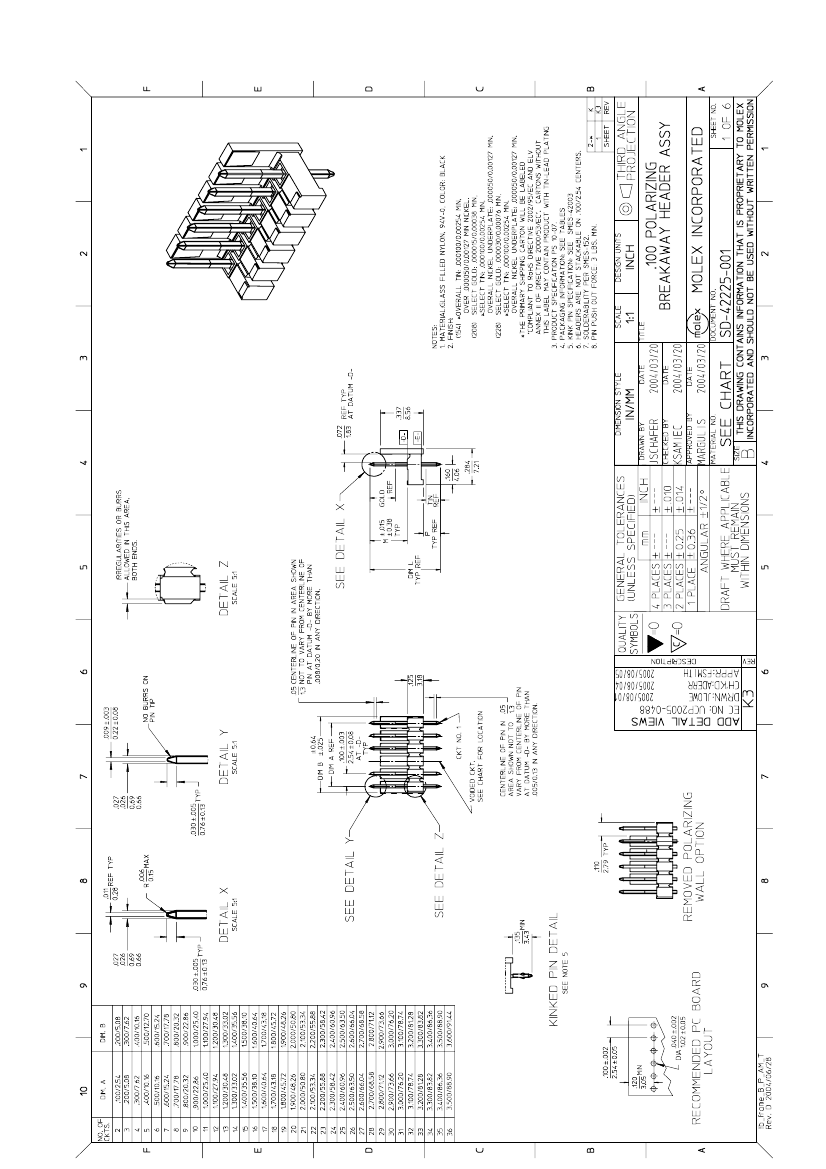

Drawing (PDF)
Product Specification PS-10-07 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
LR19980
General
Product Family
Series
Application
Product Name
PCB Headers
42225
Wire-to-Board
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Yes
32
32
Black
100
94V-0
No
None
Brass
Gold
Tin
Nylon
1
Vertical
0.120 In
3.05 mm
No
None
0.062 In
1.60 mm
Bag
0.100 In
2.54 mm
15
0.375
100
2.5
Yes
No
Partial
No
0°C to +75°C
Through Hole
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
42225S
Mates
2695 ,
Electrical
Current - Maximum per Contact
4A
