AA-2317XT Overview

InsulKrimp垄芒 Fully Insulated Piggyback Quick Disconnect

This document was generated on 04/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Description:
0190130028
Active
InsulKrimp™ Fully Insulated Piggyback Quick Disconnect, Tab 6.35mm (.250") by
0.81mm (.032"), 18-22 AWG, Expanded Flare, Red Insulator, Tape
Documents:
Drawing (PDF)
Product Specification PS-19902-008 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR18689
E79133
General
Product Family
Series
Crimp Quality Equipment
Product Name
Type
Quick Disconnects
19013
Yes
InsulKrimp™
Quick Disconnect
Physical
Barrel Type
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Resin
Orientation
Packaging Type
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed - Brazed
Natural
94V-2
Female
No
Nylon (PA)
No
Nylon
Straight
Adhesive Tape on Reel
Yes
0.81mm (.032")
6.35mm (.250")
105°C
5.82mm (.229") max.
18, 20, 22
0.35 - 0.80
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Halogen
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
19013S
Electrical
Voltage - Maximum
600V AC
Material Info
Old Part Number
AA-2317XT
Reference - Drawing Numbers
Product Specification

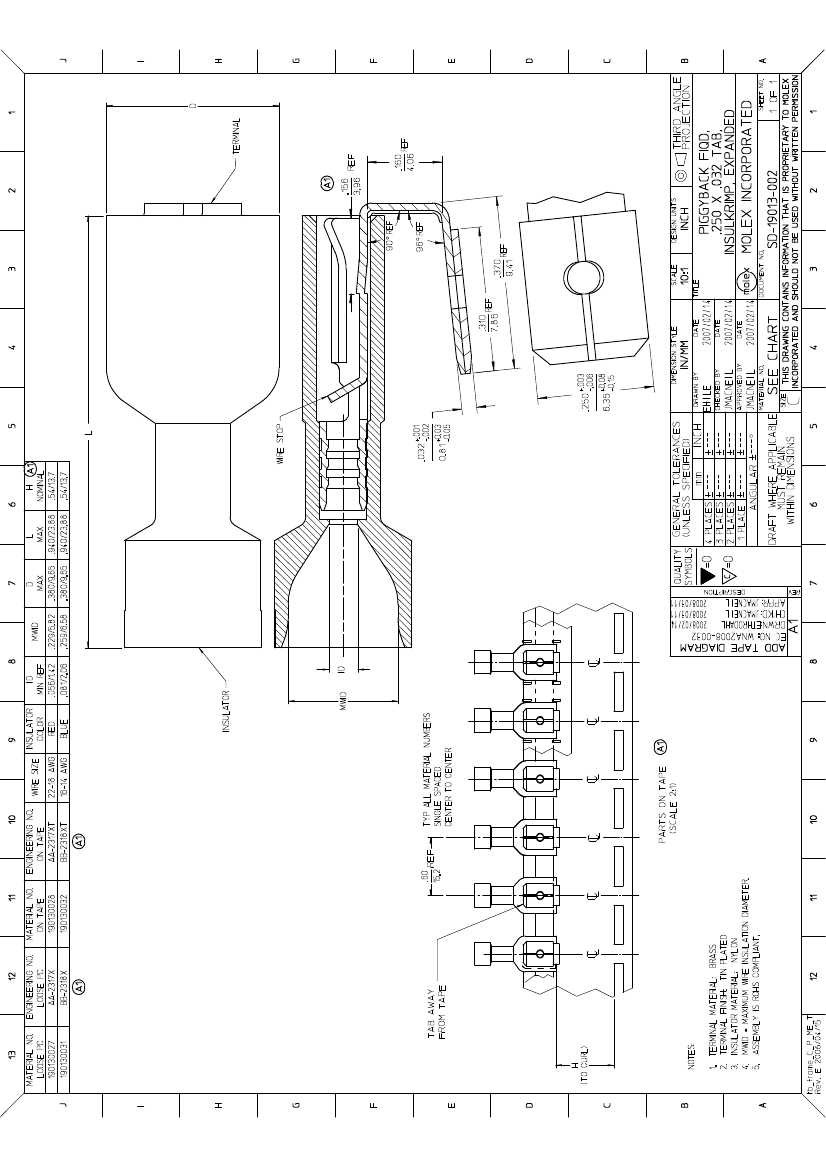

Sales Drawing
PS-19902-008
SD-19013-002
Applic
Tooling
found b
Crimp H
contain
Specifi
Global
Descri
Mini-M
Applica
Hand C
Crimp H
AT-200
Hand T
This document was generated on 04/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
