NPDS5912D84Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> NPDS5912D84Z

NPDS5912D84Z: DescriptionSmall Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, SO-8; CategoryDiscrete semiconductor The transistor; File Size135KB，5 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

NPDS5912D84Z Overview

Small Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, SO-8

NPDS5912D84Z Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	SOT
package instruction	SMALL OUTLINE, R-PDSO-G8
Contacts	8
Reach Compliance Code	unknown
Configuration	SEPARATE, 2 ELEMENTS
FET technology	JUNCTION
Maximum feedback capacitance (Crss)	1.2 pF
JESD-30 code	R-PDSO-G8
Number of components	2
Number of terminals	8
Operating mode	DEPLETION MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON

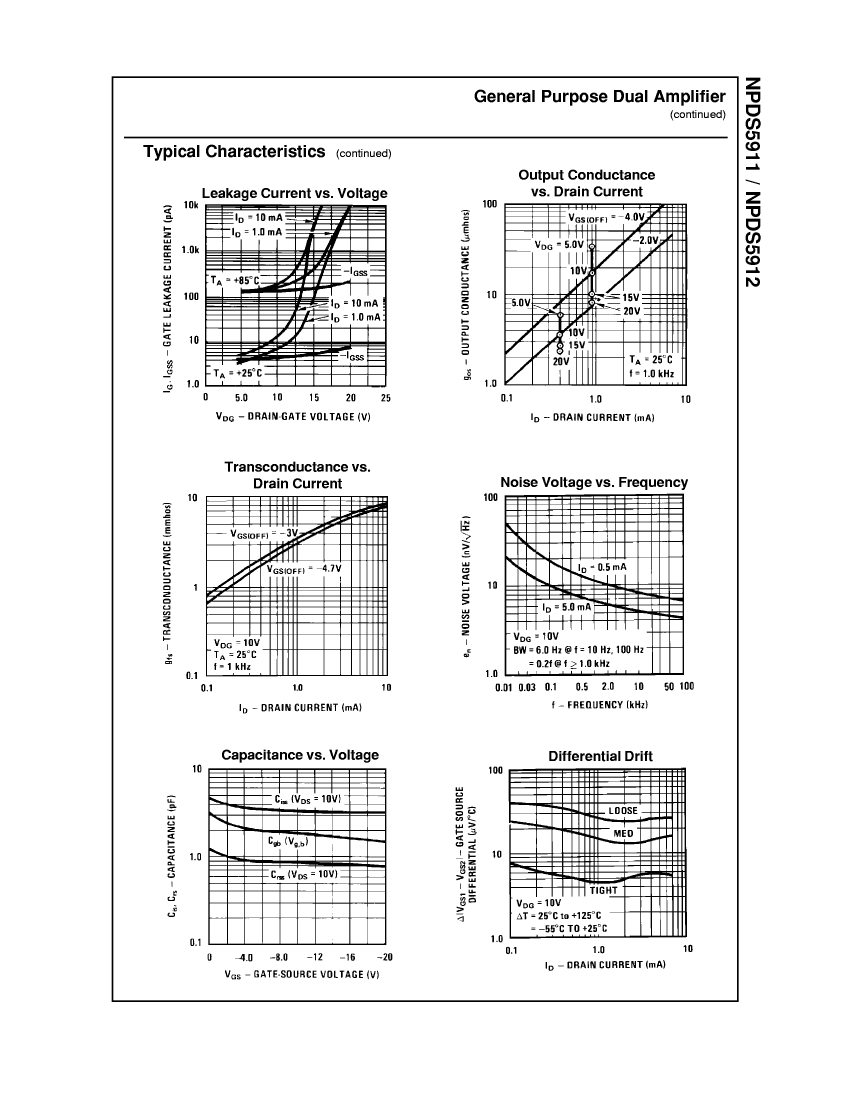

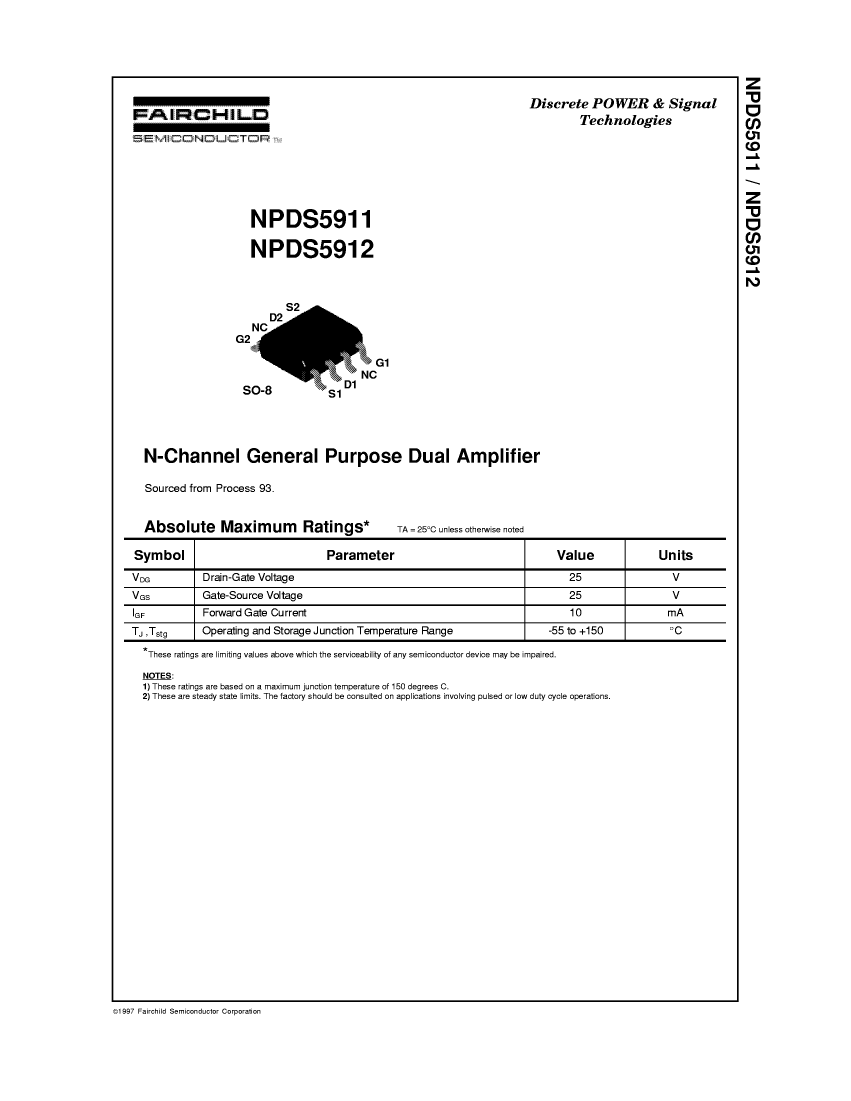

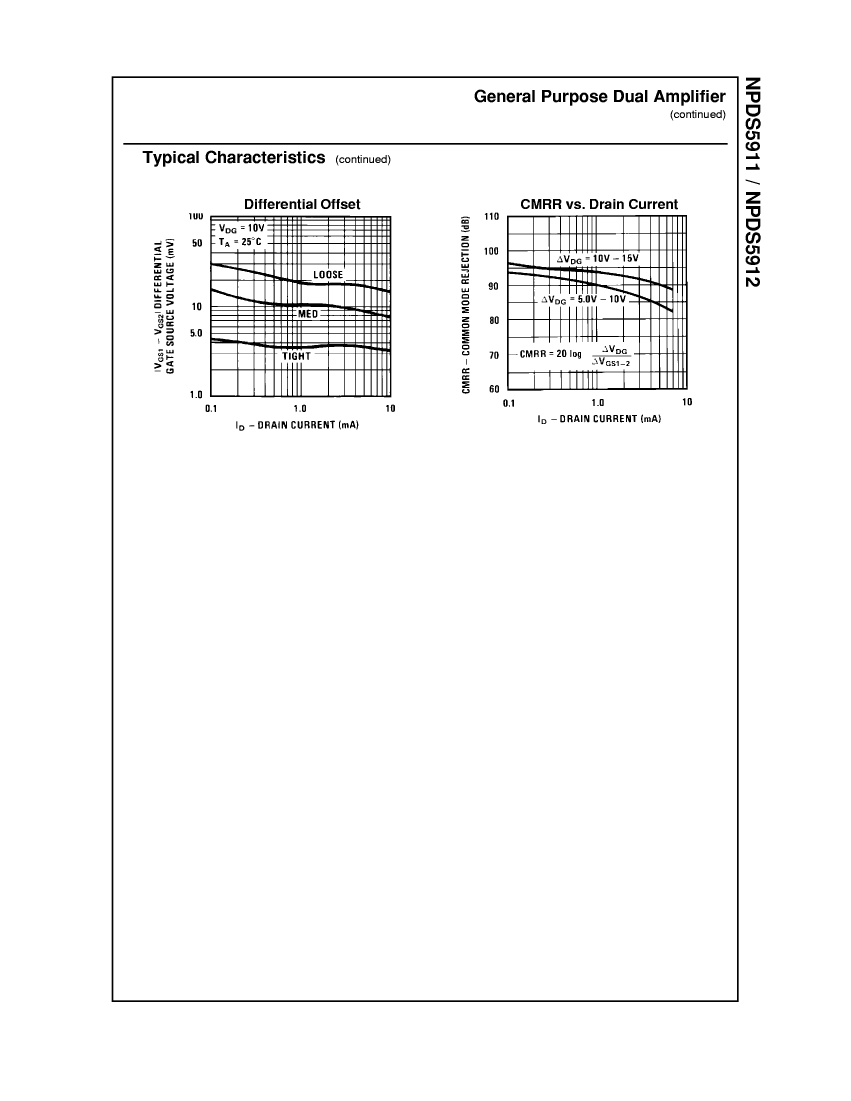

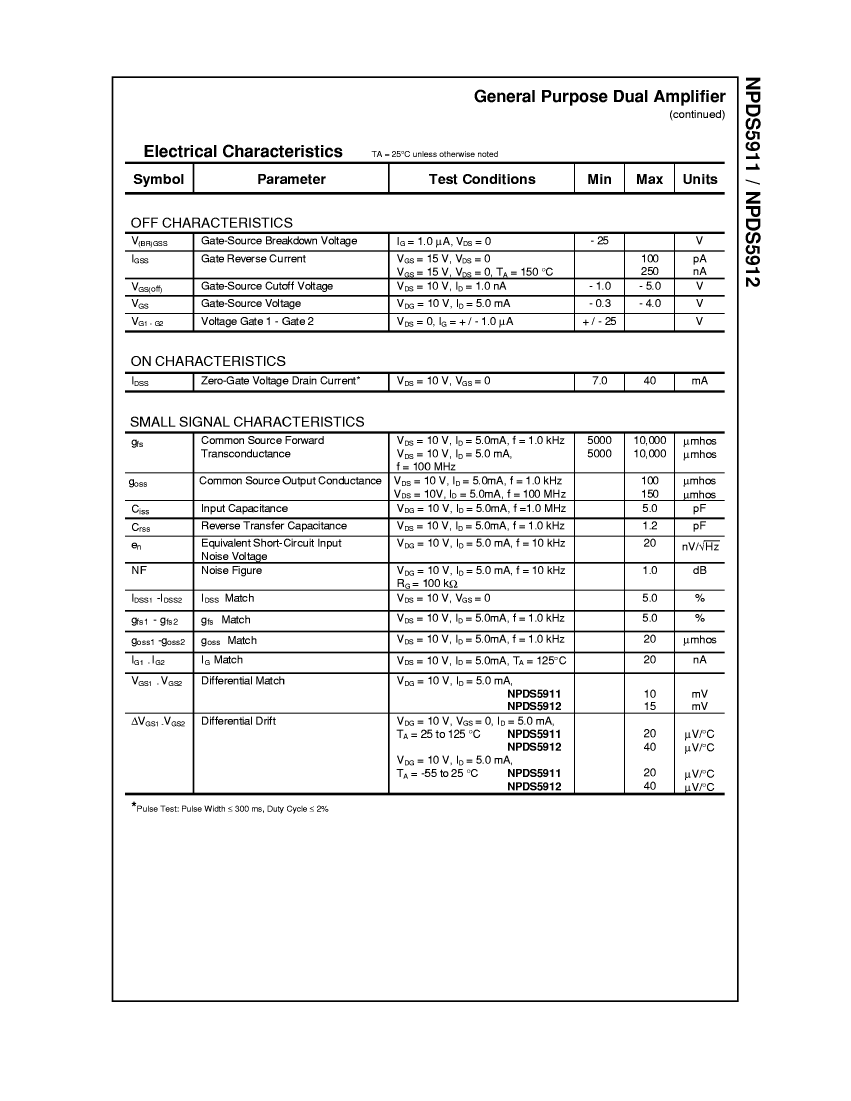

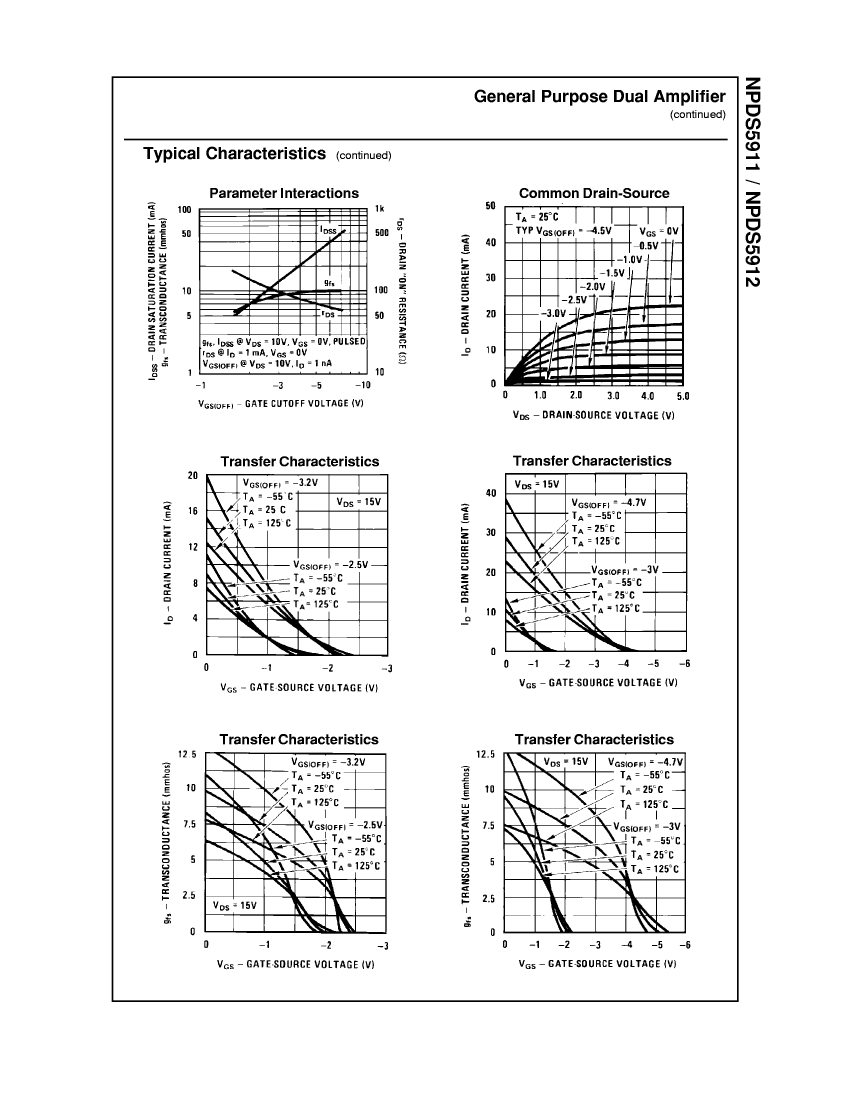

Preview

Download Datasheet

View All

NPDS5912D84Z Related Products

	NPDS5912D84Z	NPDS5911L86Z	NPDS5911L99Z	NPDS5912L99Z	NPDS5911D84Z	NPDS5911S62Z	NPDS5912L86Z	NPDS5912S62Z
Description	Small Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, SO-8	Small Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, SO-8	Small Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, SO-8	Small Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, SO-8	Small Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, SO-8	Small Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, SO-8	Small Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, SO-8	Small Signal Field-Effect Transistor, 2-Element, N-Channel, Silicon, Junction FET, SO-8
Parts packaging code	SOT	SOT	SOT	SOT	SOT	SOT	SOT	SOT
package instruction	SMALL OUTLINE, R-PDSO-G8	SMALL OUTLINE, R-PDSO-G8	SMALL OUTLINE, R-PDSO-G8	SMALL OUTLINE, R-PDSO-G8	SMALL OUTLINE, R-PDSO-G8	SMALL OUTLINE, R-PDSO-G8	SMALL OUTLINE, R-PDSO-G8	SMALL OUTLINE, R-PDSO-G8
Contacts	8	8	8	8	8	8	8	8
Reach Compliance Code	unknown	unknow	unknow	unknow	unknown	unknown	unknown	unknown
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
FET technology	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION	JUNCTION
Maximum feedback capacitance (Crss)	1.2 pF	1.2 pF	1.2 pF	1.2 pF	1.2 pF	1.2 pF	1.2 pF	1.2 pF
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
Number of components	2	2	2	2	2	2	2	2
Number of terminals	8	8	8	8	8	8	8	8
Operating mode	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE	DEPLETION MODE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maker	Fairchild	-	-	-	Fairchild	Fairchild	Fairchild	Fairchild
