Part Number:
Status:
Description:
0022035045
Active
2.50mm (.098") Pitch SPOX™ Wire-to-Board Header, Vertical, Shrouded, 4 Circuits,
Tin (Sn) Plating
Documents:
3D Model

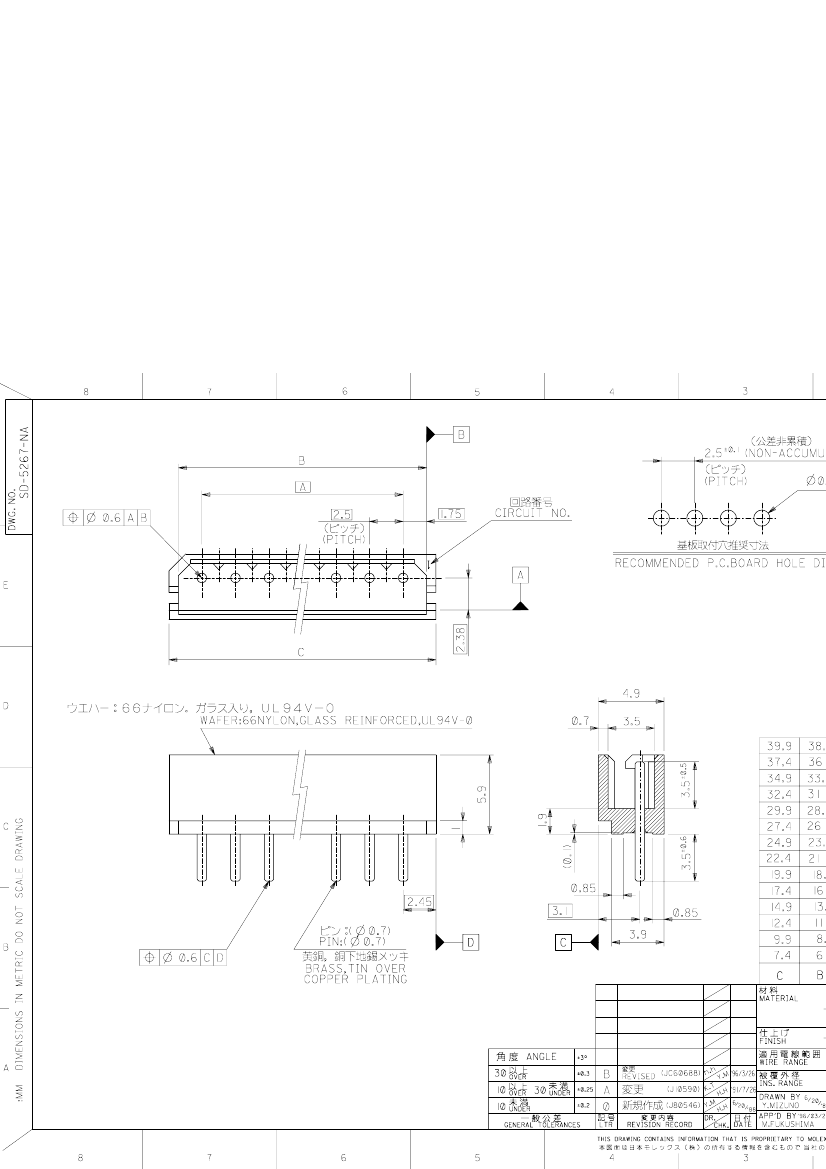

Drawing (PDF)
Product Specification PS-5264-001 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
MolexKits
Product Name
PCB Headers
5267
Wire-to-Board
Yes
SPOX™
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
No
4
4
Natural
30
No
94V-0
No
No
None
Yes
Tin
Tin
Nylon
1
Vertical
0.138 In
3.50 mm
No
Yes
0.062 In
1.60 mm
Bag
0.098 In
2.50 mm
160
4
160
4
Yes
No
Fully
No
No
-40°C to +105°C
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Halo
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
5267Se
Mates
5264 S
Housin
Housin
Termination Interface: Style
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
3A
250V
Material Info
Old Part Number
5267-04A
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
SPK-5267-001
PS-5264-001, RPS-5264-005, RPS-5267-001
SD-5267-NA
