Part Number:
Status:
Description:
0026612100
Active
3.96mm (.156") Pitch KK® Solid Header, Vertical, without Peg, 10 Circuits, Gold (Au)
Plating
Documents:
3D Model

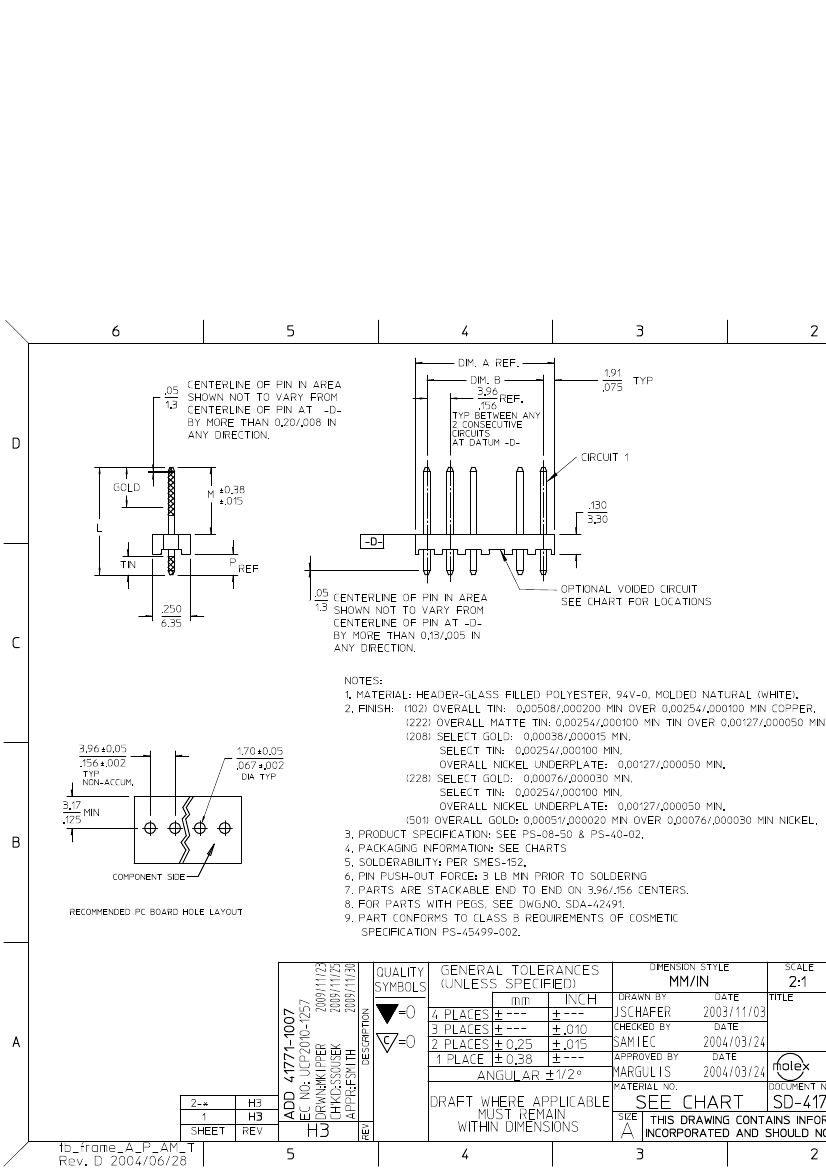

Drawing (PDF)
Packaging Specification (PDF)
Product Specification PS-08-50 (PDF)
Product Specification PS-40-02 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Product Name
PCB Headers
41771
Board-to-Board, Wire-to-Board
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
10
10
Natural
50
94V-0
No
None
Brass
Gold
Polyester
1
Vertical
0.140 In
3.56 mm
No
None
0.062 In
1.60 mm
Bag
0.156 In
3.96 mm
Yes
No
Partial
Yes
0°C to +75°C
Through Hole
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Halo
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
41771S
Mates
3069 ,
41695
Electrical
Current - Maximum per Contact
Voltage - Maximum
7A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
5
Wave Capable (TH only)
Max. Cycles at Max. Process Temperature
Process Temperature max. C
1
235
Material Info
Old Part Number
41771-0027
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-08-50, PS-40-02
SD-41771-001
