A-42226-0060: Description2.54mm (.100) Pitch KK Header, Breakaway, Right Angle, with Plastic Polarizing Peg, 25 Circuits, 0.38 mm (15 mm) Gold (Au) Selective Plating; File Size220KB，9 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

A-42226-0060 Overview

2.54mm (.100) Pitch KK Header, Breakaway, Right Angle, with Plastic Polarizing Peg, 25 Circuits, 0.38 mm (15 mm) Gold (Au) Selective Plating

Preview

Download Datasheet

View All

This document was generated on 04/19/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0022282252

Active

2.54mm (.100") Pitch KK® Header, Breakaway, Right Angle, with Plastic Polarizing

Peg, 25 Circuits, 0.38µm (15µ") Gold (Au) Selective Plating

Documents:

3D Model

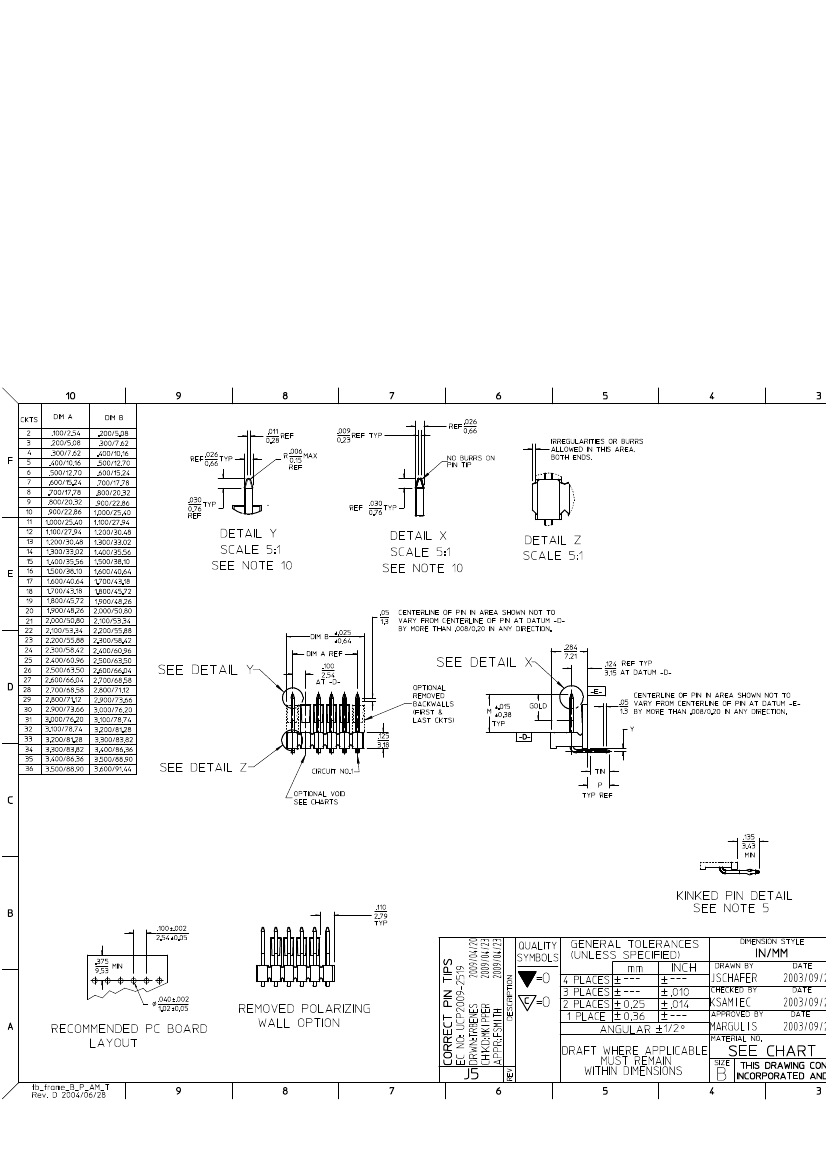

Drawing (PDF)

Packaging Specification (PDF)

Product Specification PS-10-07 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Product Name

PCB Headers

42226

Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Yes

Black

100

94V-0

None

Brass

Gold

Tin

Nylon

Right Angle

0.120 In

3.05 mm

None

0.062 In

1.60 mm

Bag

0.100 In

2.54 mm

0.375

100

2.5

0°C to +75°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Halo

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

42226S

Mates

2695 ,

Electrical
