PM1210H-1R5M-RC: DescriptionGeneral Purpose Inductor, 1.5uH, 20%, 2 Element, Ferrite-Core, SMD, 1210, CHIP, 1210, ROHS COMPLIANT; CategoryPassive components inductor; File Size357KB，1 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

PM1210H-1R5M-RC Overview

General Purpose Inductor, 1.5uH, 20%, 2 Element, Ferrite-Core, SMD, 1210, CHIP, 1210, ROHS COMPLIANT

PM1210H-1R5M-RC Parametric

Parameter Name	Attribute value
Maker	Bourns
package instruction	1210
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1210
core material	FERRITE
DC Resistance	0.2 Ω
Nominal inductance(L)	1.5 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PM1210H
Number of functions	2
Number of terminals	4
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Minimum quality factor (at nominal inductance)	10
Maximum rated current	0.58 A
self resonant frequency	80 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	PARALLEL CONNECTED
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	WRAPAROUND
Test frequency	7.96 MHz
Tolerance	20%

Preview

Download Datasheet

View All

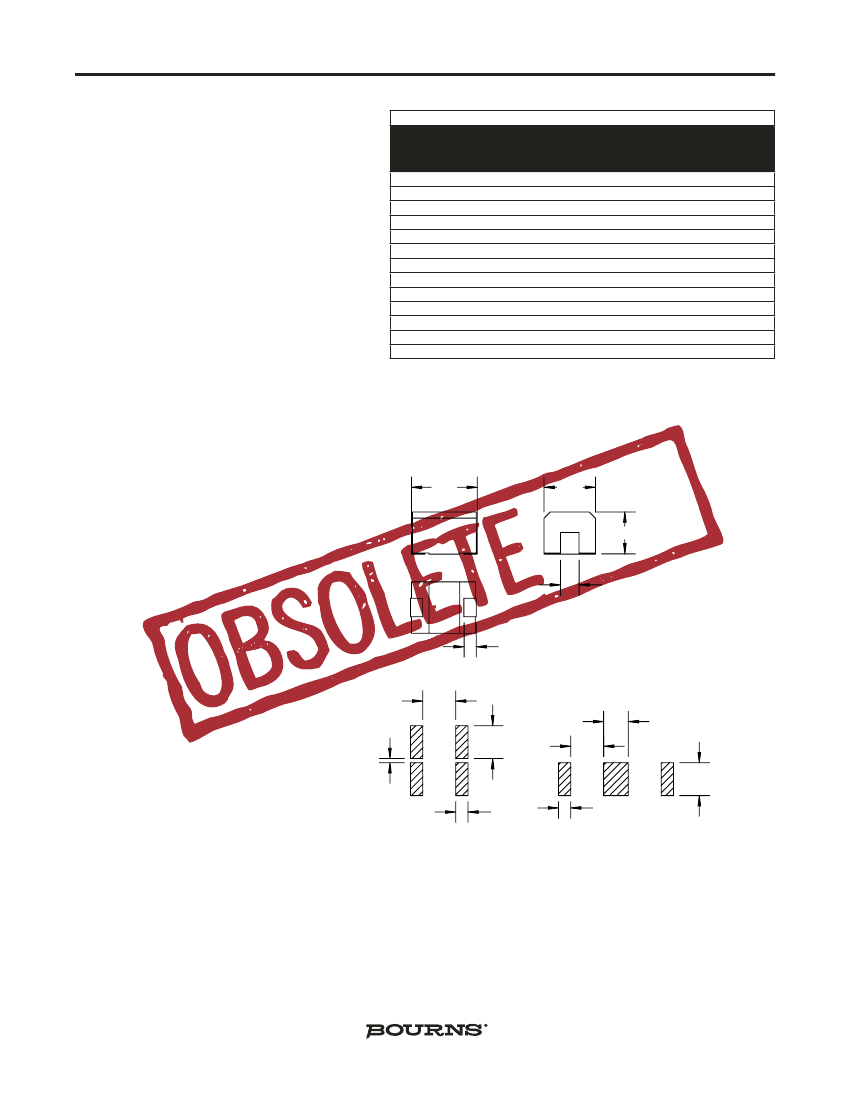

High Current Chip Inductors

Special Features

• High current

• Molded construction for high reliability and

superior environmental protection

• High resistance to solder heat, moisture

• Ferrite bobbin core

• Operating temperature -20 to +100 °C

• Tape & reel packaged 2000/reel

Part

Number

PM1210H-1R0M-RC

PM1210H-1R5M-RC

PM1210H-2R2M-RC

PM1210H-3R3M-RC

PM1210H-4R7M-RC

PM1210H-6R8M-RC

PM1210H-100K-RC

PM1210H-150K-RC

PM1210H-220K-RC

PM1210H-330K-RC

PM1210H-470K-RC

PM1210H-680K-RC

L (µH)

± 20 %

1.0

1.5

2.2

3.3

4.7

6.8

± 10 %

10

15

22

33

47

68

PM1210H Series

Test

Q

Freq.

Min.

(MHz)

10

15

20

7.96

2.52

SRF

(MHz)

Max.

100

80

65

55

45

35

28

25

20

15

13

10

DCR

(Ω)

Max.

0.16

0.20

0.26

0.33

0.52

0.65

1.11

1.69

2.60

3.64

5.46

8.45

I, DC*

(mA)

770

580

480

400

320

280

220

180

145

115

105

85

Typical Applications

• Desktop, notebook computers, servers

• Network hubs, bridges, routers

• xDSL, PBX base stations

• Cell phones, pagers, GPS systems

• PDAs, MP3 players, digital cameras

• Digital TVs, DVDs, cable modems, DSS set-top boxes

• Battery chargers

• High frequency wireless communication devices

• Electronic game devices

Notes

* Rated current to cause 20 °C temperature rise

-/+0.4

3.2

2.5

2.2

1.0

0.6

2

0.5

2

3

2

3

1

Parallel Connection

1

Series Connection

Pad Layout

Dimensions: mm

Tolerance: -/+0.2

Tel. (877) 426-8767 • Fax (951) 781-5006

4.16

www.bourns.com

REV. 06/07
