DESCRIPTION
RELEASED FOR PRODUCTION
ECN 3128: UPDATE DWG FORMAT
2
REVISIONS
DATE
1
APPROVED
MCCORMICK
D.GRIFFIN
D.FRISIELLO
12/14/01
12/20/05
12/30/08
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
ECN 3776: UPDATED DIMENSIONS, NEW FORMAT
D
D
1.19 30.3
.44 11
C
C
"F" JACK
3/8-24 UNEF
UHF JACK
5/8-24 UNEF
B
B
NOTES:
MATERIALS;
SHELL: BRASS
CONTACTS: BRASS
INSULATOR:DELRIN
CENTER PIN: BRASS
FINISH;
SHELL: NICKEL PLATE
CONTACT: GOLD PLATE
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm]
OVERALL CABLE LENGTH TOLERANCE:
≤12 [305] = +1 [25] / -0
>12 [305] ≤60 [1524] = +2 [51] / -0
>60 [1524] ≤120 [3048] = +4 [102] / -0
>120 [3048] ≤300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0%
ALL OTHER DIMENSIONAL TOLERANCES:
.X = .3
.XX = .15
PROJECTION
APPROVALS
DRAWN BY
DATE
12/05/01
12/05/01
12/05/01
PRODUCT DESCRIPTION
CATEGORY
MCCORMICK
CHECKED BY
A
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
D.PARHAM
APPROVED BY
R.CARRICK

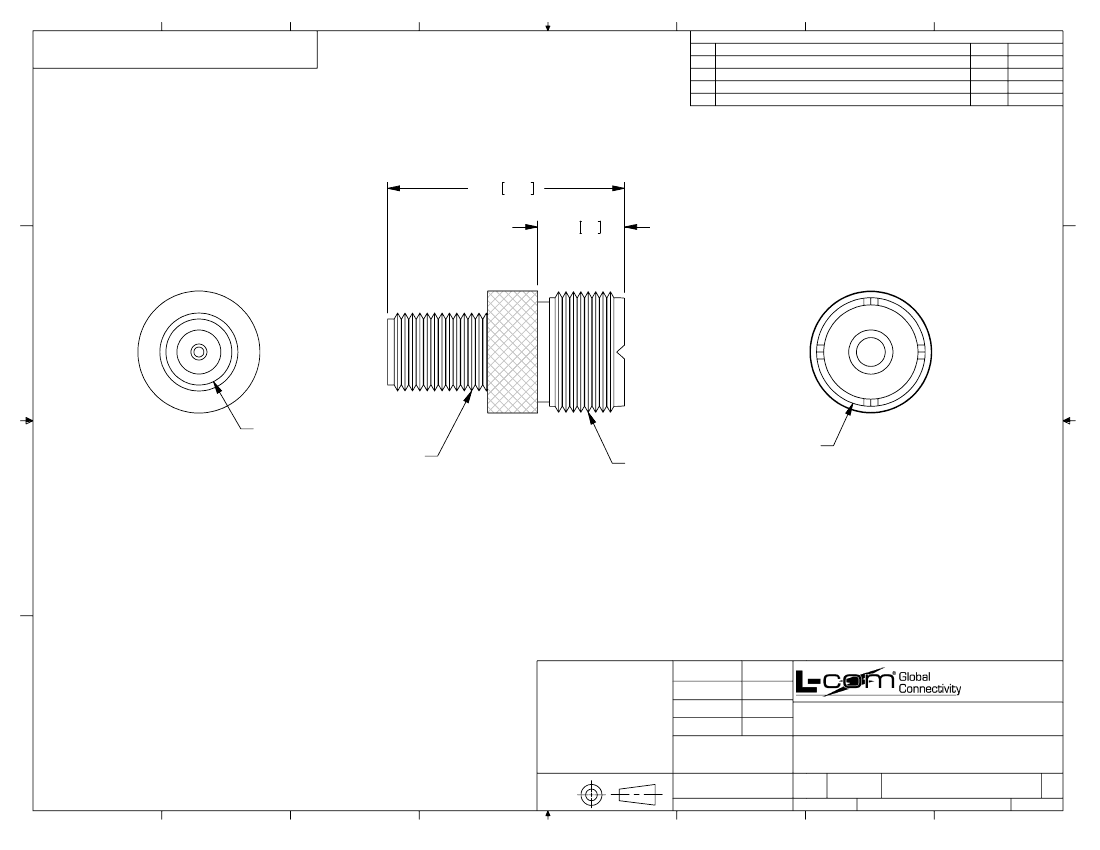

COAXIAL
UHF JACK TO TYPE F JACK
SIZE
A
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR
REF
A
43321
2
FSCM NO.
DWG. NO.
BA301
1
SCALE: NONE
CAD FILE:
BA301.SLDDRW
SHEET 1 OF 1
C
REV.
8
7
6
5
4
3
