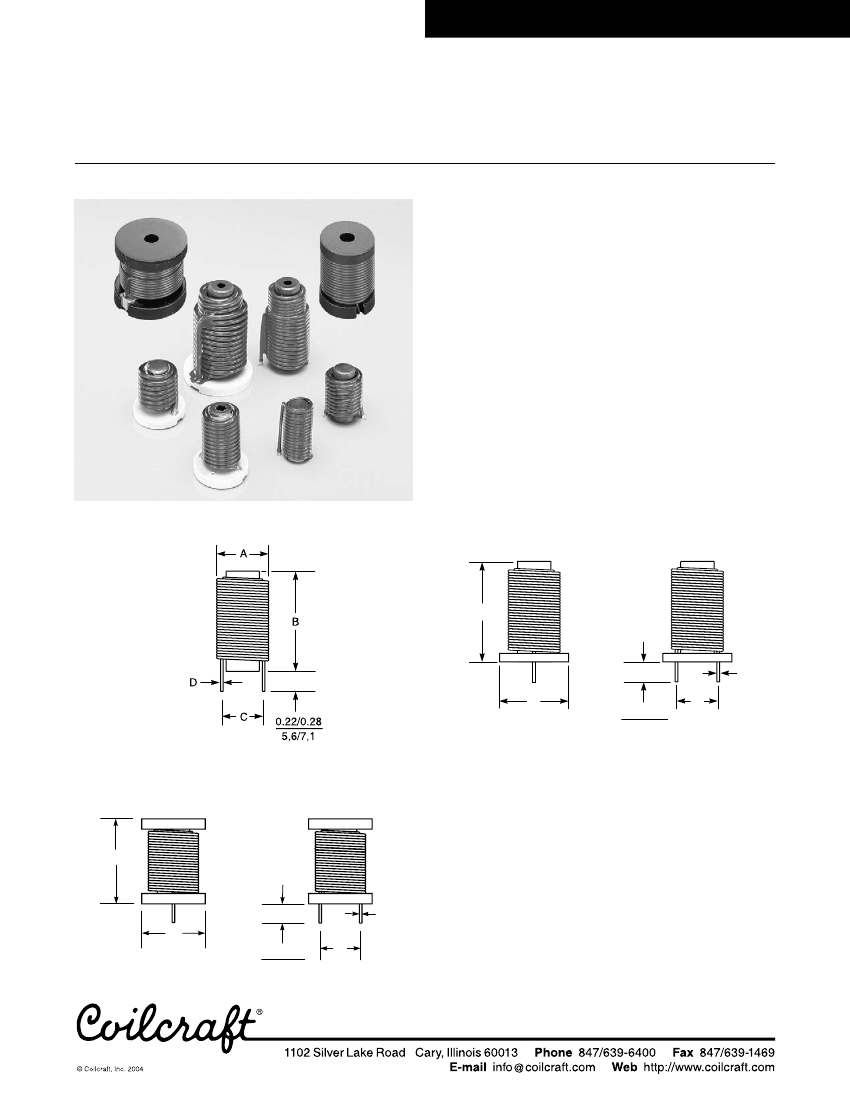

Document 135-1
Power Chokes – Vertical Mount
The Coilcraft PCV power chokes are low cost
power inductors whose simple design provides rugged
reliability and performance. They feature 130°C class
insulation and are available in a wide range of standard
values.
The open core construction provides the highest saturation
current available in a low cost power choke. The PCV-1
Series incorporates a plastic mounting header for maxi-
mum lead protection and consistency. The PCV-2 Series
uses a ferrite bobbin core to provide the highest possible
inductance at the lowest cost.
Coilcraft
Designer’s Kit P205
contains samples of
the part numbers shown in bold from the PCV-0 and PCV-2
Series. Contact Coilcraft or visit
http://order.coilcraft.com
to purchase on-line.
PCV-0 Series
PCV-1 Series
B
D
A
0.22/0.28
5,6/7,1
C
PCV-2 Series
B
D
A
0.22/0.28
5,6/7,1
C
Specifications subject to change without notice.
Please check our website for latest information.
Document 135-1
Revised 09/15/03
Document 135-2
Power Chokes – Vertical Mount
Part
number
PCV-0 Series
PCV-0-102-25
PCV-0-102-10
PCV-0-332-10
PCV-0-472-03
PCV-0-472-05
PCV-0-472-10
PCV-0-472-20
PCV-0-103-03
PCV-0-103-05
PCV-0-103-10
PCV-0-103-20
PCV-0-153-03
PCV-0-153-10
PCV-0-223-03
PCV-0-223-05
PCV-0-223-10
PCV-0-273-05
PCV-0-333-12
PCV-0-473-03
PCV-0-473-05
PCV-0-473-10
PCV-0-823-03
PCV-0-104-01
PCV-0-104-03
PCV-0-104-05
PCV-0-154-03
PCV-0-154-05
PCV-0-184-05
PCV-0-224-03
PCV-0-274-04
PCV-0-274-10
PCV-0-394-03
PCV-0-394-05
PCV-1 Series
PCV-1-152-15
PCV-1-182-10
PCV-1-182-15
PCV-1-472-03
PCV-1-472-05
PCV-1-472-10
PCV-1-103-03
PCV-1-103-05
PCV-1-103-10
PCV-1-153-10
PCV-1-223-03
PCV-1-223-05
PCV-1-223-10
PCV-1-473-03
PCV-1-473-05
PCV-1-473-10
PCV-1-104-03
PCV-1-104-05
PCV-1-184-03
PCV-1-304-05
PCV-1-394-05
Inductance
1
(µH)
1.0 ±15%
1.0 ±15%
3.3 ±15%
4.7 ±15%
4.7 ±15%
4.7 ±15%
4.7 ±15%
10 ±10%
10 ±10%
10 ±10%
10 ±10%
15 ±10%
15 ±10%
22 ±10%
22 ±10%
22 ±10%
27 ±10%
33 ±10%
47 ±10%
47 ±10%
47 ±10%
82 ±10%
100 ±10%
100 ±10%
100 ±10%
150 ±10%
150 ±10%
180 ±10%
220 ±10%
270 ±10%
270 ±10%
390 ±10%
390 ±10%
1.5 ±15%
1.8 ±15%
1.8 ±15%
4.7 ±15%
4.7 ±15%
4.7 ±15%
10 ±10%
10 ±10%
10 ±10%
15 ±10%
22 ±10%
22 ±10%
22 ±10%
47 ±10%
47 ±10%
47 ±10%
100 ±10%
100 ±10%
180 ±10%
300 ±10%
390 ±10%
I
sat
2
(A)
25
10
10
3
5
10
20
3
5
10
20
3
10
3
5
10
5
12
3
5
10
3
1
3
5
3
5
5
3
4
10
3
5
15
10
15
3
5
10
3
5
10
10
3
5
10
3
5
10
3
5
3
5
5
I
rms
3
(A)
25
10
10
3
5
10
20
3
5
10
20
3
10
3
5
10
5
12
3
5
10
3
1
3
5
3
5
5
3
4
10
3
5
15
10
15
3
5
10
3
5
10
10
3
5
10
3
5
10
3
5
3
5
5
DCR max
(Ohms)
0.002
0.003
0.005
0.021
0.012
0.012
0.004
0.023
0.017
0.015
0.006
0.025
0.020
0.035
0.023
0.015
0.024
0.017
0.050
0.035
0.022
0.110
0.190
0.072
0.055
0.140
0.065
0.110
0.210
0.250
0.160
0.250
0.190
0.003
0.006
0.003
0.021
0.012
0.012
0.026
0.020
0.013
0.020
0.035
0.023
0.018
0.050
0.033
0.022
0.072
0.055
0.150
0.160
0.190
A
max
0.60/15,2
0.50/12,7
0.50/12,7
0.51/13,0
0.50/12,7
0.50/12,7
0.53/13,5
0.50/12,7
0.50/12,7
0.52/13,2
0.75/19,1
0.50/12,7
0.52/13,2
0.50/12,7
0.50/12,7
0.66/16,8
0.50/12,7
0.70/17,8
0.55/14,0
0.65/16,5
0.85/21,6
0.50/12,7
0.40/10,2
0.55/14,0
0.65/16,5
0.60/15,2
0.65/16,5
0.60/15,2
0.55/14,0
0.95/24,0
1.1/28,0
1.1/28,0
1.1/28,0
0.65/16,5
0.65/16,5
0.65/16,5
0.62/15,7
0.62/15,7
0.62/15,7
0.63/16,0
0.62/15,7
0.63/16,0
0.70/17,8
0.62/15,7
0.62/15,7
0.70/17,8
0.65/16,5
0.90/22,9
0.90/22,9
0.90/22,9
0.90/22,9
0.63/16,0
1.1/27,9
1.1/27,9
B
max
0.68/17,3
0.75/19,1
1.0/25,4
0.75/19,1
0.75/19,1
1.0/25,4
1.2/30,5
0.75/19,1
0.75/19,1
1.0/25,4
1.8/45,7
1.0/25,4
1.0/25,4
1.0/25,4
1.0/25,4
1.3/33,0
1.0/25,4
1.3/33,0
1.0/25,4
1.1/28,0
1.3/33,0
0.65/16,5
0.90/22,9
1.2/30,5
1.3/33,0
1.2/30,5
1.3/33,0
1.2/30,5
1.2/30,5
0.72/18,3
1.0/25,4
1.0/25,4
1.0/25,4
0.90/22,9
1.1/27,9
1.1/27,9
0.85/21,6
0.85/21,6
1.1/27,9
0.85/21,6
0.85/21,6
1.1/27,9
1.4/35,6
1.1/27,9
1.1/27,9
1.4/35,6
1.1/27,9
1.2/30,5
1.4/35,6
1.3/33,1
1.4/35,6
1.2/30,5
1.0/25,4
1.0/25,4
C
±0.015/0,38
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.60/15,2
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.49/12,5
0.55/14,0
0.42/10,7
0.70/17,8
0.70/17,8
0.375/9,5
0.30/7,6
0.70/17,8
0.70/17,8
0.43/10,9
0.70/17,8
0.43/10,9
0.42/10,7
0.71/18,0
0.72/18,3
0.72/18,3
0.72/18,3
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.42/10,7
0.70/17,8
0.70/17,8
0.70/17,8
0.70/17,8
0.42/10,7
0.70/17,8
0.70/17,8
D
±0.004/0,10
0.068/1,73
0.054/1,37
0.054/1,37
0.035/0,89
0.042/1,07
0.054/1,37
0.068/1,73
0.035/0,89
0.042/1,07
0.054/1,37
0.075/1,91
0.035/0,89
0.054/1,37
0.035/0,89
0.042/1,07
0.060/1,52
0.042/1,07
0.060/1,52
0.035/0,89
0.042/1,07
0.060/1,52
0.028/0,71
0.020/0,51
0.035/0,89
0.042/1,07
0.028/0,71
0.042/1,07
0.035/0,89
0.025/0,64
0.030/0,76
0.038/0,97
0.035/0,89
0.038/0,97
0.068/1,73
0.054/1,37
0.068/1,73
0.035/0,89
0.042/1,07
0.054/1,37
0.035/0,89
0.042/1,07
0.054/1,37
0.060/1,52
0.035/0,89
0.042/1,07
0.060/1,52
0.035/0,89
0.042/1,07
0.060/1,52
0.035/0,89
0.042/1,07
0.028/0,71
0.038/0,97
0.038/0,97
Revised 09/11/03
Specifications subject to change without notice.
Please check our website for latest information.
Document 135-2

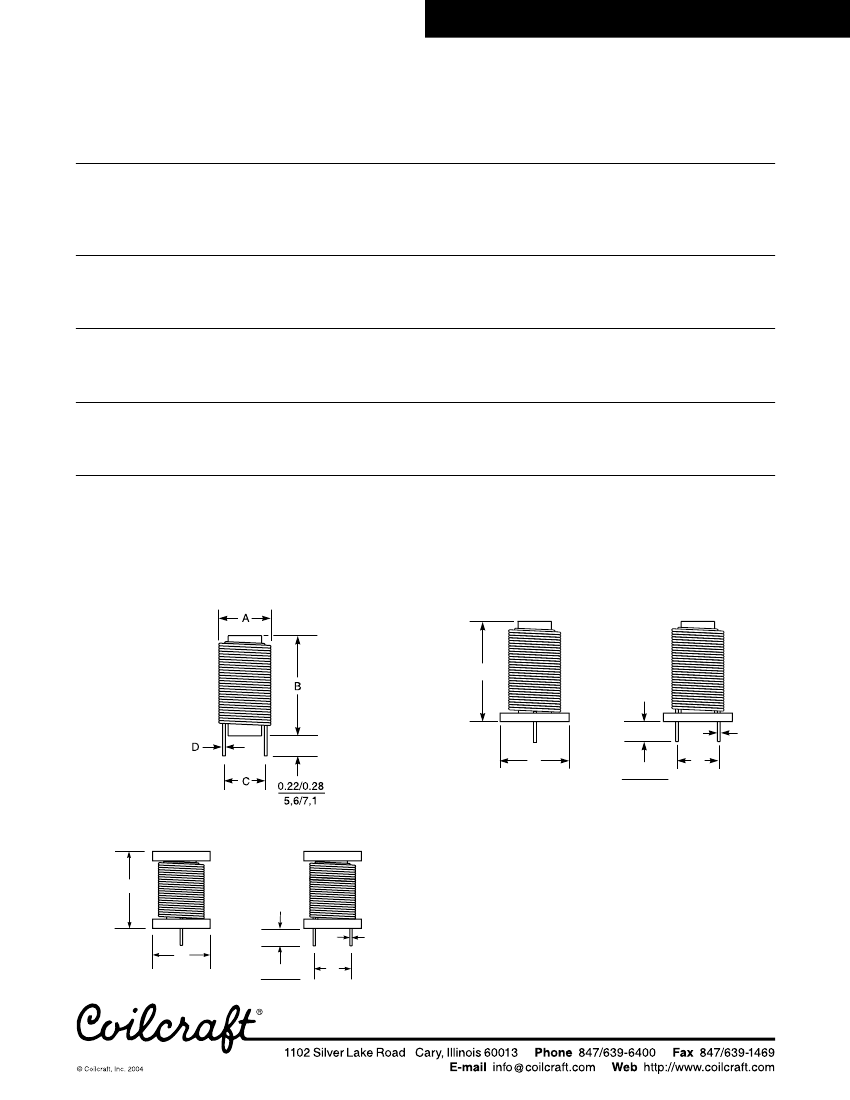

Document 135-3
Power Chokes – Vertical Mount
Part
number
PCV-2 Series
PCV-2-103-05
PCV-2-103-10
PCV-2-223-05
PCV-2-223-10
PCV-2-473-05
PCV-2-473-10
PCV-2-104-03
PCV-2-104-05
PCV-2-104-10
PCV-2-184-05
PCV-2-184-10
PCV-2-224-05
PCV-2-274-03
PCV-2-274-05
PCV-2-274-10
PCV-2-394-05
PCV-2-564-02
PCV-2-564-06
PCV-2-564-08
PCV-2-684-01
PCV-2-105-02
Inductance
1
±10% (µH)
10
10
22
22
47
47
100
100
100
180
180
220
270
270
270
390
560
560
560
680
1000
Isat
2
(A)
5
10
5
10
5
10
3
5
10
5
10
5
3
5
10
5
2
6
8
1
2
Irms
3
(A)
5
10
5
10
5
10
3
5
10
5
10
5
3
5
10
5
2
6
8
1
2
DCR max
(Ohms)
0.015
0.010
0.020
0.015
0.035
0.020
0.080
0.048
0.032
0.092
0.048
0.075
0.130
0.080
0.060
0.130
0.270
0.170
0.090
0.700
0.370
A
max
0.61/15,49
0.61/15,49
0.61/15,49
0.86/21,84
0.70/17,78
1.00/25,40
0.84/21,34
0.84/21,34
1.05/26,67
0.80/20,32
1.44/36,58
1.05/26,67
1.00/25,40
1.05/26,67
1.50/38,10
1.10/29,34
0.80/20,32
1.21/30,73
1.50/38,10
0.70/17,78
1.00/25,40
B
max
0.83/21,08
0.83/21,08
0.83/21,08
0.83/21,08
0.83/21,08
0.83/21,08
0.83/21,08
0.83/21,08
1.10/27,94
0.90/22,86
1.10/27,94
1.10/27,94
0.83/21,08
1.05/26,67
1.10/27,94
0.83/21,08
0.90/22,86
1.10/27,94
1.43/36,32
0.83/21,08
0.83/21,08
C
±0.015/0,38
0.42/10,67
0.50/12,70
0.42/10,67
0.58/14,73
0.48/12,19
0.70/17,78
0.58/14,73
0.70/17,78
0.88/22,35
0.58/14,73
1.05/26,67
0.75/19,05
0.75/19,05
0.80/20,32
1.08/27,43
0.85/21,59
0.57/14,48
0.90/22,86
1.08/27,43
0.50/12,70
0.72/18,29
D
±0.004/0,10
0.042/1,07
0.054/1,37
0.042/1,07
0.054/1,37
0.038/0,97
0.054/1,37
0.031/0,79
0.042/1,07
0.054/1,37
0.035/0,89
0.054/1,37
0.042/1,07
0.035/0,89
0.042/1,07
0.054/1,37
0.038/0,97
0.028/0,71
0.038/0,97
0.054/1,37
0.018/0,46
0.028/0,71
1. Tested at 15.75 kHz, 0.1 Vrms, with DC bias applied up to the rated current.
2. DC current at which the inductance drops 10% (typ) from its value without current.
3. Average current for a 40°C rise above 25°C ambient.
4. Storage and operating temperature range –40°C to +85°C.
5. Electrical specifications at 25°C.
6. Parts in bold type are included in Coilcraft Designer’s Kit No. P205.
PCV-0 Series
PCV-1 Series
B
D
A
0.22/0.28
5,6/7,1
C
PCV-2 Series
B
D
A
0.22/0.28
5,6/7,1
C
Specifications subject to change without notice.
Please check our website for latest information.
Document 135-3
Revised 09/11/03
