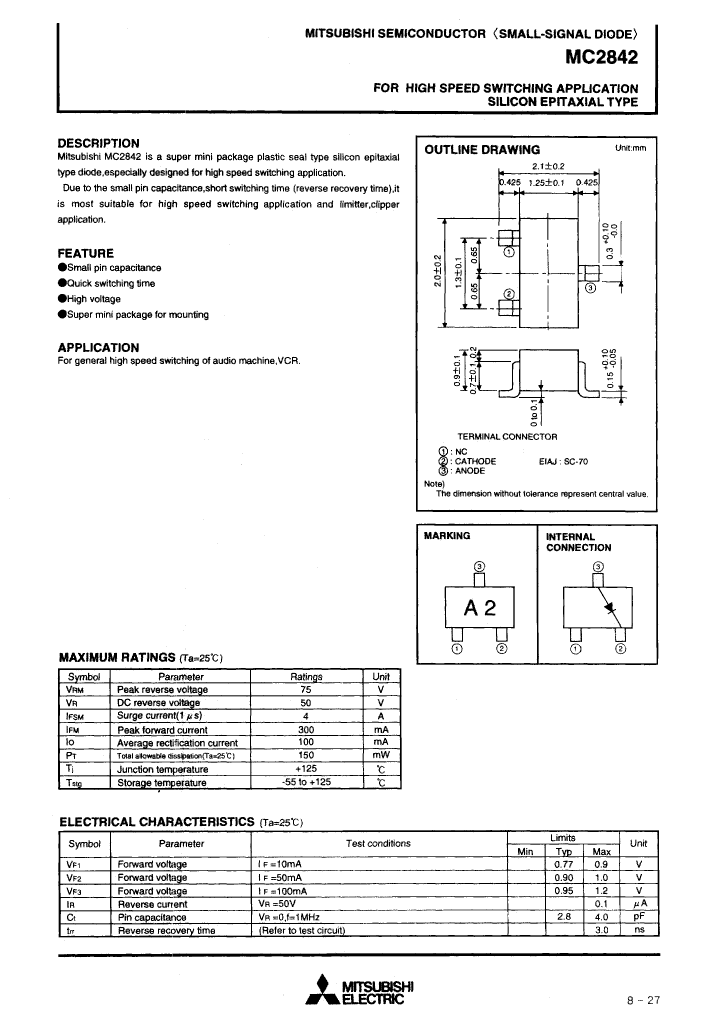

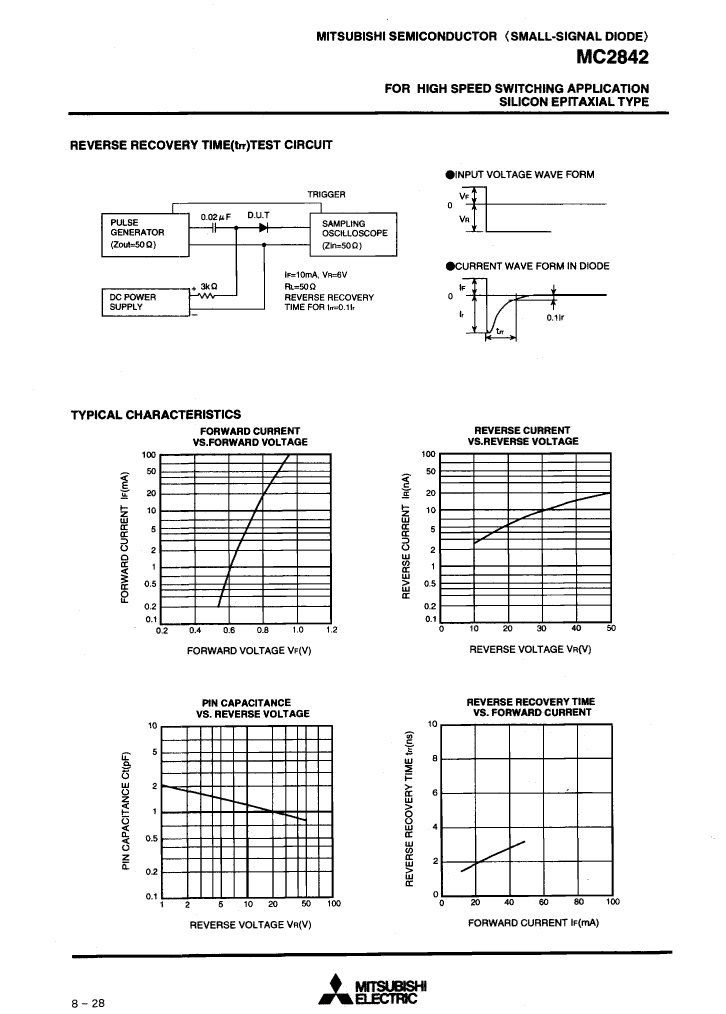

MC2842-13-1 datasheet, PDF - EEWORLD Datasheet

MC2842-13-1: DescriptionRectifier Diode, 1 Element, 0.1A, Silicon, PLASTIC, SC-62, SUPERMINI-3; CategoryDiscrete semiconductor diode; File Size72KB，2 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

MC2842-13-1 Overview

Rectifier Diode, 1 Element, 0.1A, Silicon, PLASTIC, SC-62, SUPERMINI-3

Parameter Name	Attribute value
Maker	Mitsubishi
Parts packaging code	SC-62
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH SPEED SWITCH
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Maximum output current	0.1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.15 W
Certification status	Not Qualified
Maximum reverse recovery time	0.003 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL

	MC2842-13-1	MC2842-11-1	MC2842-T13-1	MC2842-T11-1
Description	Rectifier Diode, 1 Element, 0.1A, Silicon, PLASTIC, SC-62, SUPERMINI-3	Rectifier Diode, 1 Element, 0.1A, Silicon, PLASTIC, SC-70, SUPERMINI-3	Rectifier Diode, 1 Element, 0.1A, Silicon, PLASTIC, SC-62, SUPERMINI-3	Rectifier Diode, 1 Element, 0.1A, Silicon, PLASTIC, SC-70, SUPERMINI-3
Parts packaging code	SC-62	SC-70	SC-62	SC-70
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Contacts	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Maximum output current	0.1 A	0.1 A	0.1 A	0.1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.15 W	0.15 W	0.15 W	0.15 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse recovery time	0.003 µs	0.003 µs	0.003 µs	0.003 µs
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
