PHT-148-04-L-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PHT-148-04-L-S

PHT-148-04-L-S: DescriptionBoard Connector, 48 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size726KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

PHT-148-04-L-S Overview

Board Connector, 48 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, ROHS COMPLIANT

PHT-148-04-L-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
body width	0.098 inch
subject depth	0.4 inch
body length	4.8 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	4.8 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	48

Preview

Download Datasheet

View All

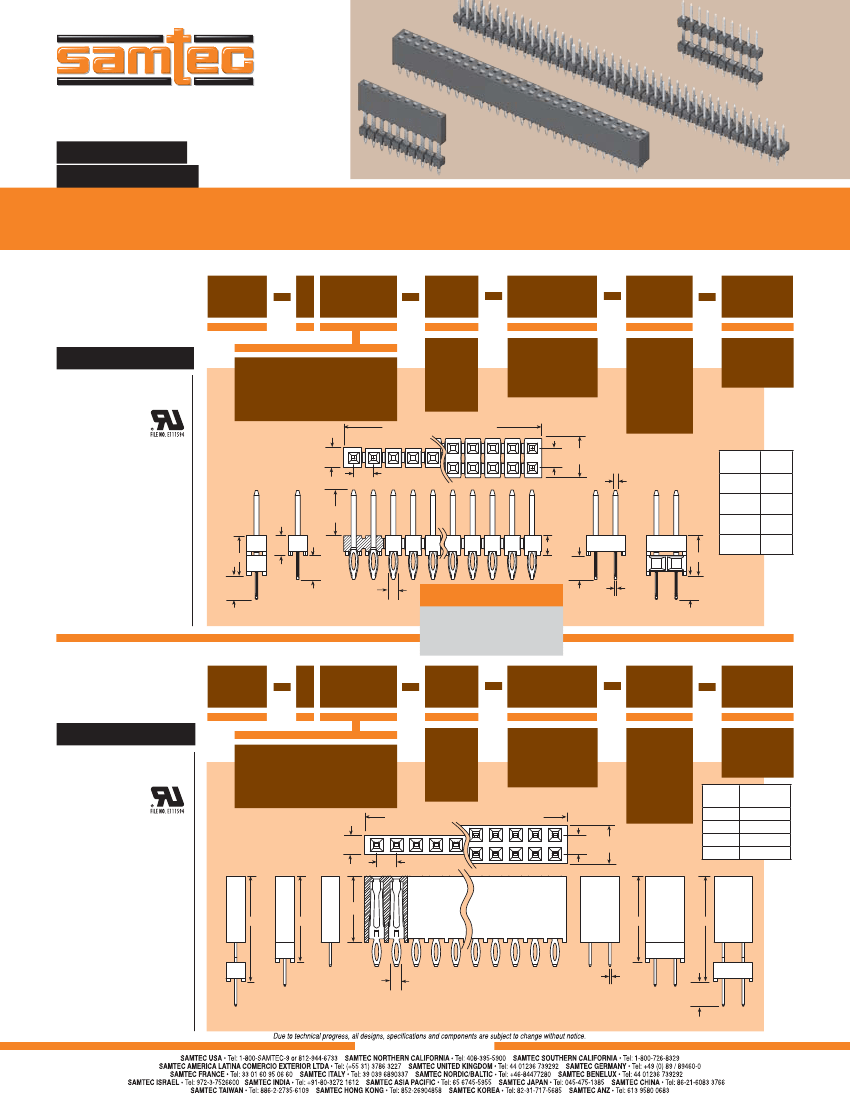

F-213

PHT–110–04–L–S

PHF–130–01–L–D

(2,54 mm) .100"

PHT, PHF SERIES

PHF–110–04–L–S

PHT–140–01–L–D

PRESS FIT HEADERS & SOCKETS

Mates with:

SSW, SSQ, ESW, ESQ,

BCS, BSW, IDSD, IDSS,

CES, SLW, PHF, SSM,

CLH, SMSD, SMSS

PHT

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?PHT

Insulator Material:

Liquid Crystal

Polymer

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating:

2.9A per contact @

30°C temperature rise

Operating Temp Range:

-55°C to +125°C with Gold

RoHS Compliant:

Yes

–L

= 10µ" (0,25 µm)

Gold on post,

Matte Tin on tail

–S

= Single

Row

–“XXX”

= Polarized

Position

= (single row only)

02 thru 50

(2,49)

.098

(2,54) .100

–D

100

(2,54) (5,02)

.100 .198

(0,64)

.025

No. of positions x (2,54) .100

= Double

Row

LEAD

STYLE

–01

–02

–03

(2,54)

.100

(5,08)

.200

(7,62)

.300

(10,16)

.400

(5,84)

.230

(3,10)

.122

(3,10)

.122

–04

(3,10)

.122

(0,31)

.012

(3,10)

.122

Processing:

Contact ipg@samtec.com

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

STYLE

–01

(1,19)

.047

ALSO AVAILABLE

• Other plating options.

• Press ﬁt tooling available.

Call Samtec.

STYLE

–02, –03 & –04

STYLE

–01

STYLE

–02, –03 & –04

Mates With:

TSW, MTSW, MTLW, LCW,

EW, ZW, TSS, ZSS, TSM,

TSSH, PHT, DW, HW

PHF

NO. PINS

PER ROW

LEAD

STYLE

Specify

LEAD

STYLE

from

chart

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?PHF

Insulator Material:

Liquid Crystal

Polymer

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating:

2.9A per contact @

30°C temperature rise

Operating Temp Range:

-55°C to +125°C with Gold

Contact Resistance:

10mΩ

Insertion Depth:

(3,68 mm) .145" to

(6,35 mm) .250"

RoHS Compliant:

Yes

–L

= 10µ" (0,25 µm)

Gold on contact,

Matte Tin on tail

= (single row only)

–S

= Single

Row

–“XXX”

= Polarized

Position

LEAD

STYLE

–01

–02

–03

–04

02 thru 50

(2,41)

.095

–D

(2,54) (4,95)

.100 .195

No. of positions x (2,54) .100 + (0,51) .020

= Double

Row

(8,50) .335

(11,05) .435

(13,59) .535

(16,13) .635

(2,54) .100

Processing:

Contact ipg@samtec.com

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

STYLE

–03 & –04

STYLE

–02

STYLE

–01

(1,19)

.047

(0,31)

.012

STYLE

–01

STYLE

.123

–02

(3,12)

STYLE

–03 & –04

WWW.SAMTEC.COM
