LM112D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM112D

LM112D: DescriptionOperational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size143KB，4 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

LM112D Overview

Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14

LM112D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.003 µA
Maximum bias current (IIB) at 25C	0.002 µA
Nominal Common Mode Rejection Ratio	85 dB
frequency compensation	YES
Maximum input offset voltage	3000 µV
JESD-30 code	R-CDIP-T14
JESD-609 code	e0
length	19.431 mm
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-5/+-20 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class C
Maximum seat height	5.08 mm
Maximum slew rate	0.6 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Minimum voltage gain	25000
width	7.62 mm

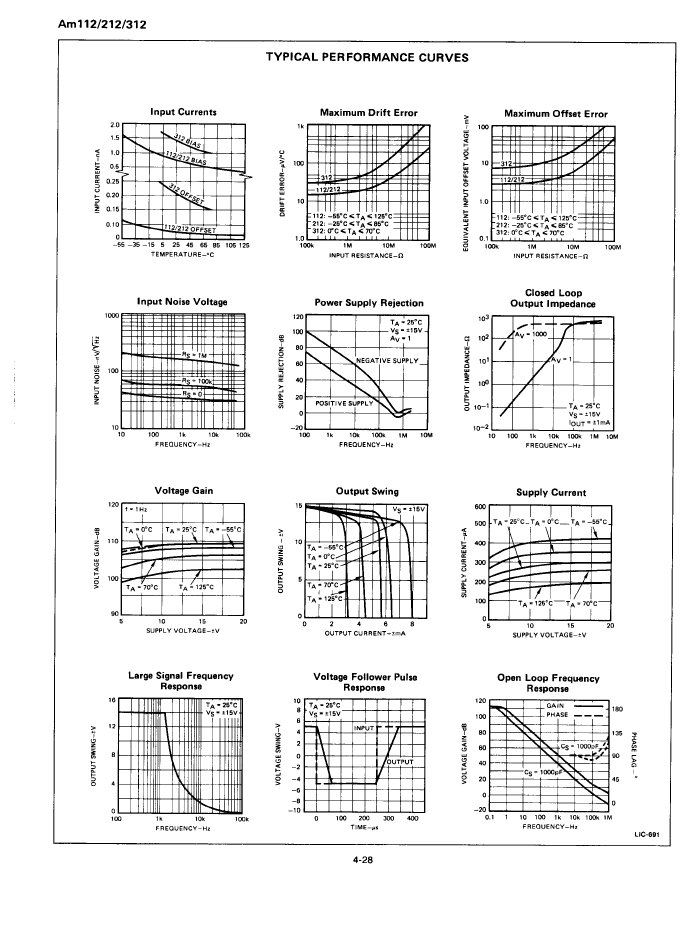

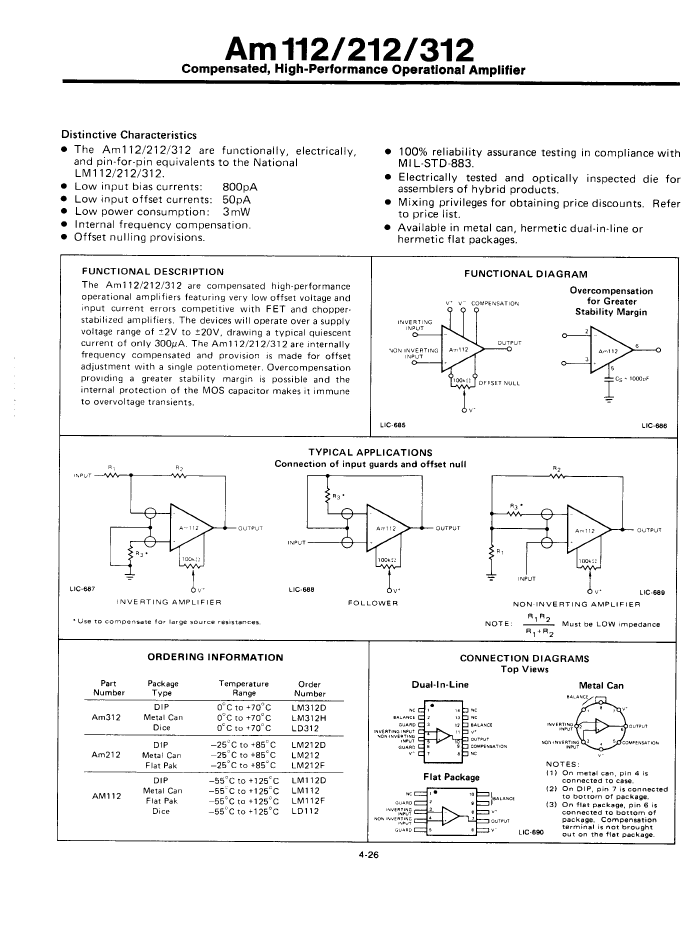

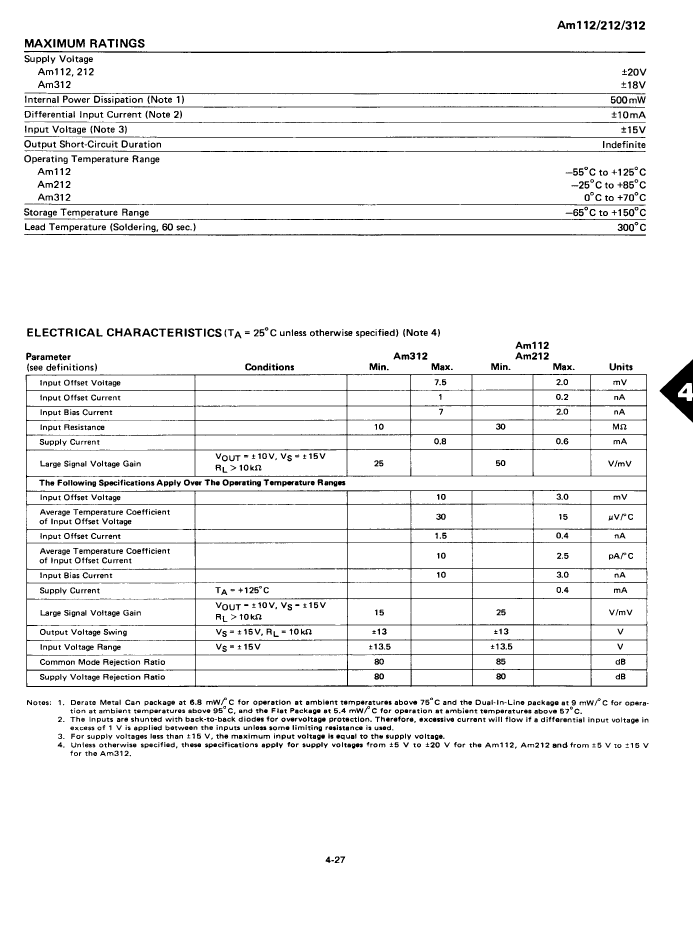

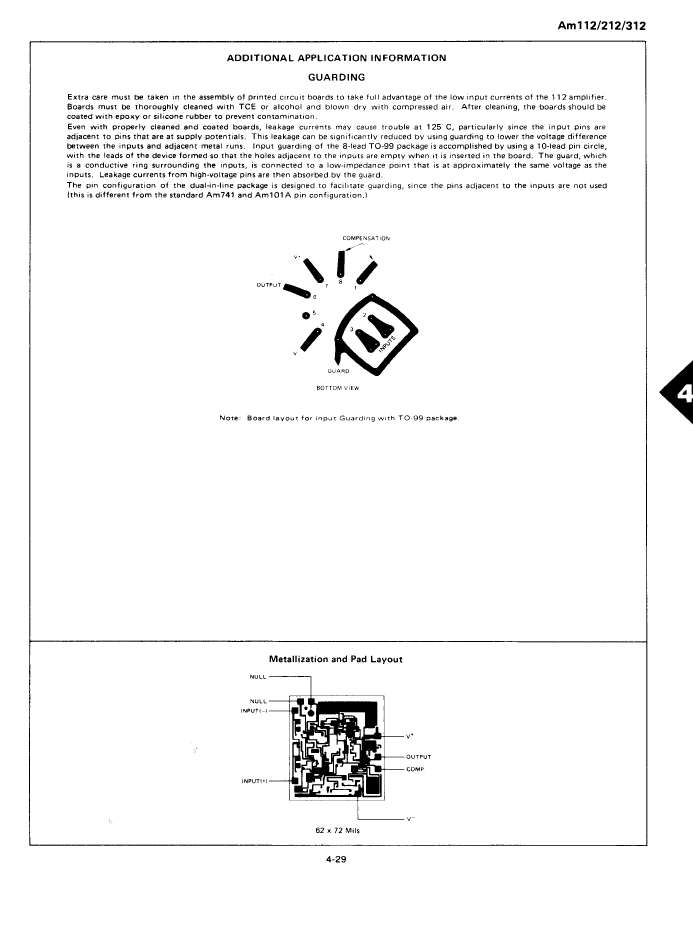

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

LM112D Related Products

	LM112D	LM212D	LD112	LM112F	LM312D	LD312
Description	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, 0.062 X 0.072 INCH, DIE-8	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDFP10, HERMETIC SEALED, CERPACK-10	Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Operational Amplifier, 1 Func, 10000uV Offset-Max, BIPolar, 0.062 X 0.072 INCH, DIE-8
Parts packaging code	DIP	DIP	DIE	DFP	DIP	DIE
package instruction	DIP, DIP14,.3	HERMETIC SEALED, DIP-14	DIE, DIE OR CHIP	DFP, FL10,.3	DIP, DIP14,.3	DIE, DIE OR CHIP
Contacts	14	14	8	10	14	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.003 µA	0.003 µA	0.003 µA	0.003 µA	0.01 µA	0.01 µA
Nominal Common Mode Rejection Ratio	85 dB	85 dB	85 dB	85 dB	80 dB	80 dB
frequency compensation	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	3000 µV	3000 µV	3000 µV	3000 µV	10000 µV	10000 µV
JESD-30 code	R-CDIP-T14	R-CDIP-T14	R-XUUC-N8	R-CDFP-F10	R-CDIP-T14	R-XUUC-N8
low-dissonance	NO	NO	NO	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1
Number of terminals	14	14	8	10	14	8
Maximum operating temperature	125 °C	85 °C	125 °C	125 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-25 °C	-55 °C	-55 °C	-	-
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
encapsulated code	DIP	DIP	DIE	DFP	DIP	DIE
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIE OR CHIP	FL10,.3	DIP14,.3	DIE OR CHIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	UNCASED CHIP	FLATPACK	IN-LINE	UNCASED CHIP
power supply	+-5/+-20 V	+-5/+-20 V	+-5/+-20 V	+-5/+-20 V	+-5/+-15 V	+-5/+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	0.6 mA	0.6 mA	0.6 mA	0.6 mA	0.8 mA	0.8 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	YES	YES	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	OTHER	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	FLAT	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	DUAL	UPPER	DUAL	DUAL	UPPER
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	-
Maker	AMD	-	AMD	AMD	AMD	AMD
Maximum bias current (IIB) at 25C	0.002 µA	0.002 µA	-	0.002 µA	0.007 µA	-
JESD-609 code	e0	e0	-	e0	e0	-
length	19.431 mm	19.431 mm	-	6.1595 mm	19.431 mm	-
Maximum seat height	5.08 mm	5.08 mm	-	2.032 mm	5.08 mm	-
Supply voltage upper limit	20 V	20 V	-	20 V	20 V	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal pitch	2.54 mm	2.54 mm	-	1.27 mm	2.54 mm	-
Minimum voltage gain	25000	25000	-	25000	15000	-
width	7.62 mm	7.62 mm	-	6.35 mm	7.62 mm	-
