Datasheet> All Categories > storage> storage> KM684002AE-17

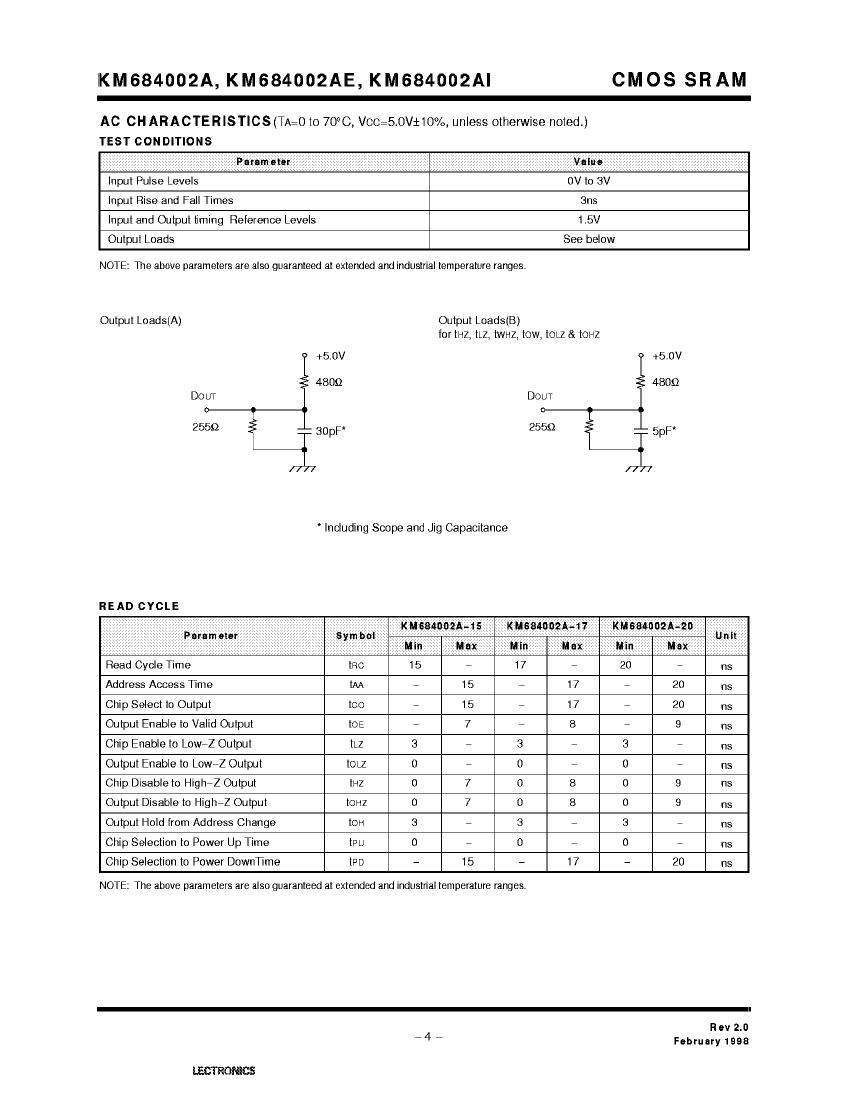

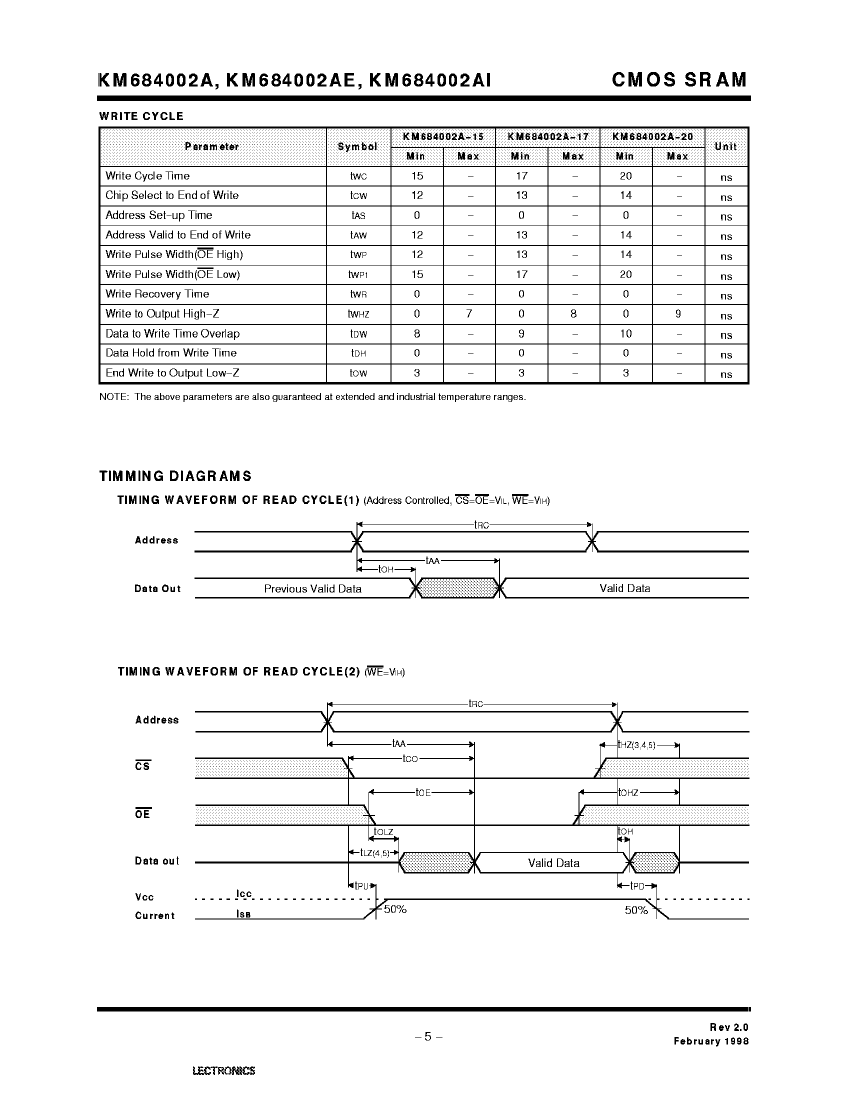

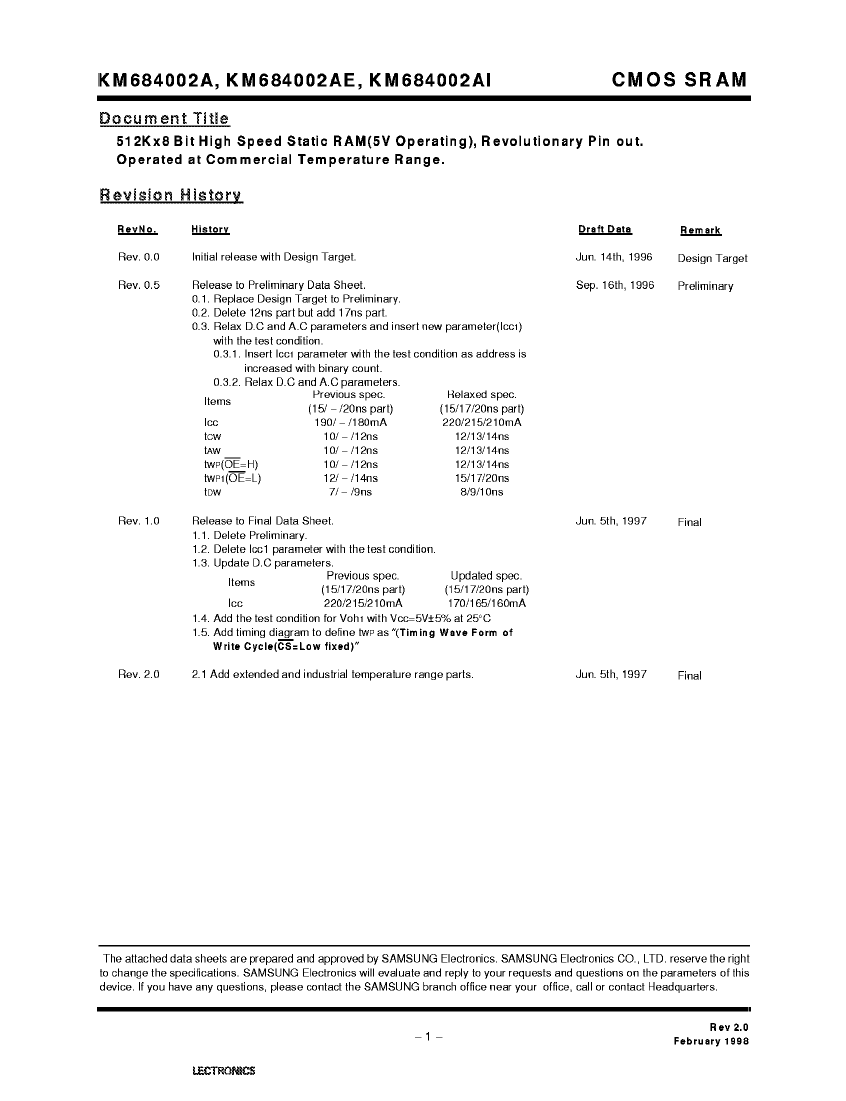

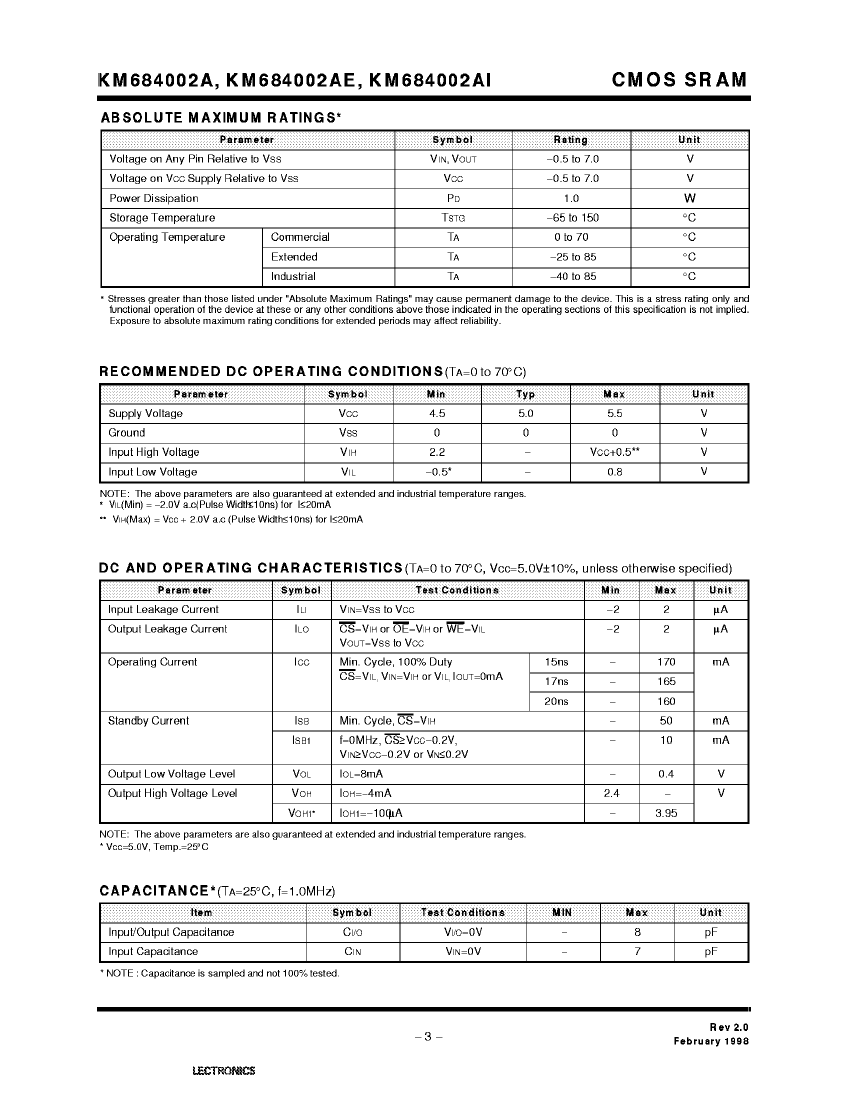

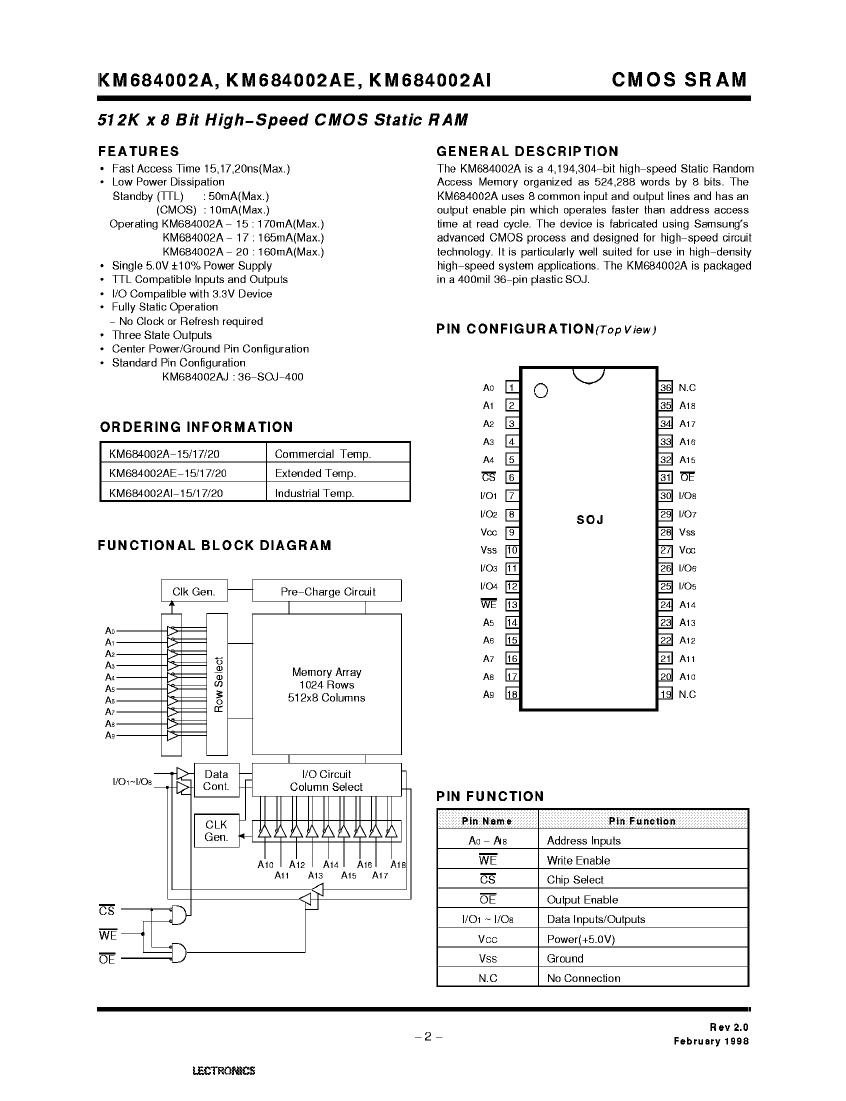

Preview

KM684002AE-17: DescriptionStandard SRAM, 512KX8, 17ns, CMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36; Categorystorage storage; File Size206KB，8 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM684002AE-17 Overview

Standard SRAM, 512KX8, 17ns, CMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36

KM684002AE-17 Parametric

Parameter Name	Attribute value
Maker	SAMSUNG
Parts packaging code	SOJ
package instruction	SOJ,
Contacts	36
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	17 ns
JESD-30 code	R-PDSO-J36
length	23.5 mm
memory density	4194304 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	36
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
organize	512KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	3.76 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
width	10.16 mm

Preview

Download Datasheet

View All

KM684002AE-17 Related Products

	KM684002AE-17	KM684002AI-17	KM684002A-17	KM684002A-20	KM684002AI-15	KM684002AE-15	KM684002A-15	KM684002AE-20	KM684002AI-20
Description	Standard SRAM, 512KX8, 17ns, CMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36	Standard SRAM, 512KX8, 17ns, CMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36	Standard SRAM, 512KX8, 17ns, CMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36	Standard SRAM, 512KX8, 20ns, CMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36	Standard SRAM, 512KX8, 15ns, CMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36	Standard SRAM, 512KX8, 15ns, CMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36	Standard SRAM, 512KX8, 15ns, CMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36	Standard SRAM, 512KX8, 20ns, CMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36	Standard SRAM, 512KX8, 20ns, CMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36
Parts packaging code	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ
package instruction	SOJ,	SOJ,	SOJ,	SOJ,	SOJ,	SOJ,	SOJ,	SOJ,	SOJ,
Contacts	36	36	36	36	36	36	36	36	36
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	17 ns	17 ns	17 ns	20 ns	15 ns	15 ns	15 ns	20 ns	20 ns
JESD-30 code	R-PDSO-J36	R-PDSO-J36	R-PDSO-J36	R-PDSO-J36	R-PDSO-J36	R-PDSO-J36	R-PDSO-J36	R-PDSO-J36	R-PDSO-J36
length	23.5 mm	23.5 mm	23.5 mm	23.5 mm	23.5 mm	23.5 mm	23.5 mm	23.5 mm	23.5 mm
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1
Number of terminals	36	36	36	36	36	36	36	36	36
word count	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000	512000	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	85 °C	85 °C	70 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-40 °C	-	-	-40 °C	-25 °C	-	-25 °C	-40 °C
organize	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	OTHER	COMMERCIAL	OTHER	INDUSTRIAL
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
Maker	SAMSUNG	-	SAMSUNG	-	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG	SAMSUNG
