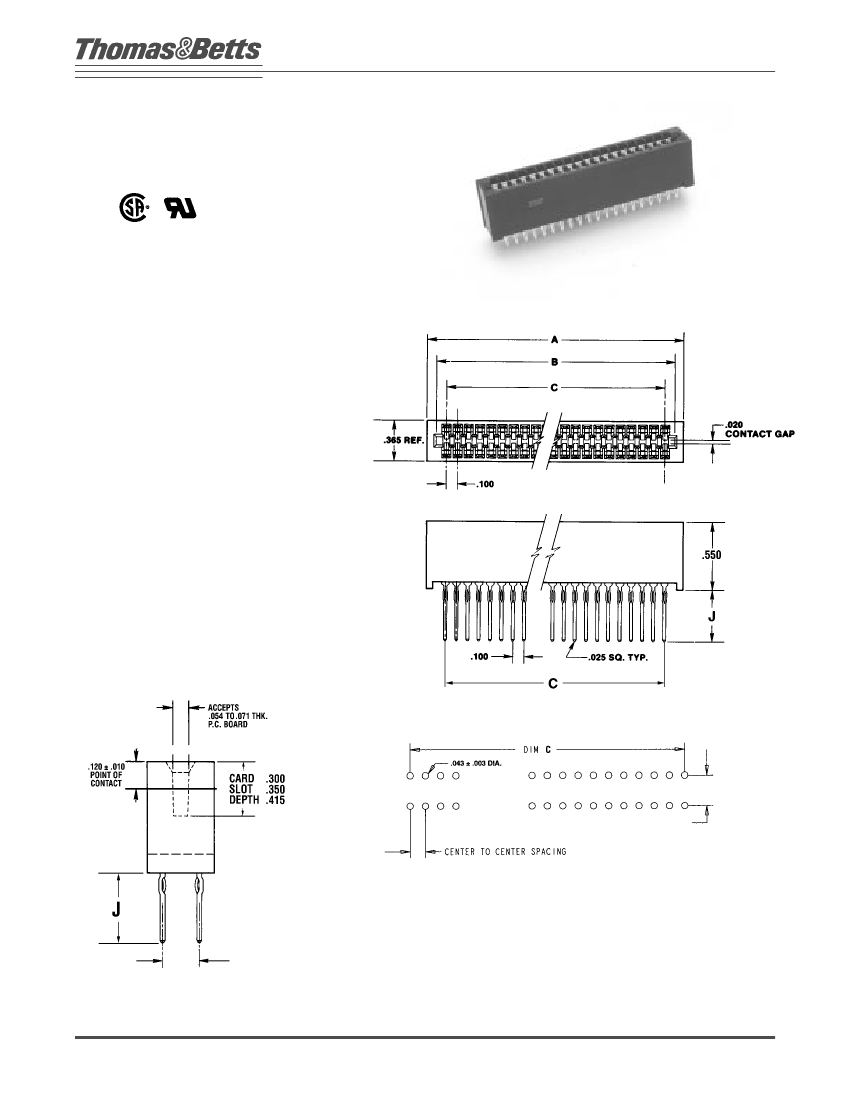

Cardedge
Press-Fit
.100" CENTER-TO-CENTER
.100" ROW-TO-ROW
WITH STANDOFFS
LR49571
E60980
P
HYSICAL
P
ROPERTIES
I
NSULATION
R
ESISTANCE
:
5000 megohms minimum
C
ONTACT
R
ETENTION
I
NTO
PCB:
5lbs. min.
I
NSERTION
F
ORCE
:
10 oz. max. measured with a .0700
± .0001 THK polished blade per MIL-C-21097C
W
ITHDRAWAL
F
ORCE
:
1 oz. min. measured with a
.0540 ± .0001 THK polished test blade per MIL-C-
21097C after sizing 3 times with a .0700 ± .0001
THK blade
I
NSULATOR
B
ODY
:
High Temp. Glass filled
thermoplastic, UL rating 94V-O
C
OLOR
:
Black
S
PRING
C
ONTACT
:
Phosphor Bronze alloy
C
ONTACT
P
LATING
:
50 microinches nickel
underplate with 30 microinches gold in the mating
area, tin/lead on tails, 100 microinches minimum
E
LECTRICAL
P
ROPERTIES
O
PERATING
V
OLTAGE
:
600 VDC (sea level)
C
URRENT
R
ATING
:
3 Amperes
I
NITIAL
C
ONTACT
R
ESISTANCE
:
10 milliohms
E
NVIRONMENTAL
P
ROPERTIES
O
PERATING
T
EMPERATURE
:
-55˚C to +125˚C
T
EMPERATURE
C
YCLING
:
MIL-STD-202 method 107
V
IBRATION
:
MIL-STD-202, method 204
A
PPLICATION
T
OOLING
I
NSERTION
T
OOL
:
Cat. # 98236, see page 357
A
CCESSORIES
P
OLARIZATION
K
EY
:
Cat. # 98014-00, see page 322
D
AUGHTER
C
ARD
See page 323 for layout
.100
.100
.100
NOTE: When using .625 tail lengths, the opposite side of the PCB can be used as a header for Female
Sockets Transition Connectors. (See IDC pages 6-12)
Open ends and open/closed ends are available. ( Consult factory).
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in inches.
338
Cardedge
Press-Fit
O
RDERING
I
NFORMATION
-
.100 CENTER-TO-CENTER/.100 ROW-TO-ROW
CATALOG NUMBER
# OF DUAL
READOUT POS. .300 CARD SLOT DEPTH
TAIL LENGTH .180 (DIM. “J”)
DIMENSIONS
.415 CARD SLOT DEPTH
C1D18PF29043
C1D20PF29043
C1D22PF29043
C1D25PF29043
C1D28PF29043
C1D30PF29043
C1D35PF29043
C1D36PF29043
C1D40PF29043
C1D43PF29043
C1D45PF29043
C1D50PF29043
C1D60PF29043
C1D18PF29045
C1D20PF29045
C1D22PF29045
C1D25PF29045
C1D28PF29045
C1D30PF29045
C1D35PF29045
C1D36PF29045
C1D40PF29045
C1D43PF29045
C1D45PF29045
C1D50PF29045
C1D60PF29045
C1D18PF29047
C1D20PF29047
C1D22PF29047
C1D25PF29047
C1D28PF29047
C1D30PF29047
C1D35PF29047
C1D36PF29047
C1D40PF29047
C1D43PF29047
C1D45PF29047
C1D50PF29047
C1D60PF29047
A
2.034
2.234
2.434
2.734
3.034
3.234
3.734
3.834
4.234
4.534
4.734
5.234
6.234
2.034
2.234
2.434
2.734
3.034
3.234
3.734
3.834
4.234
4.534
4.734
5.234
6.234
2.034
2.234
2.434
2.734
3.034
3.234
3.734
3.834
4.234
4.534
4.734
5.234
6.234
B
1.904
2.104
2.304
2.604
2.904
3.104
3.604
3.704
4.104
4.404
4.604
5.104
6.104
1.904
2.104
2.304
2.604
2.904
3.104
3.604
3.704
4.104
4.404
4.604
5.104
6.104
1.904
2.104
2.304
2.604
2.904
3.104
3.604
3.704
4.104
4.404
4.604
5.104
6.104
C
1.700
1.900
2.100
2.400
2.700
2.900
3.400
3.500
3.900
4.200
4.400
4.900
5.900
1.700
1.900
2.100
2.400
2.700
2.900
3.400
3.500
3.900
4.200
4.400
4.900
5.900
1.700
1.900
2.100
2.400
2.700
2.900
3.400
3.500
3.900
4.200
4.400
4.900
5.900
.350 CARD SLOT DEPTH
C1D18PF29133
C1D20PF29133
C1D22PF29133
C1D25PF29133
C1D28PF29133
C1D30PF29133
C1D35PF29133
C1D36PF29133
C1D40PF29133
C1D43PF29133
C1D45PF29133
C1D50PF29133
C1D60PF29133
C1D18PF29135
C1D20PF29135
C1D22PF29135
C1D25PF29135
C1D28PF29135
C1D30PF29135
C1D35PF29135
C1D36PF29135
C1D40PF29135
C1D43PF29135
C1D45PF29135
C1D50PF29135
C1D60PF29135
C1D18PF29137
C1D20PF29137
C1D22PF29137
C1D25PF29137
C1D28PF29137
C1D30PF29137
C1D35PF29137
C1D36PF29137
C1D40PF29137
C1D43PF29137
C1D45PF29137
C1D50PF29137
C1D60PF29137
18
20
22
25
28
30
35
36
40
43
45
50
60
18
20
22
25
28
30
35
36
40
43
45
50
60
18
20
22
25
28
30
35
36
40
43
45
50
60
C1D18PF29013
C1D20PF29013
C1D22PF29013
C1D25PF29013
C1D28PF29013
C1D30PF29013
C1D35PF29013
C1D36PF29013
C1D40PF29013
C1D43PF29013
C1D45PF29013
C1D50PF29013
C1D60PF29013
C1D18PF29015
C1D20PF29015
C1D22PF29015
C1D25PF29015
C1D28PF29015
C1D30PF29015
C1D35PF29015
C1D36PF29015
C1D40PF29015
C1D43PF29015
C1D45PF29015
C1D50PF29015
C1D60PF29015
C1D18PF29017
C1D20PF29017
C1D22PF29017
C1D25PF29017
C1D28PF29017
C1D30PF29017
C1D35PF29017
C1D36PF29017
C1D40PF29017
C1D43PF29017
C1D45PF29017
C1D50PF29017
C1D60PF29017
TAIL LENGTH .475 (DIM. “J”)
TAIL LENGTH .625 (DIM. “J”)
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in inches.
339
