2GK01-73/2HEX datasheet, PDF - EEWORLD Datasheet

2GK01-73/2HEX: DescriptionToggle Switch, DPST, On-off, Maintained, Quick Connect Terminal, Toggle Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size803KB，2 Pages; ManufacturerCarling Technologies

Download Datasheet Parametric View All

2GK01-73/2HEX Overview

Toggle Switch, DPST, On-off, Maintained, Quick Connect Terminal, Toggle Actuator, Panel Mount

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Executor completed	NICKEL
Actuator length	0.687 inch
Actuator type	TOGGLE
body width	19.05 mm
body height	19.7612 mm
Body length or diameter	33.2232 mm
Casing diameter	0.469 inch
Nozzle length	0.465 inch
Casing type	15/32-32
Contact (AC) maximum rated R load	20A@250VAC
Maximum contact current (AC)	20 A
Contact function	ON-OFF
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1000VRMS V
Electrical life	50000 Cycle(s)
Insulation resistance	100000000 Ω
insulator material	PHENOLIC
Manufacturer's serial number	G
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature
surface mount	NO
Switch action	MAINTAINED
switch function	DPST
Switch type	TOGGLE SWITCH
Terminal length	0.437 inch
Termination type	QUICK CONNECT
Base Number Matches	1

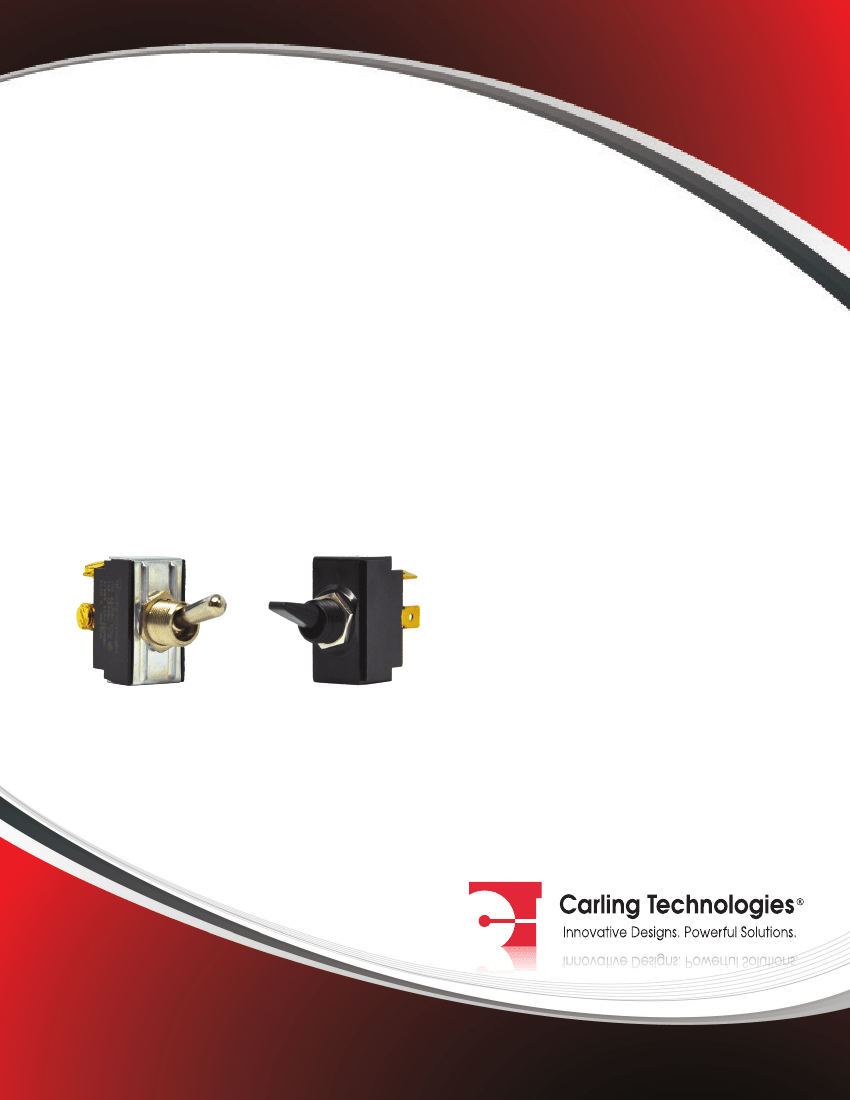

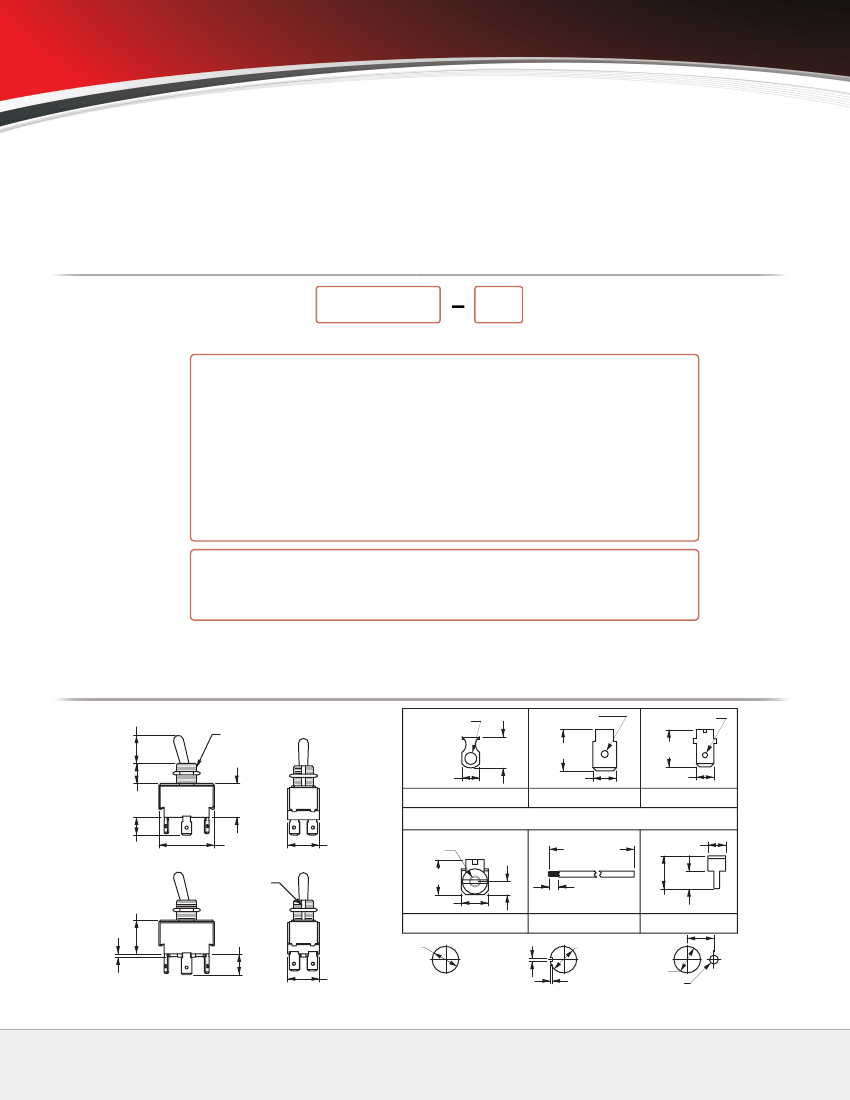

G-Series

Toggle Switches

General purpose workhorses with options tailored to meet most any need. Ratings

to 20A 277VAC, international approvals, various actuator, bushing, termination, and

circuit choices allow this toggle switch to easily integrate into a variety of different

applications. The G-Series has a storied history in the Marine, Food Service, Generator,

Industrial Control, and Office Automation markets and is appropriate for usage in low

voltage DC applications as well.

Carling Technologies, Inc.

60 Johnson Avenue • Plainville, CT 06062-1177

Phone: (860) 793-9281 • Fax: (860) 793-9231

Email: sales@carlingtech.com • www.carlingtech.com
