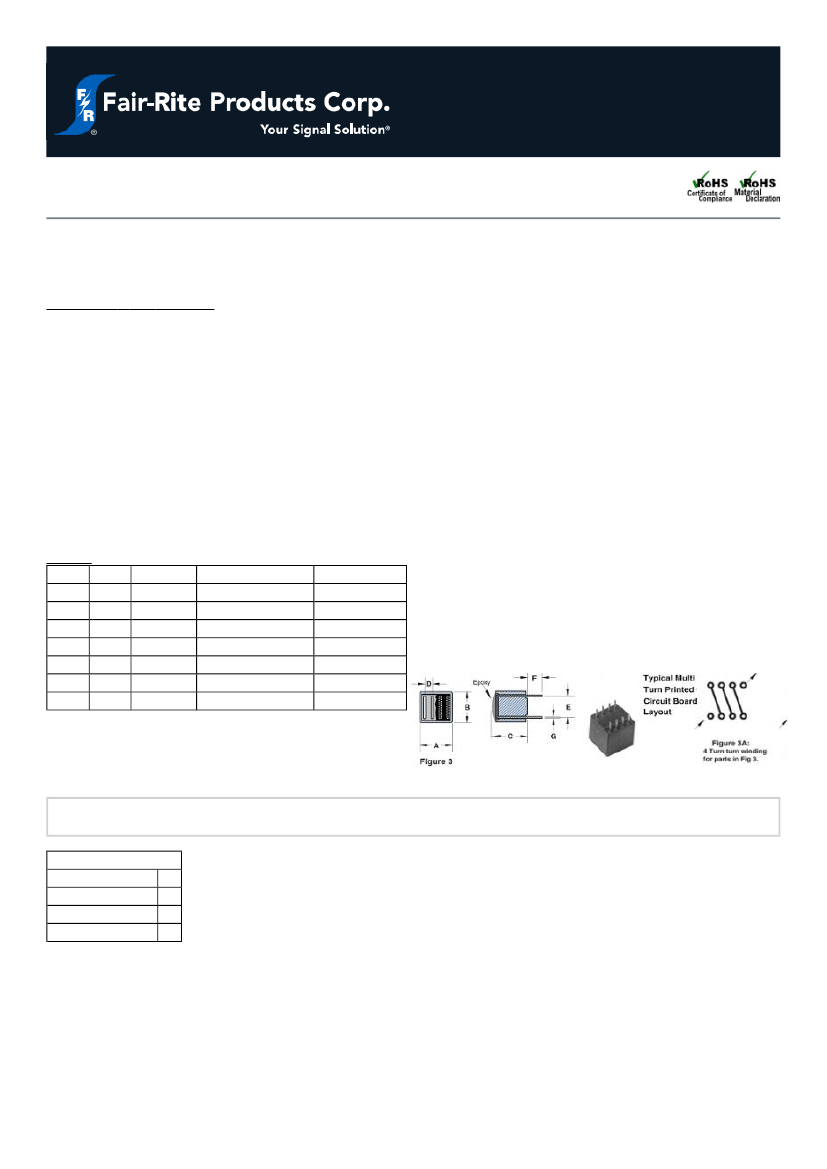

PC Beads (Through Hole)
Part Number: 2944778301
44 PC BEAD
Explanation of Part Numbers:
– Digits 1 & 2 = Product Class
– Digits 3 & 4 = Material Grade
– Last digit 1 = Standard Wire Length 2.4 mm (0.095″) Minimum, 2 = Wire Length 3.1 mm (0.122) Minimum
Multiple single turn or multi- turn printed circuit EMI suppression beads are available in two Fair- Rite materials. The
broadband 44 material and in the high frequency 52 material grade.
Wires are oxygen free high conductivity copper with 100% matte tin plating over a nickel undercoating. Wires on top of the beads
are covered with a layer of epoxy.
Recommended operating and storage temperature for the PC Beads is -55 °C to +125 °C.
PC Beads can be supplied with lower component heights “C”. Also, the wire length “F” can be modified to specific
requirements.
Weight: 6 (g)
Dim mm
A
11.2
B
11.2
C
11.8
D
2.54
E
7.6
F
2.4
G
0.65
mm tol
-0.50
-0.50
Max
±0.10
±0.20
Min
_
nominal inch
0.43
0.43
0.464
0.1
0.3
0.095
0
inch misc.
_
_
Max
_
_
Min
22 AWG
Chart Legend
+ Test frequency

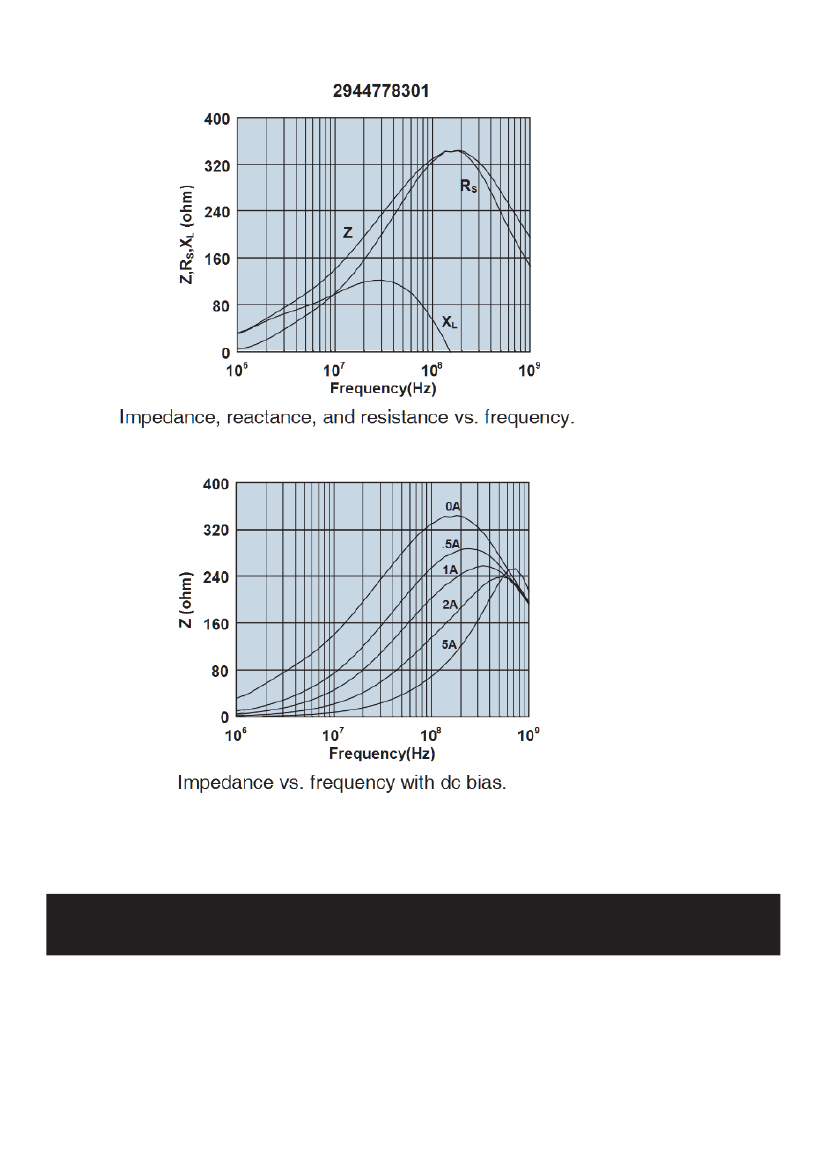

Typical Impedance (Ω)
10 MHz
142
+
25 MHz
219
+
100 MHz
338
250 MHz
335
PC Beads are controlled for impedance only. Minimum impedance values are specified for the + marked frequencies. The
minimum impedance is typically the listed impedance less 20%.
The PC Beads in 44 material are measured on the 4193A Vector Impedance Analyzer. The 52 PC Beads are tested for
impedance on the 4291A RF Impedance Analyzer.
Fair- Rite Products Corp.
•
One Commercial Row, Wallkill, New York 12589-0288
888-324-7748 • 845-895-2055 • Fax: 845-895-2629 • ferrites@fair- rite.com • www.fair- rite.com
