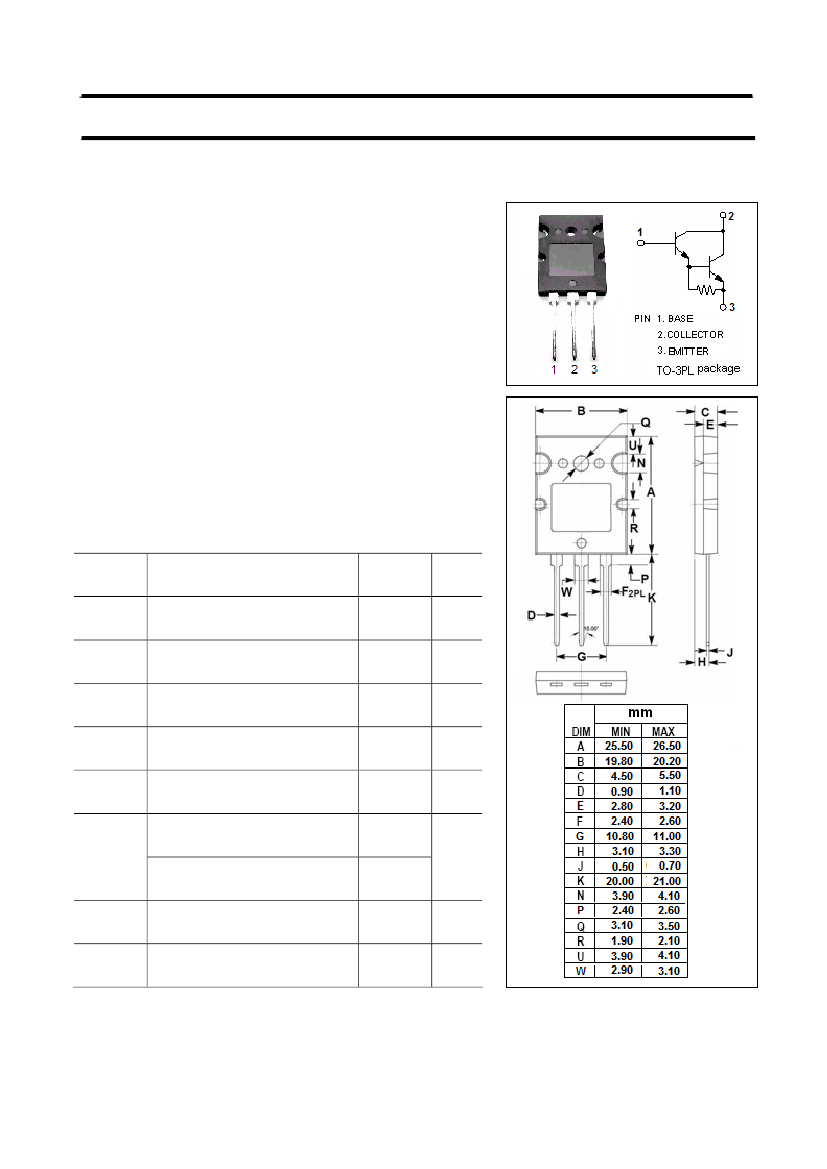

INCHANGE Semiconductor

isc

Product Specification

isc

Silicon NPN Darlington Power Transistor

2SD2276

DESCRIPTION

·Collector-Emitter

Breakdown Voltage-

: V

(BR)CEO

= 140V(Min)

·High

DC Current Gain-

: h

5000( Min.) @(I

= 7A, V

= 5V)

·Low

Collector Saturation Voltage-

: V

CE(sat)

2.5V(Max)@ (I

= 7A, I

= 7mA)

·Complement

to Type 2SB1503

APPLICATIONS

·Designed

for power amplification.

ABSOLUTE MAXIMUM RATINGS(T

=25℃)

SYMBOL

PARAMETER

CBO

Collector-Base Voltage

CEO

Collector-Emitter Voltage

EBO

Emitter-Base Voltage

.cn

.is

VALUE

UNIT

160

140

3.5

Collector Current-Continuous

Collector Current-Peak

Collector Power Dissipation

=25℃

Collector Power Dissipation

=25℃

stg

Junction Temperature

120

150

℃

Storage Temperature

-55~150

isc Website：www.iscsemi.cn
