16H07-660 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 16H07-660

16H07-660: DescriptionElectric Fuse, 16A, 660VAC, 250VDC, Inline/holder,; CategoryCircuit protection Circuit protection; File Size75KB，3 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

16H07-660 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	16H07-660	-	-	View	Buy Now

16H07-660 Overview

Electric Fuse, 16A, 660VAC, 250VDC, Inline/holder,

16H07-660 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	5 weeks 4 days
body height	52 mm
Body length or diameter	22 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	250 J
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	22mm x 52mm
Rated current	16 A
Rated voltage (AC)	660 V
Rated voltage (DC)	250 V
Guideline	BS; IEC
surface mount	NO
Terminal shape	TAB/BLADE
Base Number Matches	1

Preview

Download Datasheet

View All

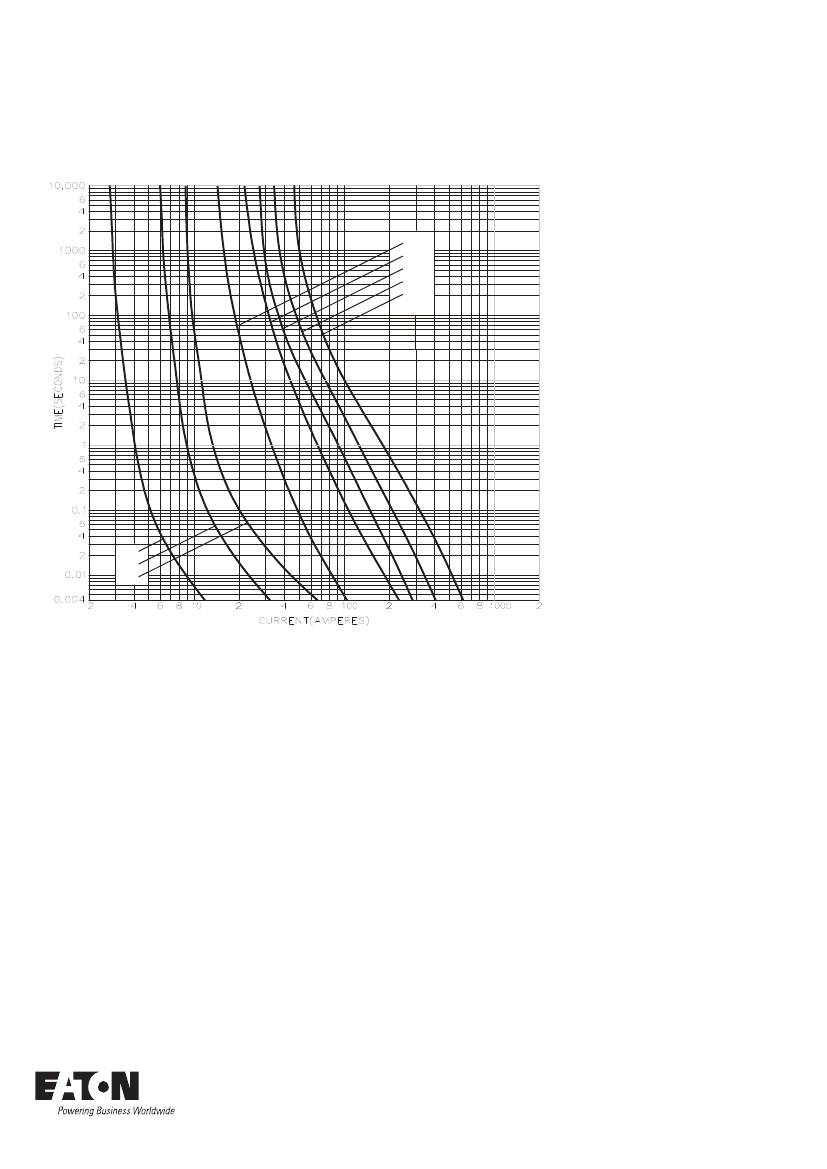

Technical Data

4150

Effective October 2017

Supersedes July 2015

BUSSMANN

SERIES

H07-660 Industrial HRC fuse links

Product description

Eaton’s Bussmann

series H07-660 fuse links

are specifically designed for the protection of

large industrial installations up to 690 V a.c.

Standard features

•

Good peak let-through current limitation

1:1:6 Selective coordination ratio between

“minor” and “major” fuse

gG characteristics for cable protection and

general purpose applications

Power loss values well within the limits of

IEC 60269-2

16H07-660 Related Products

	16H07-660	10H07-660	20H07-660	25H07-660	2H07-660	4H07-660	6H07-660
Description	Electric Fuse, 16A, 660VAC, 250VDC, Inline/holder,	Electric Fuse, 10A, 660VAC, 250VDC, Inline/holder,	Electric Fuse, 20A, 660VAC, 250VDC, Inline/holder,	Electric Fuse, 25A, 660VAC, 250VDC, Inline/holder,	Electric Fuse, 2A, 660VAC, 250VDC, Inline/holder,	Electric Fuse, 4A, 660VAC, 250VDC, Inline/holder,	Electric Fuse, 6A, 660VAC, 250VDC, Inline/holder,
Reach Compliance Code	compli	compli	compli	compli	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	5 weeks 4 days	5 weeks 4 days	5 weeks 4 days	5 weeks 4 days	4 weeks 5 days	4 weeks 5 days	4 weeks 5 days
body height	52 mm	52 mm	52 mm	52 mm	52 mm	52 mm	52 mm
Body length or diameter	22 mm	22 mm	22 mm	22 mm	22 mm	22 mm	22 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Joule integral nominal	250 J	44 J	430 J	850 J	-	5 J	20 J
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
method of packing	BOX	BOX	BOX	BOX	BOX	BOX	BOX
physical size	22mm x 52mm	22mm x 52mm	22mm x 52mm	22mm x 52mm	22mm x 52mm	22mm x 52mm	22mm x 52mm
Rated current	16 A	10 A	20 A	25 A	2 A	4 A	6 A
Rated voltage (AC)	660 V	660 V	660 V	660 V	660 V	660 V	660 V
Rated voltage (DC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Guideline	BS; IEC	BS; IEC	BS; IEC	BS; IEC	BS; IEC	BS; IEC	BS; IEC
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal shape	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE	TAB/BLADE
Base Number Matches	1	1	1	1	1	-	-
