2SK1523-4100 datasheet, PDF - EEWORLD Datasheet

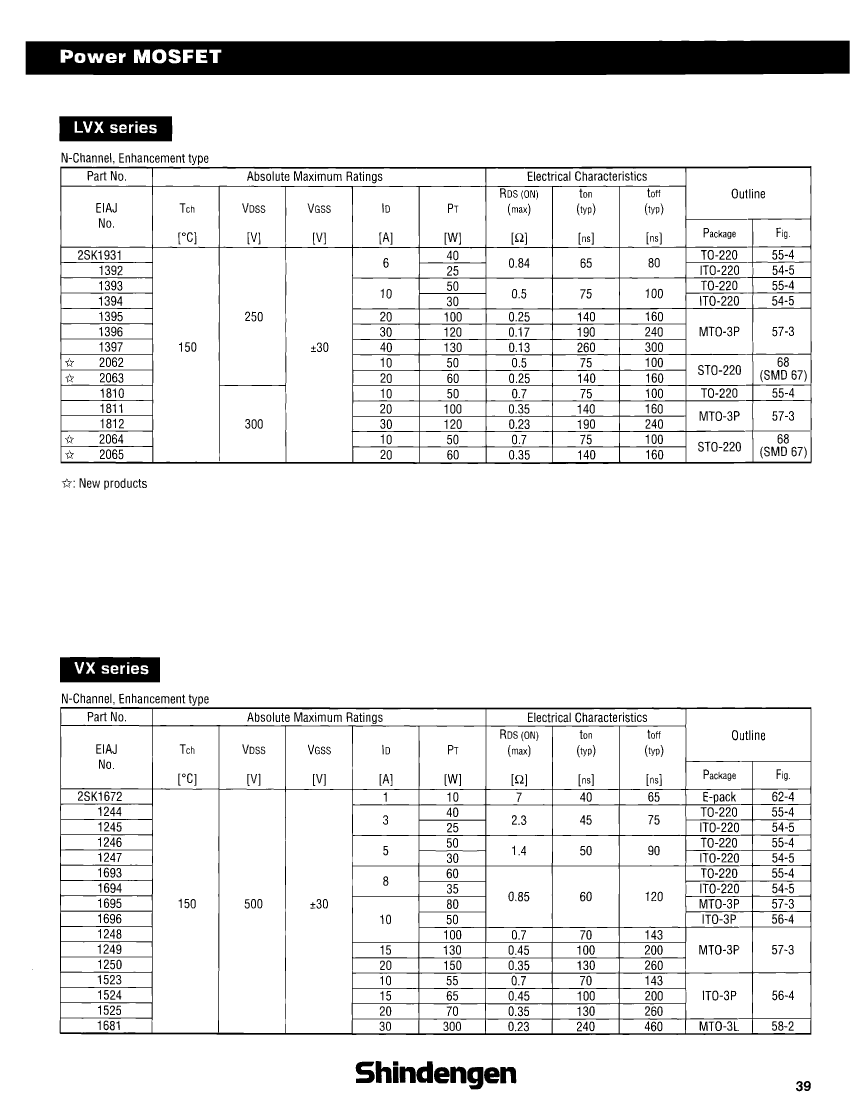

2SK1523-4100: DescriptionPower Field-Effect Transistor, 10A I(D), 500V, 0.7ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, ITO-3P, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size33KB，1 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric View All

2SK1523-4100 Overview

Power Field-Effect Transistor, 10A I(D), 500V, 0.7ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, ITO-3P, 3 PIN

Parameter Name	Attribute value
Parts packaging code	TO-3P
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
Shell connection	ISOLATED
Configuration	SINGLE
Minimum drain-source breakdown voltage	500 V
Maximum drain current (ID)	10 A
Maximum drain-source on-resistance	0.7 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	55 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	143 ns
Maximum opening time (tons)	70 ns
Base Number Matches	1
