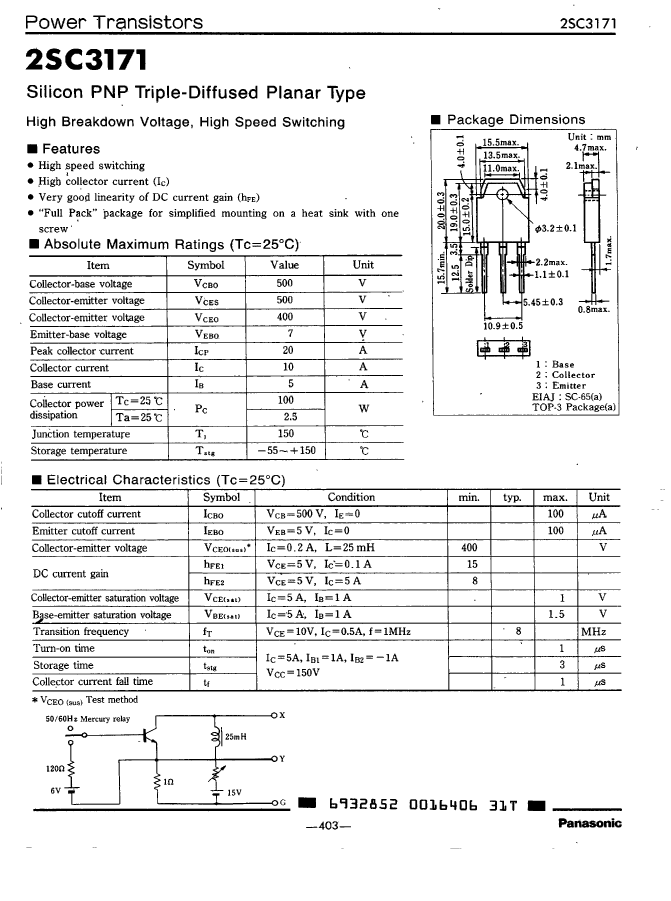

2SC3171 datasheet, PDF - EEWORLD Datasheet

2SC3171: DescriptionPower Bipolar Transistor, 10A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin; CategoryDiscrete semiconductor The transistor; File Size128KB，3 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric View All

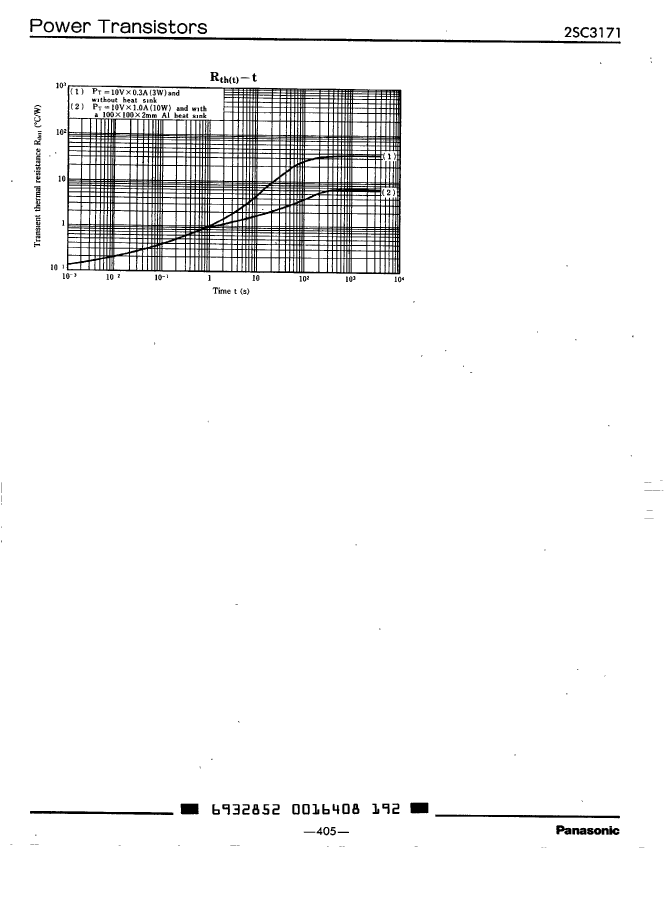

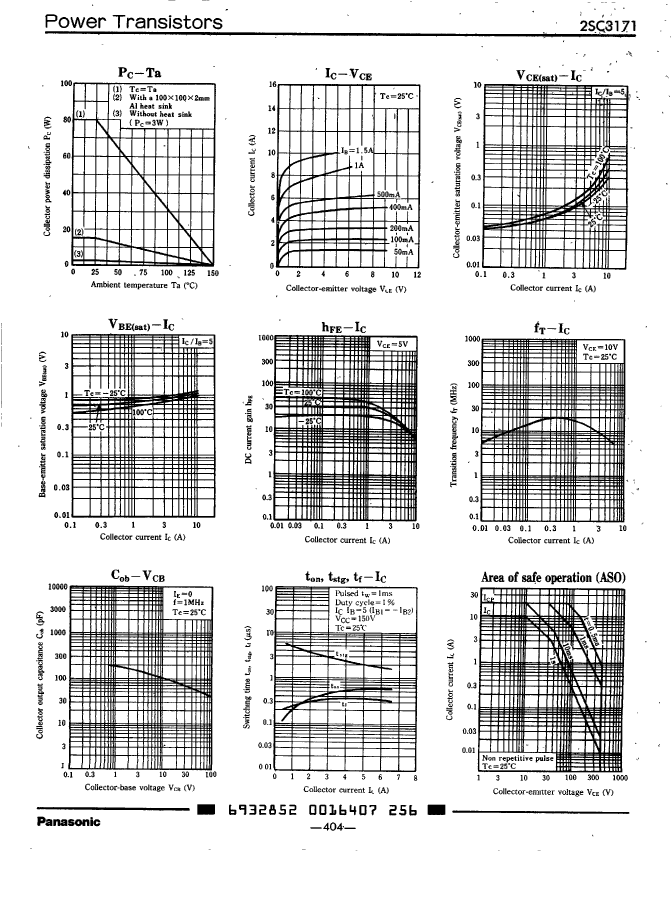

2SC3171 Overview

Power Bipolar Transistor, 10A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknow
Shell connection	ISOLATED
Maximum collector current (IC)	10 A
Collector-emitter maximum voltage	400 V
Configuration	SINGLE
Minimum DC current gain (hFE)	15
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Maximum power dissipation(Abs)	2.5 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer
