84647-1002 datasheet, PDF - EEWORLD Datasheet

84647-1002: DescriptionCard Edge Connector, 168 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size358KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

84647-1002 Overview

Card Edge Connector, 168 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle,

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LATCHING WITH AUDIBLE CLICK
Board mount options	SPLIT BOARD LOCK
body width	0.299 inch
subject depth	1.453 inch
body length	5.906 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD (50)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	LIF N
Insulation resistance	1000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	84647
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	0.063 mm
Plating thickness	15u inch
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	168
UL Flammability Code	94V-0
Evacuation force-minimum value	LIF N

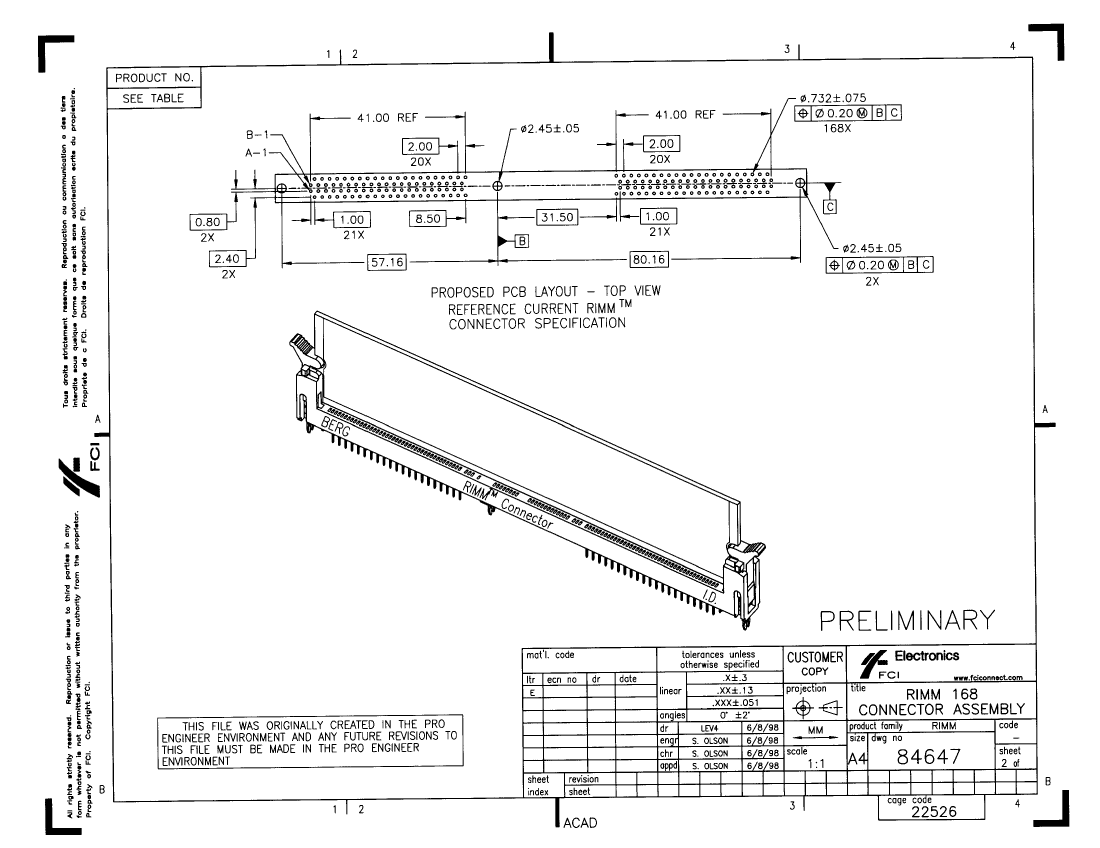

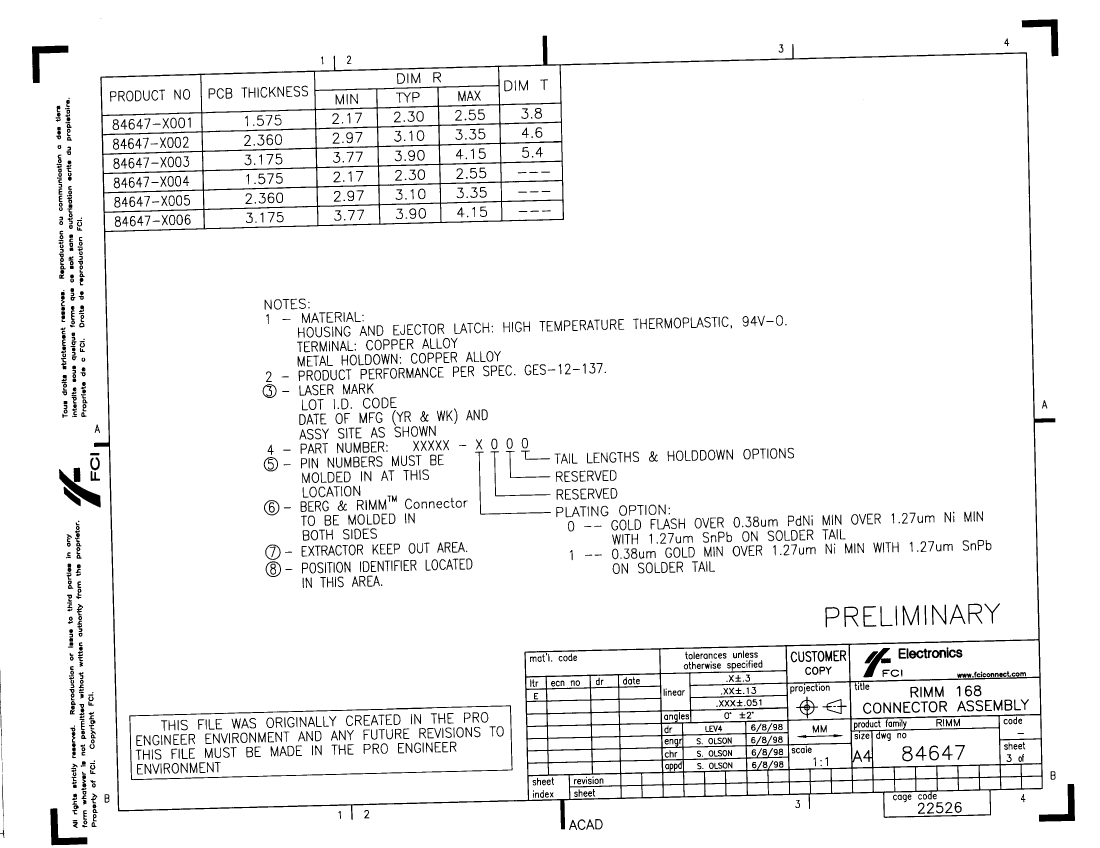

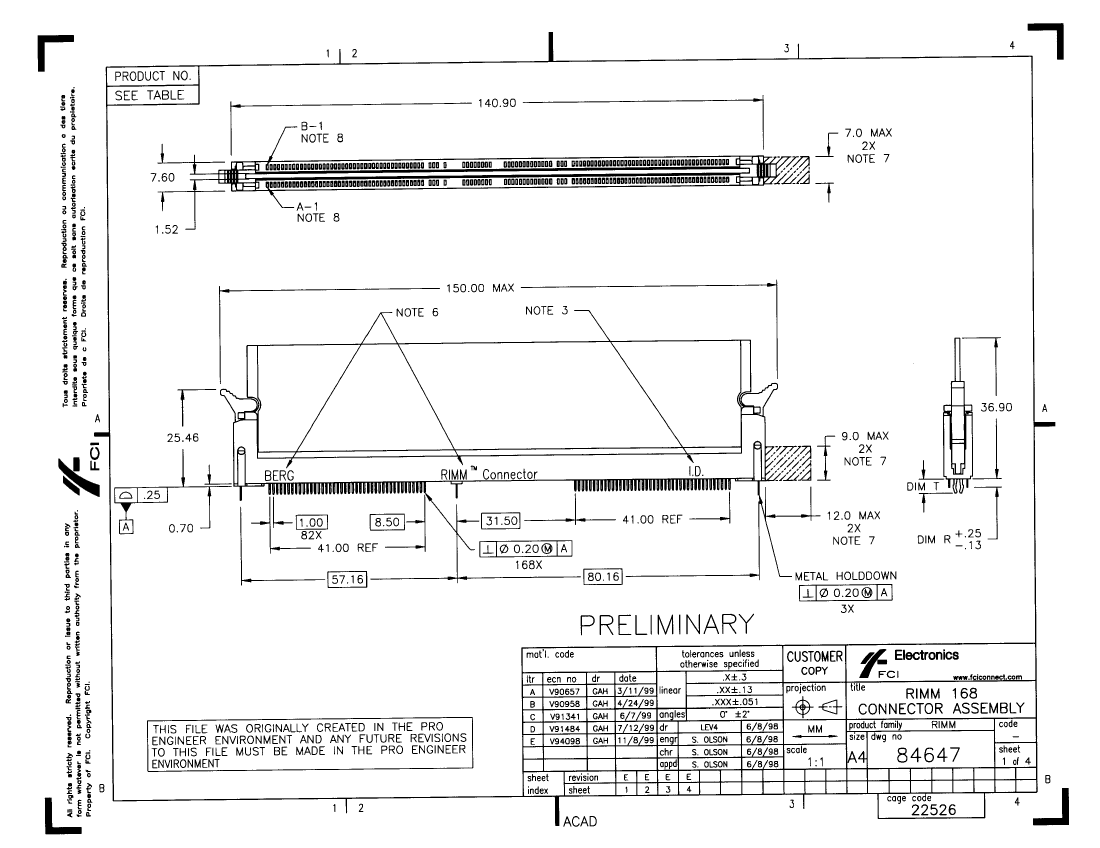

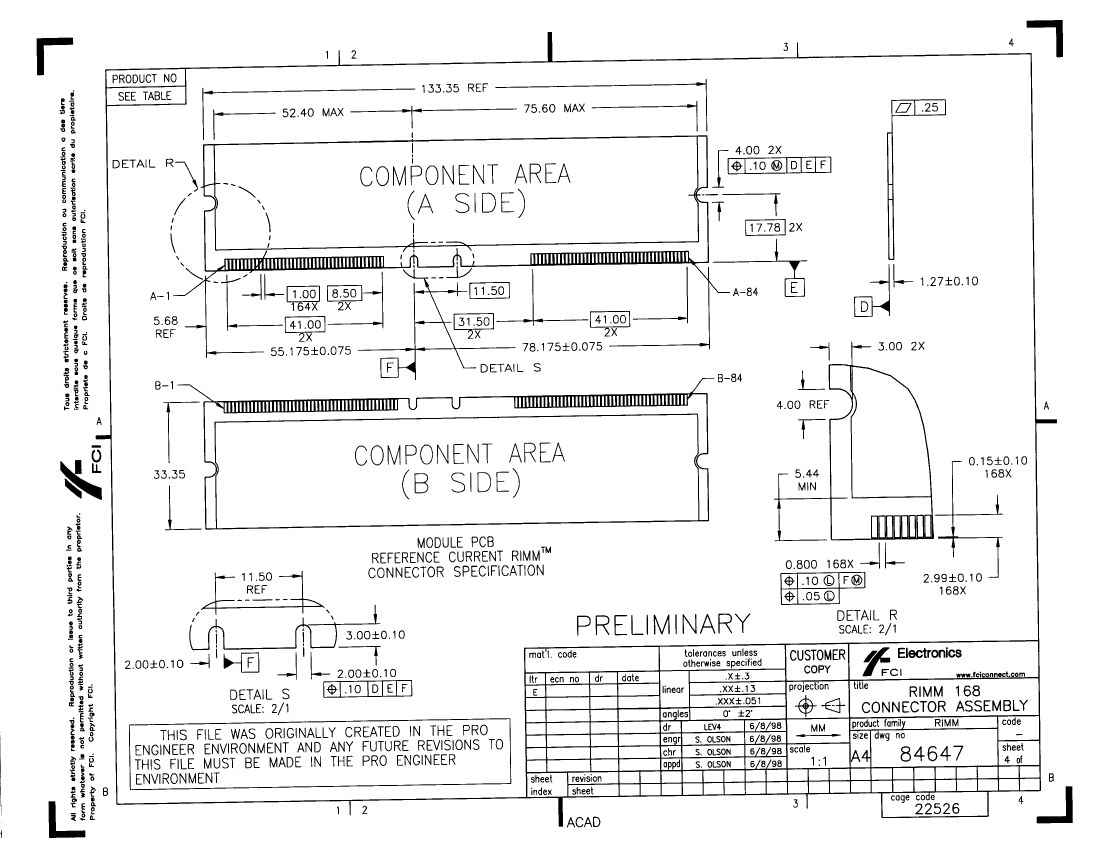

PDM: Rev:E

STATUS:

Released

Printed: Jan 23, 2010
