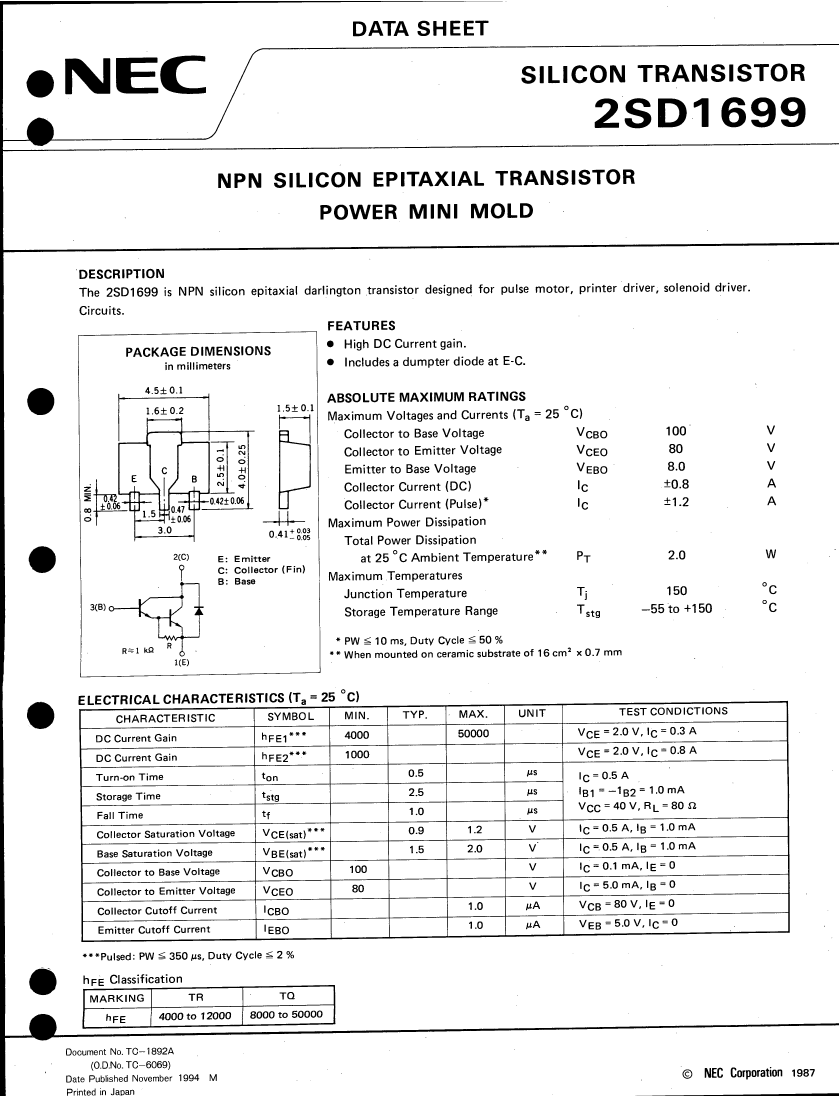

800mA, 80V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, PLASTIC, SC-62, 3 PIN

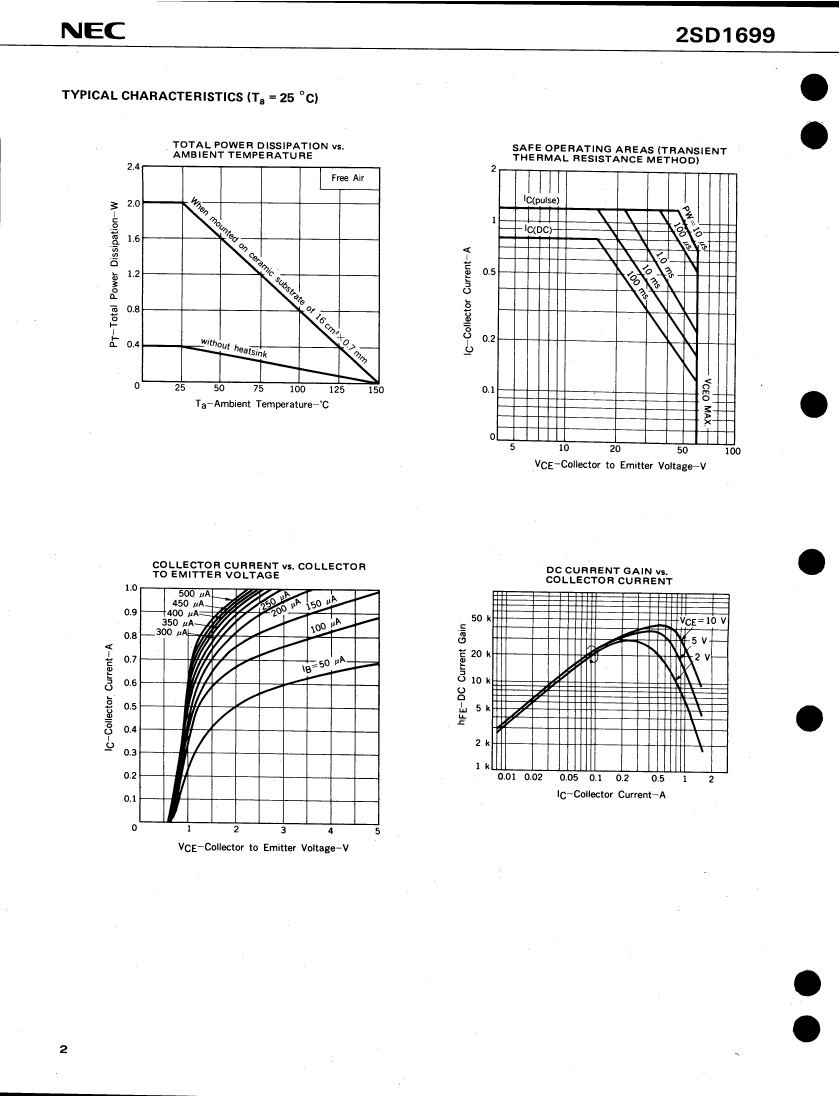

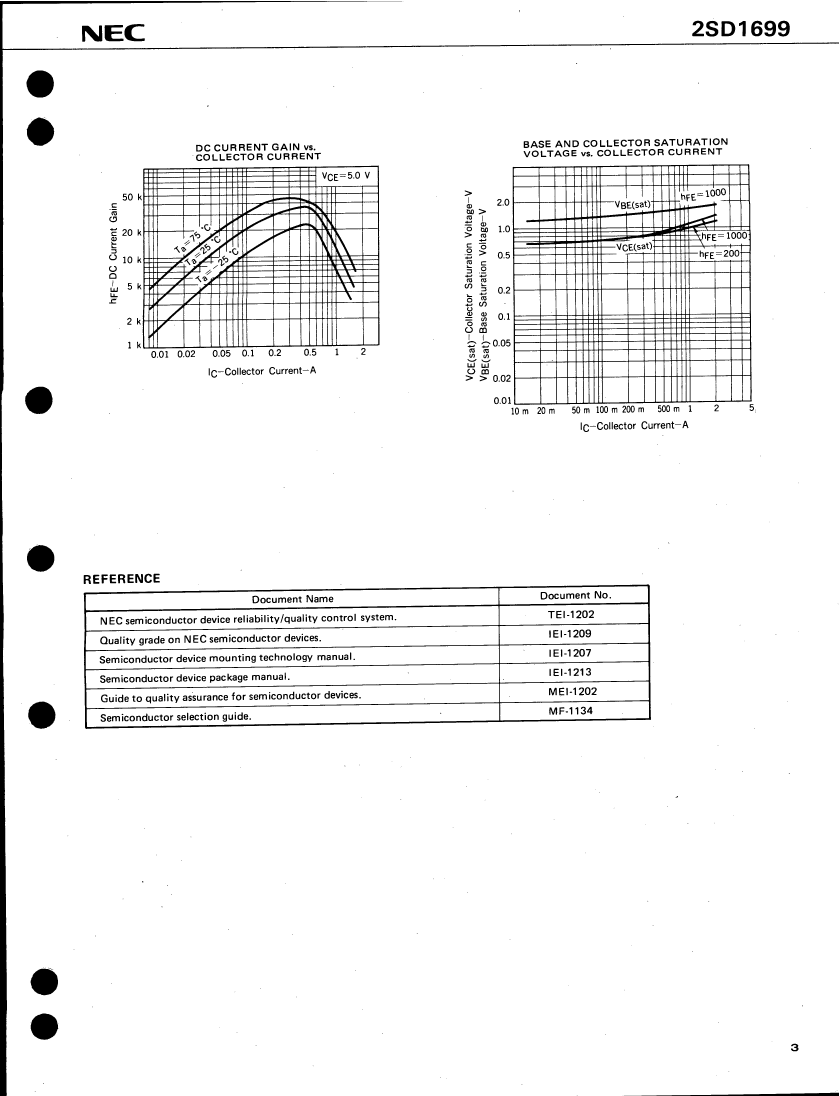

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | SMALL OUTLINE, R-PSSO-F3 |
| Contacts | 3 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Shell connection | COLLECTOR |
| Maximum collector current (IC) | 0.8 A |
| Collector-emitter maximum voltage | 80 V |
| Configuration | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR |
| Minimum DC current gain (hFE) | 4000 |
| JESD-30 code | R-PSSO-F3 |
| Humidity sensitivity level | 1 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 225 |
| Polarity/channel type | NPN |
| Maximum power dissipation(Abs) | 2 W |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal form | FLAT |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Base Number Matches | 1 |
| 2SD1699TR | 2SD1699TR-T1 | 2SD1699TQ | 2SD1699TQ-T1 | |
|---|---|---|---|---|
| Description | 800mA, 80V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, PLASTIC, SC-62, 3 PIN | 800mA, 80V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD PACKAGE-3 | 800mA, 80V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD PACKAGE-3 | 800mA, 80V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD PACKAGE-3 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| package instruction | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 | SMALL OUTLINE, R-PSSO-F3 |
| Contacts | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknow | unknow | unknow | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Shell connection | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR |
| Maximum collector current (IC) | 0.8 A | 0.8 A | 0.8 A | 0.8 A |
| Collector-emitter maximum voltage | 80 V | 80 V | 80 V | 80 V |
| Configuration | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR |
| Minimum DC current gain (hFE) | 4000 | 4000 | 8000 | 8000 |
| JESD-30 code | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 |
| Humidity sensitivity level | 1 | 1 | 1 | 1 |
| Number of components | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | 225 | 225 | 225 | 225 |
| Polarity/channel type | NPN | NPN | NPN | NPN |
| Maximum power dissipation(Abs) | 2 W | 2 W | 2 W | 2 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | YES | YES |
| Terminal form | FLAT | FLAT | FLAT | FLAT |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON |
| Base Number Matches | 1 | 1 | 1 | 1 |
